The restriction element defines restrictions on a simpleType definition. More...

#include <Restriction4SimpleType.h>

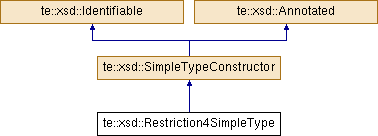

Inheritance diagram for te::xsd::Restriction4SimpleType:

Public Member Functions
void	addFacet (FacetType fType, const std::string &value)
	Adds a new facet to this restriction. More...

void	addFacet (Facet *f)
	Adds a new facet to this restriction. More...

SimpleTypeConstructor *	clone () const
	It creates a clone of the object. More...

Annotation *	getAnnotation () const
	It returns the associated annotation. More...

QName *	getBase () const
	It returns the name of the built-in data type simpleType element that will be restricted. More...

const boost::ptr_vector< Facet > &	getFacets () const
	It returns the list of facets defined on this restriction. More...

std::string *	getId () const
	It returns a pointer (may be NULL) to the object id. More...

Restriction4SimpleType &	operator= (const Restriction4SimpleType &rhs)
	Assignment operator. More...

	Restriction4SimpleType (QName base=0, Annotation ann=0, std::string *id=0)
	Constructor. More...

	Restriction4SimpleType (const Restriction4SimpleType &rhs)
	Copy constructor. More...

void	setAnnotation (Annotation *ann)
	It sets the associated annotation. More...

void	setBase (QName *base)
	It sets the name of the built-in data type simpleType element that will be restricted. More...

void	setId (std::string *id)
	it sets the id. More...

void	setSimpleType (SimpleType *simpleType)
	It sets the simpleType element that will be restricted. More...

	~Restriction4SimpleType ()
	Destructor. More...

Private Attributes
QName *	m_base
	It specifies the name of the built-in data type simpleType element that will be restricted. (Required) More...

boost::ptr_vector< Facet >	m_facetVec
	The list of facets. (Optional) More...

SimpleType *	m_simpleType
	Optional. More...

Detailed Description

The restriction element defines restrictions on a simpleType definition.

Note: Parent elements: simpleType.

Definition at line 52 of file Restriction4SimpleType.h.

Constructor & Destructor Documentation

te::xsd::Restriction4SimpleType::Restriction4SimpleType	(	QName *	base = `0`,
		Annotation *	ann = `0`,
		std::string *	id = `0`
	)

Constructor.

Parameters

base	The name of a built-in data type simpleType element defined in a schema.
ann	An annotation.
id	It specifies a unique ID for the element.

Note: The List object will take the ownership of the given pointers.

Definition at line 29 of file Restriction4SimpleType.cpp.

te::xsd::Restriction4SimpleType::Restriction4SimpleType ( const Restriction4SimpleType & rhs )

Copy constructor.

Parameters

rhs	Right-hand-side object.

Definition at line 35 of file Restriction4SimpleType.cpp.

References m_base.

te::xsd::Restriction4SimpleType::~Restriction4SimpleType ( )

Destructor.

Definition at line 43 of file Restriction4SimpleType.cpp.

Member Function Documentation

void te::xsd::Restriction4SimpleType::addFacet	(	FacetType	fType,
		const std::string &	value
	)

Adds a new facet to this restriction.

Parameters

fType	The facet type.
value	The facet associated value.

Definition at line 86 of file Restriction4SimpleType.cpp.

void te::xsd::Restriction4SimpleType::addFacet ( Facet * f )

Adds a new facet to this restriction.

Parameters

f	The facet that will be added.

Note: The Restriction4SimpleType object will take the ownership of the given pointer.

Definition at line 92 of file Restriction4SimpleType.cpp.

te::xsd::SimpleTypeConstructor * te::xsd::Restriction4SimpleType::clone ( ) const

virtual

It creates a clone of the object.

Returns: A clone of the object. The caller will take the ownership of the returned pointer.

Implements te::xsd::SimpleTypeConstructor.

Definition at line 97 of file Restriction4SimpleType.cpp.

te::xsd::Annotation * te::xsd::Annotated::getAnnotation ( ) const

inherited

It returns the associated annotation.

Returns: The associated annotation.

Definition at line 30 of file Annotated.cpp.

References te::xsd::Annotated::m_annotation.

te::xsd::QName * te::xsd::Restriction4SimpleType::getBase ( ) const

It returns the name of the built-in data type simpleType element that will be restricted.

Returns: The name of the built-in data type simpleType element that will be restricted.

Definition at line 64 of file Restriction4SimpleType.cpp.

const boost::ptr_vector< te::xsd::Facet > & te::xsd::Restriction4SimpleType::getFacets ( ) const

It returns the list of facets defined on this restriction.

Returns: The list of facets defined on this restriction.

Definition at line 69 of file Restriction4SimpleType.cpp.

std::string * te::xsd::Identifiable::getId ( ) const

inherited

It returns a pointer (may be NULL) to the object id.

Definition at line 35 of file Identifiable.cpp.

te::xsd::Restriction4SimpleType & te::xsd::Restriction4SimpleType::operator= ( const Restriction4SimpleType & rhs )

Assignment operator.

Parameters

rhs	Right-hand-side object.

Returns: A reference to this object.

Definition at line 48 of file Restriction4SimpleType.cpp.

References m_base, and te::xsd::SimpleTypeConstructor::operator=().

void te::xsd::Annotated::setAnnotation ( Annotation * ann )

inherited

It sets the associated annotation.

Parameters

ann	The annotation to be associated to the object. The annotated class will take the ownership of the given pointer.

Definition at line 35 of file Annotated.cpp.

Referenced by te::serialize::ReadAnnotated().

void te::xsd::Restriction4SimpleType::setBase ( QName * base )

It sets the name of the built-in data type simpleType element that will be restricted.

Parameters

base	The name of the built-in data type simpleType element that will be restricted.

Definition at line 74 of file Restriction4SimpleType.cpp.

void te::xsd::Identifiable::setId ( std::string * id )

inherited

it sets the id.

Parameters

id	The id to be associated to the object. It will take the ownership of the given string.

Definition at line 29 of file Identifiable.cpp.

References te::xsd::Identifiable::m_id.

Referenced by te::serialize::ReadIdentifiable().

void te::xsd::Restriction4SimpleType::setSimpleType ( SimpleType * simpleType )

It sets the simpleType element that will be restricted.

Parameters

base	The name of the built-in data type simpleType element that will be restricted.

Definition at line 80 of file Restriction4SimpleType.cpp.

Member Data Documentation

QName* te::xsd::Restriction4SimpleType::m_base

private

It specifies the name of the built-in data type simpleType element that will be restricted. (Required)

Definition at line 139 of file Restriction4SimpleType.h.

Referenced by operator=(), and Restriction4SimpleType().

boost::ptr_vector<Facet> te::xsd::Restriction4SimpleType::m_facetVec

private

The list of facets. (Optional)

Definition at line 141 of file Restriction4SimpleType.h.

SimpleType* te::xsd::Restriction4SimpleType::m_simpleType

private

Optional.

Definition at line 140 of file Restriction4SimpleType.h.

The documentation for this class was generated from the following files:

/home/castejon/castejon_files/develop/terralib5/git/src/terralib/xsd/Restriction4SimpleType.h
/home/castejon/castejon_files/develop/terralib5/git/src/terralib/xsd/Restriction4SimpleType.cpp
