A multi thread Qt4 widget to control the display of a set of layers. More...

#include <MultiThreadMapDisplay.h>

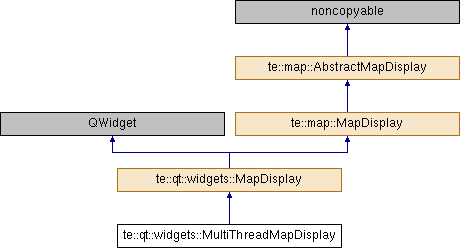

Inheritance diagram for te::qt::widgets::MultiThreadMapDisplay:

Public Types
enum	ResizePolicy { Fixed, Cut, Center }
	Defines the resize policy for map display. More...

Signals
void	displayPaintEvent (QPainter *)

void	displaySridChanged ()

void	drawLayersFinished (const QMap< QString, QString > &errors)
	This signal is emitted when the draw process ends. i.e. when all layers have been drawn. More...

void	extentChanged ()

Public Member Functions
virtual QColor	getBackgroundColor ()
	Gets the map display background color. More...

virtual QPixmap *	getDisplayPixmap () const
	It returns the map display pixmap. More...

virtual QPixmap *	getDraftPixmap () const
	It returns the map display draft pixmap. More...

virtual const te::gm::Envelope &	getExtent () const
	It returns the world extent showned by the MapDisplay. More...

virtual te::map::AlignType	getHAlign () const
	It returns the MapDisplay current horizontal align. More...

virtual int	getSRID () const
	It return the Spatial Reference System used by the Map Display. More...

virtual te::map::AlignType	getVAlign () const
	It returns the MapDisplay current vertical align. More...

bool	isDrawing () const
	Returns if the map display is drawing. More...

virtual void	setAlign (te::map::AlignType h, te::map::AlignType v)
	It will set the align rendering of objects into the map display. Just successive drawings will be affected by this modification. More...

virtual void	setBackgroundColor (const QColor &color)
	Sets the map display background color. More...

virtual void	setLayerList (const std::list< te::map::AbstractLayerPtr > &layers)
	It sets the layer list to be showed in the Map Display. More...

virtual void	setResizeInterval (int msec)
	Sets the timeout interval in milliseconds to redraw on resize event. More...

virtual void	setResizePolicy (const ResizePolicy &policy)
	Sets the resize policy to this map display. More...

void	setSynchronous (bool on)

virtual QPointF	transform (const QPointF &p)
	Transforms the given point, in screen coordinates, to a point in world coordinates. More...

Initializer Methods
Methods related to instantiation and destruction.
	MultiThreadMapDisplay (const QSize &size, const bool &showFeedback=true, QWidget *parent=0, Qt::WindowFlags f=0)
	It constructs an empty multi thread map display with the given dimensions which is a child of parent, with widget flags set to f. More...

	MultiThreadMapDisplay (QWidget *parent=0, const bool &showFeedback=true, Qt::WindowFlags f=0)

	~MultiThreadMapDisplay ()
	Destructor. More...

AbstractMapDisplay Methods
void	setExtent (te::gm::Envelope &e, bool doRefresh=true)
	It sets the world visible area and refreshes the contents in the map display. More...

void	refresh ()
	It updates the contents in the map display. More...

AbstractMapDisplay Methods
virtual void	changeData (te::map::AbstractLayerPtr, int nsrid=TE_UNKNOWN_SRS)

unsigned int	getWidth () const
	It returns the MapDisplay current width in pixels. More...

unsigned int	getHeight () const
	It returns the MapDisplay current height in pixels. More...

double	getWidthMM () const
	It returns the MapDisplay current width in millimeters. More...

double	getHeightMM () const
	It returns the MapDisplay current height in millimeters. More...

virtual void	setSRID (const int &srid, bool doRefresh=true)
	It sets a new Spatial Reference System to be used by the Map Display. More...

Protected Slots
void	onDrawLayerFinished (const int &index, const QImage &image)

virtual void	onResizeTimeout ()

void	showFeedback (const QImage &image)

Protected Member Functions
virtual void	adjustExtent (const QSize &oldSize, const QSize &size)
	It adjusts the map display extent based on resize policy. More...

virtual void	draw (te::map::AbstractLayer *layer, QPainter &painter)
	It displays the given layer. More...

virtual te::qt::widgets::Canvas *	getCanvas (te::map::AbstractLayer *layer, int type=QInternal::Pixmap)
	It retrieves an associated canvas to the given layer. More...

virtual void	paintEvent (QPaintEvent *e)
	It assembles the final image and draws the widget. More...

virtual void	resizeAllCanvas ()
	It resizes all canvas of map display. More...

virtual void	resizeEvent (QResizeEvent *e)
	This event handler receives widget resize events wich are passed in the event parameter. More...

Protected Attributes
QColor	m_backgroundColor
	Background color. More...

QPixmap *	m_displayPixmap
	This pixmap will be the result of all canvas pixmap drawing, i. e., the result of drawing all visible layers. More...

QPixmap *	m_draftPixmap
	The draft pixmap can be used to draw some feedback on map display. More...

te::gm::Envelope	m_extent
	The display extent. More...

te::map::AlignType	m_hAlign
	The display horizontal align. More...

std::map< int, QImage >	m_images
	The set of images built by each thread. It will be used to compose the final result, keeping the layer list order. More...

int	m_interval
	Timeout interval in milliseconds to redraw. More...

bool	m_isDrawing
	A flag that indicates if the map display is drawing. More...

std::map < te::map::AbstractLayer , te::qt::widgets::Canvas >	m_layerCanvasMap
	A map that associates a layer to a canvas. More...

std::list < te::map::AbstractLayerPtr >	m_layerList
	The layer list to be displayed. More...

QMatrix	m_matrix
	Used to convert screen coordinates to world coordinates. More...

QSize	m_oldSize
	Stores the last size of map display on start resize event. More...

ResizePolicy	m_resizePolicy
	Resize policy for this map display. More...

bool	m_showFeedback
	A flag that indicates if the map display will show drawing feedback. More...

int	m_srid
	The display SRS. More...

bool	m_synchronous
	A flag that indicates if the map display is synchronous or asynchronous. More...

std::vector< DrawLayerThread * >	m_threads
	The set of threads used to draw the layer list. More...

QTimer *	m_timer
	Timer to execute redraw on resize action. More...

te::map::AlignType	m_vAlign
	The display vertical align. More...

std::list < te::map::AbstractLayerPtr >	m_visibleLayers
	The set of visible layers. More...

Private Member Functions
void	updateTransform ()

Copy Constructor and Assignment Operator
Copy constructor and assignment operator not allowed.
	MultiThreadMapDisplay (const MultiThreadMapDisplay &rhs)
	Copy constructor not allowed. More...

MultiThreadMapDisplay &	operator= (const MultiThreadMapDisplay &rhs)
	Assignment operator not allowed. More...

Detailed Description

A multi thread Qt4 widget to control the display of a set of layers.

See also: MapDisplay, te::map::AbstractMapDisplay, te::map::MapDisplay

Definition at line 58 of file MultiThreadMapDisplay.h.

Member Enumeration Documentation

enum te::qt::widgets::MapDisplay::ResizePolicy

inherited

Defines the resize policy for map display.

Enumerator
Fixed	Document-me!
Cut	Document-me!
Center	Document-me!

Definition at line 77 of file MapDisplay.h.

Constructor & Destructor Documentation

te::qt::widgets::MultiThreadMapDisplay::MultiThreadMapDisplay	(	const QSize &	size,
		const bool &	showFeedback = `true`,
		QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

It constructs an empty multi thread map display with the given dimensions which is a child of parent, with widget flags set to f.

Parameters

size	The map display size.
showFeedback	A flag that indicates if the map display will show drawing feedback.
parent	The widget's parent.
f	Widget window flags.

Definition at line 37 of file MultiThreadMapDisplay.cpp.

te::qt::widgets::MultiThreadMapDisplay::MultiThreadMapDisplay	(	QWidget *	parent = `0`,
		const bool &	showFeedback = `true`,
		Qt::WindowFlags	f = `0`
	)

Definition at line 45 of file MultiThreadMapDisplay.cpp.

te::qt::widgets::MultiThreadMapDisplay::~MultiThreadMapDisplay ( )

Destructor.

Definition at line 53 of file MultiThreadMapDisplay.cpp.

References te::common::FreeContents().

te::qt::widgets::MultiThreadMapDisplay::MultiThreadMapDisplay ( const MultiThreadMapDisplay & rhs )

private

Copy constructor not allowed.

Parameters

rhs	The right-hand-side copy that would be used to copy from.

Member Function Documentation

void te::qt::widgets::MapDisplay::adjustExtent	(	const QSize &	oldSize,
		const QSize &	size
	)

protectedvirtualinherited

It adjusts the map display extent based on resize policy.

Parameters

oldSize	The size before the resize.
size	The size after the resize.

Definition at line 369 of file MapDisplay.cpp.

References te::qt::widgets::MapDisplay::Center, te::qt::widgets::MapDisplay::Cut, te::qt::widgets::MapDisplay::Fixed, te::gm::Envelope::getCenter(), te::gm::Envelope::m_llx, te::gm::Envelope::m_lly, te::gm::Envelope::m_urx, te::gm::Envelope::m_ury, te::gm::Coord2D::x, and te::gm::Coord2D::y.

void te::qt::widgets::MapDisplay::changeData	(	te::map::AbstractLayerPtr	al,
		int	nsrid = `TE_UNKNOWN_SRS`
	)

virtualinherited

Definition at line 97 of file MapDisplay.cpp.

References te::map::Canvas::clear(), te::map::GetVisibleLayers(), TE_UNKNOWN_SRS, te::gm::Envelope::transform(), and te::gm::Envelope::Union().

void te::qt::widgets::MapDisplay::displayPaintEvent ( QPainter * )

signalinherited

this signal is issued to others draw on this display.

void te::qt::widgets::MapDisplay::displaySridChanged ( )

signalinherited

This signal is sent to others know that the projection was changed.

void te::qt::widgets::MapDisplay::draw	(	te::map::AbstractLayer *	layer,
		QPainter &	painter
	)

protectedvirtualinherited

It displays the given layer.

Parameters

layer	The layer that will be drawn.
painter	The painter that will composed the draw result.

Note: This method is called recursively for each child of the given layer.; It may need to retrieve data in order top display the layers.

Definition at line 237 of file MapDisplay.cpp.

References te::map::AbstractLayer::draw(), te::common::TreeItem::getChild(), te::common::TreeItem::getChildrenCount(), te::qt::widgets::Canvas::getDevice(), te::map::AbstractLayer::getVisibility(), and te::map::NOT_VISIBLE.

void te::qt::widgets::MultiThreadMapDisplay::drawLayersFinished ( const QMap< QString, QString > & errors )

signal

This signal is emitted when the draw process ends. i.e. when all layers have been drawn.

Parameters

errors A map that indicates the errors that could be occurred during the draw process. i.e layer id -> error message

Note: The signal parameter maps the layer id (that generated the error) to an error message.; The signal parameter can be empty. It indicates that no error occurred.

void te::qt::widgets::MapDisplay::extentChanged ( )

signalinherited

This signal is emitted when the map display extent changed.

QColor te::qt::widgets::MapDisplay::getBackgroundColor ( )

virtualinherited

Gets the map display background color.

Returns: The map display background color.

Definition at line 333 of file MapDisplay.cpp.

te::qt::widgets::Canvas * te::qt::widgets::MapDisplay::getCanvas	(	te::map::AbstractLayer *	layer,
		int	type = `QInternal::Pixmap`
	)

protectedvirtualinherited

It retrieves an associated canvas to the given layer.

Parameters

layer The layer for wich we want to get an associated canvas.

Note: If there is not a canvas associated to the given layer, one will be created.

Returns: A canvas associated to the layer.

Definition at line 269 of file MapDisplay.cpp.

References te::qt::widgets::Canvas::calcAspectRatio().

QPixmap * te::qt::widgets::MapDisplay::getDisplayPixmap ( ) const

virtualinherited

It returns the map display pixmap.

Returns: The map display pixmap.

Note: The caller of this method will NOT take the ownership of the returned pixmap.

Definition at line 217 of file MapDisplay.cpp.

QPixmap * te::qt::widgets::MapDisplay::getDraftPixmap ( ) const

virtualinherited

It returns the map display draft pixmap.

Returns: The map display draft pixmap.

Note: This pixmap can be used to draw some feedback on map display.; The caller of this method will NOT take the ownership of the returned pixmap.

Definition at line 222 of file MapDisplay.cpp.

Referenced by te::qt::widgets::ClippingWizardPage::drawGeom(), te::qt::widgets::MixtureModelWizardPage::drawMarks(), te::qt::widgets::ROIManagerWidget::drawROISet(), te::qt::widgets::TiePointLocatorWidget::drawTiePoints(), te::qt::widgets::TiePointsLocatorDialog::on_mapDisplay1_extentChanged(), te::qt::widgets::TiePointsLocatorDialog::on_mapDisplay2_extentChanged(), and te::qt::widgets::ROIManagerWidget::onROITreItemClicked().

const te::gm::Envelope & te::map::MapDisplay::getExtent ( ) const

virtualinherited

It returns the world extent showned by the MapDisplay.

Returns: The world extent showned by the MapDisplay or NULL if none is set.

Note: The extent coordinates are in the Map Display SRS.

Implements te::map::AbstractMapDisplay.

Definition at line 63 of file MapDisplay.cpp.

te::map::AlignType te::map::MapDisplay::getHAlign ( ) const

virtualinherited

It returns the MapDisplay current horizontal align.

Returns: The MapDisplay current horizontal align.

Implements te::map::AbstractMapDisplay.

Definition at line 47 of file MapDisplay.cpp.

unsigned int te::qt::widgets::MapDisplay::getHeight ( ) const

virtualinherited

It returns the MapDisplay current height in pixels.

Returns: The MapDisplay current height in pixels.

Implements te::map::AbstractMapDisplay.

Definition at line 196 of file MapDisplay.cpp.

Referenced by te::qt::plugins::edit::ApplicationListener::onApplicationTriggered().

double te::qt::widgets::MapDisplay::getHeightMM ( ) const

virtualinherited

It returns the MapDisplay current height in millimeters.

Returns: The MapDisplay current height in millimeters.

Implements te::map::AbstractMapDisplay.

Definition at line 206 of file MapDisplay.cpp.

int te::map::MapDisplay::getSRID ( ) const

virtualinherited

It return the Spatial Reference System used by the Map Display.

Returns: The Spatial Reference System used by the Map Display.

Implements te::map::AbstractMapDisplay.

Definition at line 73 of file MapDisplay.cpp.

Referenced by te::qt::widgets::Measure::Measure(), te::qt::af::BaseApplication::onLayerFitOnMapDisplayTriggered(), te::qt::af::BaseApplication::onLayerPanToSelectedOnMapDisplayTriggered(), te::qt::widgets::ROIManagerWidget::onPointPicked(), and te::qt::widgets::TimeSliderWidget::TimeSliderWidget().

te::map::AlignType te::map::MapDisplay::getVAlign ( ) const

virtualinherited

It returns the MapDisplay current vertical align.

Returns: The MapDisplay current vertical align.

Implements te::map::AbstractMapDisplay.

Definition at line 52 of file MapDisplay.cpp.

unsigned int te::qt::widgets::MapDisplay::getWidth ( ) const

virtualinherited

It returns the MapDisplay current width in pixels.

Returns: The MapDisplay current width in pixels.

Implements te::map::AbstractMapDisplay.

Definition at line 191 of file MapDisplay.cpp.

Referenced by te::qt::plugins::edit::ApplicationListener::onApplicationTriggered().

double te::qt::widgets::MapDisplay::getWidthMM ( ) const

virtualinherited

It returns the MapDisplay current width in millimeters.

Returns: The MapDisplay current width in millimeters.

Implements te::map::AbstractMapDisplay.

Definition at line 201 of file MapDisplay.cpp.

bool te::qt::widgets::MapDisplay::isDrawing ( ) const

inherited

Returns if the map display is drawing.

Definition at line 343 of file MapDisplay.cpp.

void te::qt::widgets::MultiThreadMapDisplay::onDrawLayerFinished	(	const int &	index,
		const QImage &	image
	)

protectedslot

Definition at line 183 of file MultiThreadMapDisplay.cpp.

References te::qt::widgets::DrawLayerThread::finishedWithSuccess(), te::qt::widgets::DrawLayerThread::getErrorMessage(), te::map::AbstractLayer::getId(), and te::qt::widgets::DrawLayerThread::getLayer().

void te::qt::widgets::MapDisplay::onResizeTimeout ( )

protectedvirtualslotinherited

Definition at line 348 of file MapDisplay.cpp.

Referenced by te::qt::widgets::MapDisplay::MapDisplay().

MultiThreadMapDisplay& te::qt::widgets::MultiThreadMapDisplay::operator= ( const MultiThreadMapDisplay & rhs )

private

Assignment operator not allowed.

Parameters

rhs	The right-hand-side copy that would be used to copy from.

Returns: A reference to this object.

void te::qt::widgets::MapDisplay::paintEvent ( QPaintEvent * e )

protectedvirtualinherited

It assembles the final image and draws the widget.

Parameters

e	The event received by this widget.

Definition at line 294 of file MapDisplay.cpp.

void te::qt::widgets::MultiThreadMapDisplay::refresh ( )

virtual

It updates the contents in the map display.

Reimplemented from te::qt::widgets::MapDisplay.

Definition at line 75 of file MultiThreadMapDisplay.cpp.

References te::map::GetVisibleLayers().

void te::qt::widgets::MapDisplay::resizeAllCanvas ( )

protectedvirtualinherited

It resizes all canvas of map display.

Definition at line 287 of file MapDisplay.cpp.

void te::qt::widgets::MapDisplay::resizeEvent ( QResizeEvent * e )

protectedvirtualinherited

This event handler receives widget resize events wich are passed in the event parameter.

Parameters

e	The resize event.

Definition at line 304 of file MapDisplay.cpp.

void te::map::MapDisplay::setAlign	(	te::map::AlignType	h,
		te::map::AlignType	v
	)

virtualinherited

It will set the align rendering of objects into the map display. Just successive drawings will be affected by this modification.

Parameters

h	The new horizontal align.
v	The new vertical align.

Note: It will not automatically redraw the objects, you must explicit call the setExtent method.

Implements te::map::AbstractMapDisplay.

Definition at line 57 of file MapDisplay.cpp.

void te::qt::widgets::MapDisplay::setBackgroundColor ( const QColor & color )

virtualinherited

Sets the map display background color.

Parameters

color The color.

Definition at line 338 of file MapDisplay.cpp.

Referenced by te::qt::af::MapDisplay::MapDisplay().

void te::qt::widgets::MultiThreadMapDisplay::setExtent	(	te::gm::Envelope &	e,
		bool	doRefresh = `true`
	)

virtual

It sets the world visible area and refreshes the contents in the map display.

If the given area is not proportional to the device width and height, the MapDisplay will change it in order to preserve the aspect ratio.

Parameters

e	The world visible area.
doRefresh	If true the display will refresh its contents.

Precondition: The world coordinates must be in the map display SRS.

Reimplemented from te::qt::widgets::MapDisplay.

Definition at line 58 of file MultiThreadMapDisplay.cpp.

References te::map::MapDisplay::setExtent().

void te::map::MapDisplay::setLayerList ( const std::list< te::map::AbstractLayerPtr > & layers )

virtualinherited

It sets the layer list to be showed in the Map Display.

Parameters

layers The layer list.

Implements te::map::AbstractMapDisplay.

Definition at line 42 of file MapDisplay.cpp.

Referenced by te::qt::widgets::MixtureModelDialog::MixtureModelDialog(), and te::qt::widgets::TiePointsLocatorDialog::TiePointsLocatorDialog().

void te::qt::widgets::MapDisplay::setResizeInterval ( int msec )

virtualinherited

Sets the timeout interval in milliseconds to redraw on resize event.

Parameters

msec	The timeout interval in milliseconds.

Definition at line 232 of file MapDisplay.cpp.

void te::qt::widgets::MapDisplay::setResizePolicy ( const ResizePolicy & policy )

virtualinherited

Sets the resize policy to this map display.

Parameters

policy The resize policy.

Definition at line 227 of file MapDisplay.cpp.

Referenced by te::qt::widgets::EyeBirdMapDisplayWidget::EyeBirdMapDisplayWidget(), te::qt::af::BaseApplication::makeDialog(), te::qt::widgets::MixtureModelDialog::MixtureModelDialog(), te::qt::widgets::RasterNavigatorWidget::RasterNavigatorWidget(), te::qt::widgets::TiePointsLocatorDialog::TiePointsLocatorDialog(), and te::qt::widgets::ZoomInMapDisplayWidget::ZoomInMapDisplayWidget().

void te::qt::widgets::MapDisplay::setSRID	(	const int &	srid,
		bool	doRefresh = `true`
	)

virtualinherited

It sets a new Spatial Reference System to be used by the Map Display.

It will also convert the current envelope coordinates to the new SRS. This may cause changes to the world visible area. In this case, the extent will be updated and new internal transformation function will be calculated.

Parameters

srid	The new Spatial Reference System to be used by the Map Display.
doRefresh	If true the display will refresh its contents.

Reimplemented from te::map::MapDisplay.

Definition at line 211 of file MapDisplay.cpp.

References te::map::MapDisplay::setSRID().

Referenced by te::qt::af::MapDisplay::MapDisplay(), te::qt::widgets::MixtureModelDialog::MixtureModelDialog(), te::qt::af::BaseApplication::onLayerFitOnMapDisplayTriggered(), te::qt::widgets::TiePointsLocatorDialog::TiePointsLocatorDialog(), and te::qt::widgets::TimeSliderWidget::TimeSliderWidget().

void te::qt::widgets::MultiThreadMapDisplay::setSynchronous ( bool on )

Definition at line 135 of file MultiThreadMapDisplay.cpp.

void te::qt::widgets::MultiThreadMapDisplay::showFeedback ( const QImage & image )

protectedslot

Definition at line 174 of file MultiThreadMapDisplay.cpp.

QPointF te::qt::widgets::MultiThreadMapDisplay::transform ( const QPointF & p )

virtual

Transforms the given point, in screen coordinates, to a point in world coordinates.

Parameters

p	A point in screen coordinates.

Returns: The point in world coordinates.

Note: This method will return a null point if the transform can not be done.

Reimplemented from te::qt::widgets::MapDisplay.

Definition at line 127 of file MultiThreadMapDisplay.cpp.

void te::qt::widgets::MultiThreadMapDisplay::updateTransform ( )

private

Definition at line 140 of file MultiThreadMapDisplay.cpp.

Member Data Documentation

QColor te::qt::widgets::MapDisplay::m_backgroundColor

protectedinherited

Background color.

Definition at line 288 of file MapDisplay.h.

Referenced by te::qt::widgets::MapDisplay::MapDisplay().

QPixmap* te::qt::widgets::MapDisplay::m_displayPixmap

protectedinherited

This pixmap will be the result of all canvas pixmap drawing, i. e., the result of drawing all visible layers.

Definition at line 286 of file MapDisplay.h.

Referenced by te::qt::widgets::MapDisplay::MapDisplay().

QPixmap* te::qt::widgets::MapDisplay::m_draftPixmap

protectedinherited

The draft pixmap can be used to draw some feedback on map display.

Definition at line 287 of file MapDisplay.h.

Referenced by te::qt::widgets::MapDisplay::MapDisplay().

te::gm::Envelope te::map::MapDisplay::m_extent

protectedinherited

The display extent.

Definition at line 73 of file MapDisplay.h.

te::map::AlignType te::map::MapDisplay::m_hAlign

protectedinherited

The display horizontal align.

Definition at line 76 of file MapDisplay.h.

std::map<int, QImage> te::qt::widgets::MultiThreadMapDisplay::m_images

protected

The set of images built by each thread. It will be used to compose the final result, keeping the layer list order.

Definition at line 161 of file MultiThreadMapDisplay.h.

int te::qt::widgets::MapDisplay::m_interval

protectedinherited

Timeout interval in milliseconds to redraw.

Definition at line 292 of file MapDisplay.h.

bool te::qt::widgets::MapDisplay::m_isDrawing

protectedinherited

A flag that indicates if the map display is drawing.

Definition at line 293 of file MapDisplay.h.

std::map<te::map::AbstractLayer*, te::qt::widgets::Canvas*> te::qt::widgets::MapDisplay::m_layerCanvasMap

protectedinherited

A map that associates a layer to a canvas.

Definition at line 294 of file MapDisplay.h.

std::list<te::map::AbstractLayerPtr> te::map::MapDisplay::m_layerList

protectedinherited

The layer list to be displayed.

Definition at line 74 of file MapDisplay.h.

QMatrix te::qt::widgets::MultiThreadMapDisplay::m_matrix

protected

Used to convert screen coordinates to world coordinates.

Definition at line 163 of file MultiThreadMapDisplay.h.

QSize te::qt::widgets::MapDisplay::m_oldSize

protectedinherited

Stores the last size of map display on start resize event.

Definition at line 290 of file MapDisplay.h.

ResizePolicy te::qt::widgets::MapDisplay::m_resizePolicy

protectedinherited

Resize policy for this map display.

Definition at line 289 of file MapDisplay.h.

bool te::qt::widgets::MultiThreadMapDisplay::m_showFeedback

protected

A flag that indicates if the map display will show drawing feedback.

Definition at line 162 of file MultiThreadMapDisplay.h.

int te::map::MapDisplay::m_srid

protectedinherited

The display SRS.

Definition at line 75 of file MapDisplay.h.

bool te::qt::widgets::MultiThreadMapDisplay::m_synchronous

protected

A flag that indicates if the map display is synchronous or asynchronous.

Definition at line 164 of file MultiThreadMapDisplay.h.

std::vector<DrawLayerThread*> te::qt::widgets::MultiThreadMapDisplay::m_threads

protected

The set of threads used to draw the layer list.

Definition at line 160 of file MultiThreadMapDisplay.h.

QTimer* te::qt::widgets::MapDisplay::m_timer

protectedinherited

Timer to execute redraw on resize action.

Definition at line 291 of file MapDisplay.h.

Referenced by te::qt::widgets::MapDisplay::MapDisplay().

te::map::AlignType te::map::MapDisplay::m_vAlign

protectedinherited

The display vertical align.

Definition at line 77 of file MapDisplay.h.

std::list<te::map::AbstractLayerPtr> te::qt::widgets::MultiThreadMapDisplay::m_visibleLayers

protected

The set of visible layers.

Definition at line 159 of file MultiThreadMapDisplay.h.

The documentation for this class was generated from the following files:

C:/TL5_2015_release/terralib5/src/terralib/qt/widgets/canvas/MultiThreadMapDisplay.h
C:/TL5_2015_release/terralib5/src/terralib/qt/widgets/canvas/MultiThreadMapDisplay.cpp

Public Types

Signals

Public Member Functions

Protected Slots

Protected Member Functions

Protected Attributes

Private Member Functions

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
