te::qt::widgets::AbstractFillWidgetFactory Class Reference

The abstract factory of widgets used to configure Symbology Enconding Fill element. More...

#include <AbstractFillWidgetFactory.h>

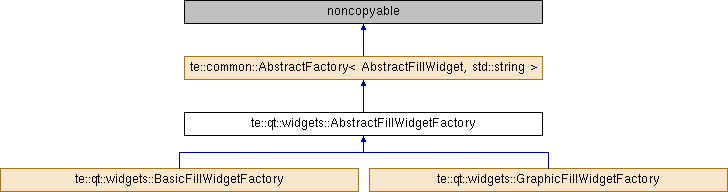

Inheritance diagram for te::qt::widgets::AbstractFillWidgetFactory:

Public Types
typedef FactoryDictionary < AbstractFactory < AbstractFillWidget, std::string, TKEYCOMPARE > , std::string, TKEYCOMPARE >	dictionary_type
typedef AbstractFactory	factory_type

Public Member Functions
const std::string &	getKey () const
	It returns the factory key associated to the concreate factory. More...
Public Destructor
Destructor.
virtual	~AbstractFillWidgetFactory ()
	Virtual destructor. More...

Static Public Member Functions
static const factory_type *	find (const std::string &factoryKey)
static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...
static AbstractFillWidget *	make (const std::string &factoryKey)
	It creates an object with the appropriated factory. More...
static void	RegisteredWidgets (std::vector< std::string > &keys)
	It informs the key of each registered fill widget factory. More...

Protected Member Functions
virtual AbstractFillWidget *	build ()=0
	Concrete factories (derived from this one) must implement this method in order to create objects. More...
Protected Initializers
Initializers.
	AbstractFillWidgetFactory (const std::string &factoryKey)
	It creates the factory. More...

Protected Attributes
std::string	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Detailed Description

The abstract factory of widgets used to configure Symbology Enconding Fill element.

See also

AbstractFactory

Definition at line 53 of file AbstractFillWidgetFactory.h.

Member Typedef Documentation

typedef FactoryDictionary<AbstractFactory<AbstractFillWidget , std::string , TKEYCOMPARE>, std::string , TKEYCOMPARE> te::common::AbstractFactory< AbstractFillWidget , std::string , TKEYCOMPARE >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

typedef AbstractFactory te::common::AbstractFactory< AbstractFillWidget , std::string , TKEYCOMPARE >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

te::qt::widgets::AbstractFillWidgetFactory::~AbstractFillWidgetFactory ( )

virtual

Virtual destructor.

Note

It will automatically unregister the factory from the dictionary.

Definition at line 29 of file AbstractFillWidgetFactory.cpp.

te::qt::widgets::AbstractFillWidgetFactory::AbstractFillWidgetFactory ( const std::string &  factoryKey )

protected

It creates the factory.

The key of a AbstractFillWidgetFactory is a string.

Parameters

factoryKey

The key that identifies the factory.

Definition at line 41 of file AbstractFillWidgetFactory.cpp.

Member Function Documentation

virtual AbstractFillWidget * te::common::AbstractFactory< AbstractFillWidget , std::string , TKEYCOMPARE >::build ( )

protectedpure virtualinherited

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns

It returns an object created by the concrete factory.

Implemented in te::qt::widgets::BasicFillWidgetFactory, and te::qt::widgets::GraphicFillWidgetFactory.

static const factory_type* te::common::AbstractFactory< AbstractFillWidget , std::string , TKEYCOMPARE >::find ( const std::string &  factoryKey )

staticinherited

static dictionary_type& te::common::AbstractFactory< AbstractFillWidget , std::string , TKEYCOMPARE >::getDictionary ( )

staticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns

A reference to the internal dictionary.

const std::string & te::common::AbstractFactory< AbstractFillWidget , std::string , TKEYCOMPARE >::getKey ( ) const

inherited

It returns the factory key associated to the concreate factory.

Returns

The factory key associated to the concreate factory.

static AbstractFillWidget * te::common::AbstractFactory< AbstractFillWidget , std::string , TKEYCOMPARE >::make ( const std::string &  factoryKey )

staticinherited

It creates an object with the appropriated factory.

Parameters

factoryKey

A key that identifies the factory used to build the object.

Returns

It returns a new object created by the given factory.

Exceptions

Exception

If the concrete factory is not specified or the object can not be built for any reason this methiod may throws an exception.

Note

The caller of this method will take the ownership of the returned object.

Referenced by te::qt::widgets::PolygonSymbolizerWidget::PolygonSymbolizerWidget().

void te::qt::widgets::AbstractFillWidgetFactory::RegisteredWidgets ( std::vector< std::string > &  keys )

static

It informs the key of each registered fill widget factory.

Parameters

keys	A pre-created vector of string that will be filled with the keys of each registered fill widget factory.

Note

All registered factories will be consulted.

Definition at line 33 of file AbstractFillWidgetFactory.cpp.

References te::common::FactoryDictionary< TFACTORY, TFACTORYKEY, TKEYCOMPARE >::begin(), te::common::FactoryDictionary< TFACTORY, TFACTORYKEY, TKEYCOMPARE >::end(), and te::common::AbstractFactory< TPRODUCT, TFACTORYKEY, TKEYCOMPARE >::getDictionary().

Referenced by te::qt::widgets::PolygonSymbolizerWidget::PolygonSymbolizerWidget().

Member Data Documentation

std::string te::common::AbstractFactory< AbstractFillWidget , std::string , TKEYCOMPARE >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

---

The documentation for this class was generated from the following files:

• C:/TL5_2015_release/terralib5/src/terralib/qt/widgets/se/AbstractFillWidgetFactory.h
• C:/TL5_2015_release/terralib5/src/terralib/qt/widgets/se/AbstractFillWidgetFactory.cpp
