te::qt::af::ProjectWidgetFactory Class Reference

A factory to build the project frame object. More...

#include <ProjectWidgetFactory.h>

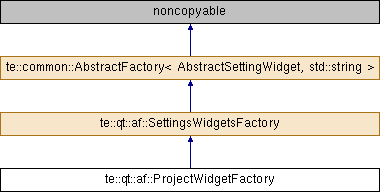

Inheritance diagram for te::qt::af::ProjectWidgetFactory:

Public Types
typedef FactoryDictionary < AbstractFactory < AbstractSettingWidget, std::string, TKEYCOMPARE > , std::string, TKEYCOMPARE >	dictionary_type
typedef AbstractFactory	factory_type

Public Member Functions
const std::string &	getKey () const
	It returns the factory key associated to the concreate factory. More...
	~ProjectWidgetFactory ()

Static Public Member Functions
static void	finalize ()
static const factory_type *	find (const std::string &factoryKey)
static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...
static void	initialize ()
static AbstractSettingWidget *	make (const std::string &cwType, QWidget *parent=0)
static AbstractSettingWidget *	make (const std::string &factoryKey)
	It creates an object with the appropriated factory. More...

Protected Member Functions
AbstractSettingWidget *	build ()
	Concrete factories (derived from this one) must implement this method in order to create objects. More...
virtual AbstractSettingWidget *	create (QWidget *parent=0)
	ProjectWidgetFactory ()

Protected Attributes
std::string	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Static Private Attributes
static ProjectWidgetFactory *	sm_factory

Detailed Description

A factory to build the project frame object.

Definition at line 47 of file ProjectWidgetFactory.h.

Member Typedef Documentation

typedef FactoryDictionary<AbstractFactory<AbstractSettingWidget , std::string , TKEYCOMPARE>, std::string , TKEYCOMPARE> te::common::AbstractFactory< AbstractSettingWidget , std::string , TKEYCOMPARE >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

typedef AbstractFactory te::common::AbstractFactory< AbstractSettingWidget , std::string , TKEYCOMPARE >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

te::qt::af::ProjectWidgetFactory::~ProjectWidgetFactory

(

)

Definition at line 19 of file ProjectWidgetFactory.cpp.

te::qt::af::ProjectWidgetFactory::ProjectWidgetFactory ( )

protected

Definition at line 29 of file ProjectWidgetFactory.cpp.

Referenced by initialize().

Member Function Documentation

te::qt::af::AbstractSettingWidget * te::qt::af::ProjectWidgetFactory::build ( )

protectedvirtual

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns

It returns an object created by the concrete factory.

Implements te::common::AbstractFactory< AbstractSettingWidget, std::string >.

Definition at line 24 of file ProjectWidgetFactory.cpp.

te::qt::af::AbstractSettingWidget * te::qt::af::ProjectWidgetFactory::create ( QWidget *  parent = 0 )

protectedvirtual

Implements te::qt::af::SettingsWidgetsFactory.

Definition at line 35 of file ProjectWidgetFactory.cpp.

void te::qt::af::ProjectWidgetFactory::finalize ( )

static

Definition at line 13 of file ProjectWidgetFactory.cpp.

Referenced by initialize(), and te::qt::af::SettingsDialog::~SettingsDialog().

static const factory_type* te::common::AbstractFactory< AbstractSettingWidget , std::string , TKEYCOMPARE >::find ( const std::string &  factoryKey )

staticinherited

static dictionary_type& te::common::AbstractFactory< AbstractSettingWidget , std::string , TKEYCOMPARE >::getDictionary ( )

staticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns

A reference to the internal dictionary.

Referenced by GetFactoriesNames().

const std::string & te::common::AbstractFactory< AbstractSettingWidget , std::string , TKEYCOMPARE >::getKey ( ) const

inherited

It returns the factory key associated to the concreate factory.

Returns

The factory key associated to the concreate factory.

void te::qt::af::ProjectWidgetFactory::initialize ( )

static

Definition at line 7 of file ProjectWidgetFactory.cpp.

References finalize(), ProjectWidgetFactory(), and sm_factory.

Referenced by te::qt::af::SettingsDialog::SettingsDialog().

AbstractSettingWidget * te::qt::af::SettingsWidgetsFactory::make ( const std::string &  cwType, QWidget *  parent = 0  )

inlinestaticinherited

Definition at line 54 of file SettingsWidgetsFactory.h.

References te::qt::af::SettingsWidgetsFactory::create(), te::common::FactoryDictionary< TFACTORY, TFACTORYKEY, TKEYCOMPARE >::find(), and te::common::AbstractFactory< TPRODUCT, TFACTORYKEY, TKEYCOMPARE >::getDictionary().

Referenced by GetWidget().

static AbstractSettingWidget * te::common::AbstractFactory< AbstractSettingWidget , std::string , TKEYCOMPARE >::make ( const std::string &  factoryKey )

staticinherited

It creates an object with the appropriated factory.

Parameters

factoryKey

A key that identifies the factory used to build the object.

Returns

It returns a new object created by the given factory.

Exceptions

Exception

If the concrete factory is not specified or the object can not be built for any reason this methiod may throws an exception.

Note

The caller of this method will take the ownership of the returned object.

Member Data Documentation

std::string te::common::AbstractFactory< AbstractSettingWidget , std::string , TKEYCOMPARE >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

te::qt::af::ProjectWidgetFactory * te::qt::af::ProjectWidgetFactory::sm_factory

staticprivate

Definition at line 67 of file ProjectWidgetFactory.h.

Referenced by initialize().

---

The documentation for this class was generated from the following files:

• C:/TL5_2015_release/terralib5/src/terralib/qt/af/settings/ProjectWidgetFactory.h
• C:/TL5_2015_release/terralib5/src/terralib/qt/af/settings/ProjectWidgetFactory.cpp
