This class implements a concrete tool for vertex operations (move, add, etc.). More...

#include <VertexTool.h>

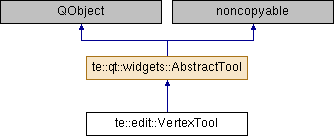

Inheritance diagram for te::edit::VertexTool:

Public Types
enum	StageType { FEATURE_SELECTION, VERTEX_SEARCH, VERTEX_FOUND, VERTEX_MOVING, VERTEX_READY_TO_ADD }
	Defines the operation stage to this tool. More...

Public Member Functions
virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Initializer Methods
Methods related to instantiation and destruction.
	VertexTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, QObject parent=0)
	It constructs a vertex tool associated with the given map display. More...

	~VertexTool ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

Protected Attributes
QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Private Slots
void	onExtentChanged ()

Private Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

void	draw (te::gm::Point *virtualVertex=0)

void	pickFeature (const te::map::AbstractLayerPtr &layer, const QPointF &pos)

void	pickFeature (const te::map::AbstractLayerPtr &layer, const te::gm::Envelope &env)

void	reset ()

void	setStage (StageType stage)

void	storeEditedFeature ()

void	updateCursor ()

void	updateRTree ()

Private Attributes
StageType	m_currentStage

VertexIndex	m_currentVertexIndex

Feature *	m_feature

te::map::AbstractLayerPtr	m_layer

std::vector< te::gm::LineString * >	m_lines

te::sam::rtree::Index < VertexIndex, 8 >	m_rtree

Detailed Description

This class implements a concrete tool for vertex operations (move, add, etc.).

Definition at line 70 of file VertexTool.h.

Member Enumeration Documentation

enum te::edit::VertexTool::StageType

Defines the operation stage to this tool.

Enumerator
FEATURE_SELECTION	Selection of feature.
VERTEX_SEARCH	Search of vertex.
VERTEX_FOUND	Vertex found.
VERTEX_MOVING	Vertex movement.
VERTEX_READY_TO_ADD	Vertex add.

Definition at line 81 of file VertexTool.h.

Constructor & Destructor Documentation

te::edit::VertexTool::VertexTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		QObject *	parent = `0`
	)

It constructs a vertex tool associated with the given map display.

Parameters

display	The map display associated with the tool.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

Definition at line 54 of file VertexTool.cpp.

References draw(), m_currentVertexIndex, te::qt::widgets::AbstractTool::m_display, m_layer, te::edit::VertexIndex::makeInvalid(), onExtentChanged(), and updateCursor().

te::edit::VertexTool::~VertexTool ( )

Destructor.

Definition at line 72 of file VertexTool.cpp.

Member Function Documentation

te::gm::Envelope te::edit::VertexTool::buildEnvelope ( const QPointF & pos )

private

Definition at line 350 of file VertexTool.cpp.

void te::edit::VertexTool::draw ( te::gm::Point * virtualVertex = 0 )

private

Definition at line 291 of file VertexTool.cpp.

References te::edit::Renderer::begin(), te::edit::Renderer::draw(), te::edit::Renderer::drawRepository(), te::edit::Renderer::drawVertexes(), te::edit::Renderer::end(), te::common::Singleton< Renderer >::getInstance(), te::common::Singleton< RepositoryManager >::getInstance(), te::gm::LineString::getPointN(), te::gm::Envelope::isValid(), and te::edit::Renderer::setPointStyle().

Referenced by VertexTool().

bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

Definition at line 50 of file AbstractTool.cpp.

Referenced by te::qt::widgets::ZoomKeyboard::eventFilter(), and te::qt::widgets::ZoomWheel::eventFilter().

bool te::edit::VertexTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 217 of file VertexTool.cpp.

References te::edit::AddVertex(), and te::edit::GetPosition().

bool te::edit::VertexTool::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 119 of file VertexTool.cpp.

References te::gm::Envelope::getCenter(), te::gm::GetGeomFromEnvelope(), te::edit::GetPosition(), te::edit::MoveVertex(), te::gm::Coord2D::x, and te::gm::Coord2D::y.

bool te::edit::VertexTool::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 77 of file VertexTool.cpp.

References te::edit::RemoveVertex().

bool te::edit::VertexTool::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 188 of file VertexTool.cpp.

References te::edit::GetPosition().

void te::edit::VertexTool::onExtentChanged ( )

privateslot

Definition at line 345 of file VertexTool.cpp.

Referenced by VertexTool().

void te::edit::VertexTool::pickFeature	(	const te::map::AbstractLayerPtr &	layer,
		const QPointF &	pos
	)

private

Definition at line 262 of file VertexTool.cpp.

void te::edit::VertexTool::pickFeature	(	const te::map::AbstractLayerPtr &	layer,
		const te::gm::Envelope &	env
	)

private

Definition at line 268 of file VertexTool.cpp.

References te::edit::GetLines(), and te::edit::PickFeature().

void te::edit::VertexTool::reset ( )

private

Definition at line 248 of file VertexTool.cpp.

void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Definition at line 98 of file AbstractTool.cpp.

Referenced by te::edit::CreateLineTool::CreateLineTool(), te::edit::CreatePolygonTool::CreatePolygonTool(), te::qt::widgets::ExtentAcquire::ExtentAcquire(), te::qt::widgets::Info::Info(), te::qt::widgets::Measure::Measure(), te::qt::widgets::Pan::Pan(), te::qt::widgets::PanExtent::PanExtent(), te::qt::widgets::PointPicker::PointPicker(), te::qt::widgets::Selection::Selection(), te::qt::widgets::ZoomArea::ZoomArea(), and te::qt::widgets::ZoomClick::ZoomClick().

void te::edit::VertexTool::setStage ( StageType stage )

private

Definition at line 387 of file VertexTool.cpp.

void te::edit::VertexTool::storeEditedFeature ( )

private

Definition at line 415 of file VertexTool.cpp.

References te::edit::RepositoryManager::addGeometry(), and te::common::Singleton< RepositoryManager >::getInstance().

void te::edit::VertexTool::updateCursor ( )

private

Definition at line 393 of file VertexTool.cpp.

Referenced by VertexTool().

void te::edit::VertexTool::updateRTree ( )

private

Definition at line 367 of file VertexTool.cpp.

References te::gm::LineString::getNPoints(), te::gm::LineString::getX(), te::gm::LineString::getY(), and te::edit::VertexIndex::setIndex().

Member Data Documentation

StageType te::edit::VertexTool::m_currentStage

private

Definition at line 156 of file VertexTool.h.

VertexIndex te::edit::VertexTool::m_currentVertexIndex

private

Definition at line 154 of file VertexTool.h.

Referenced by VertexTool().

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Referenced by te::qt::widgets::AbstractTool::AbstractTool(), te::qt::widgets::CoordTracking::CoordTracking(), te::edit::CreateLineTool::CreateLineTool(), te::edit::CreatePolygonTool::CreatePolygonTool(), te::qt::widgets::Measure::Measure(), te::edit::MoveGeometryTool::MoveGeometryTool(), te::qt::widgets::PolygonAcquire::PolygonAcquire(), VertexTool(), and te::qt::widgets::ZoomKeyboard::ZoomKeyboard().

Feature* te::edit::VertexTool::m_feature

private

Definition at line 152 of file VertexTool.h.

te::map::AbstractLayerPtr te::edit::VertexTool::m_layer

private

Definition at line 151 of file VertexTool.h.

Referenced by VertexTool().

std::vector<te::gm::LineString*> te::edit::VertexTool::m_lines

private

Definition at line 153 of file VertexTool.h.

te::sam::rtree::Index<VertexIndex, 8> te::edit::VertexTool::m_rtree

private

Definition at line 155 of file VertexTool.h.

The documentation for this class was generated from the following files:

C:/TL5_2015_release/terralib5/src/terralib/edit/qt/tools/VertexTool.h
C:/TL5_2015_release/terralib5/src/terralib/edit/qt/tools/VertexTool.cpp
