A visitor for building an SQL statement from a given Query hierarchy. More...

#include <SQLVisitor.h>

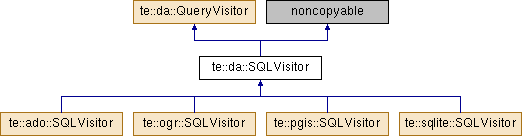

Inheritance diagram for te::da::SQLVisitor:

Public Member Functions
	SQLVisitor (const SQLDialect &dialect, std::string &sql)
	Default constructor. More...

virtual void	visit (const Expression &visited)

virtual void	visit (const DataSetName &visited)

virtual void	visit (const FromItem &visited)

virtual void	visit (const Function &visited)

virtual void	visit (const Join &visited)

virtual void	visit (const JoinCondition &visited)

virtual void	visit (const JoinConditionOn &visited)

virtual void	visit (const JoinConditionUsing &visited)

virtual void	visit (const Literal &visited)

virtual void	visit (const LiteralBool &visited)

virtual void	visit (const LiteralByteArray &visited)

virtual void	visit (const LiteralDateTime &visited)

virtual void	visit (const LiteralDouble &visited)

virtual void	visit (const LiteralEnvelope &visited)

virtual void	visit (const LiteralGeom &visited)

virtual void	visit (const LiteralInt16 &visited)

virtual void	visit (const LiteralInt32 &visited)

virtual void	visit (const LiteralInt64 &visited)

virtual void	visit (const LiteralString &visited)

virtual void	visit (const PropertyName &visited)

virtual void	visit (const Query &visited)

virtual void	visit (const Select &visited)

virtual void	visit (const SubSelect &visited)

virtual void	visit (const In &visited)

virtual void	visit (const Fields &visited)

virtual void	visit (const From &visited)

virtual void	visit (const GroupBy &visited)

virtual void	visit (const OrderBy &visited)

virtual void	visitDistinct (const Distinct &visited)

virtual	~SQLVisitor ()
	Virtual destructor. More...

Protected Attributes
const SQLDialect &	m_dialect
	The function catalog to use when translating the query. More...

std::string &	m_sql
	The buffer string where the query will be outputed. More...

Detailed Description

A visitor for building an SQL statement from a given Query hierarchy.

Each driver must implement a SQL dialect in order help this class to translate the query object to its specific dialect.

Definition at line 58 of file SQLVisitor.h.

Constructor & Destructor Documentation

te::da::SQLVisitor::SQLVisitor	(	const SQLDialect &	dialect,
		std::string &	sql
	)

inline

Default constructor.

Definition at line 65 of file SQLVisitor.h.

virtual te::da::SQLVisitor::~SQLVisitor ( )

inlinevirtual

Virtual destructor.

Reimplemented in te::pgis::SQLVisitor, te::ado::SQLVisitor, te::sqlite::SQLVisitor, and te::ogr::SQLVisitor.

Definition at line 68 of file SQLVisitor.h.

Member Function Documentation

void te::da::SQLVisitor::visit ( const Expression & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 67 of file SQLVisitor.cpp.

Referenced by te::ogr::SQLVisitor::visit(), and te::ado::SQLVisitor::visit().

void te::da::SQLVisitor::visit ( const DataSetName & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ogr::SQLVisitor.

Definition at line 71 of file SQLVisitor.cpp.

References te::da::FromItem::getAlias(), and te::da::DataSetName::getName().

void te::da::SQLVisitor::visit ( const FromItem & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 82 of file SQLVisitor.cpp.

void te::da::SQLVisitor::visit ( const Function & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ado::SQLVisitor.

Definition at line 86 of file SQLVisitor.cpp.

References te::da::Function::getName(), TE_TR, and te::da::SQLFunctionEncoder::toSQL().

void te::da::SQLVisitor::visit ( const Join & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ogr::SQLVisitor.

Definition at line 98 of file SQLVisitor.cpp.

References te::common::BaseVisitable< T, R >::accept(), te::da::CROSS_JOIN, te::da::FULL_OUTER_JOIN, te::da::Join::getCondition(), te::da::Join::getFirst(), te::da::Join::getSecond(), te::da::Join::getType(), te::da::INNER_JOIN, te::da::Join::isNatural(), te::da::JOIN, te::da::LEFT_JOIN, te::da::NATURAL_JOIN, and te::da::RIGHT_JOIN.

void te::da::SQLVisitor::visit ( const JoinCondition & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 150 of file SQLVisitor.cpp.

void te::da::SQLVisitor::visit ( const JoinConditionOn & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ogr::SQLVisitor.

Definition at line 154 of file SQLVisitor.cpp.

References te::common::BaseVisitable< T, R >::accept(), and te::da::JoinConditionOn::getCondition().

void te::da::SQLVisitor::visit ( const JoinConditionUsing & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 162 of file SQLVisitor.cpp.

References te::common::BaseVisitable< T, R >::accept(), and te::da::JoinConditionUsing::getNumFields().

void te::da::SQLVisitor::visit ( const Literal & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 180 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const LiteralBool & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 186 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const LiteralByteArray & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::pgis::SQLVisitor, te::ado::SQLVisitor, and te::sqlite::SQLVisitor.

Definition at line 192 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const LiteralDateTime & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::pgis::SQLVisitor, te::ado::SQLVisitor, and te::sqlite::SQLVisitor.

Definition at line 198 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const LiteralDouble & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 204 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const LiteralEnvelope & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::pgis::SQLVisitor, te::ado::SQLVisitor, te::sqlite::SQLVisitor, and te::ogr::SQLVisitor.

Definition at line 210 of file SQLVisitor.cpp.

void te::da::SQLVisitor::visit ( const LiteralGeom & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::pgis::SQLVisitor, te::ado::SQLVisitor, and te::sqlite::SQLVisitor.

Definition at line 214 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const LiteralInt16 & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 220 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const LiteralInt32 & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 226 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const LiteralInt64 & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 232 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const LiteralString & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 238 of file SQLVisitor.cpp.

References te::da::Literal::getValue(), and te::dt::AbstractData::toString().

void te::da::SQLVisitor::visit ( const PropertyName & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ado::SQLVisitor, and te::ogr::SQLVisitor.

Definition at line 248 of file SQLVisitor.cpp.

References te::da::PropertyName::getName().

void te::da::SQLVisitor::visit ( const Query & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 253 of file SQLVisitor.cpp.

void te::da::SQLVisitor::visit ( const Select & visited )

virtual

Implements te::da::QueryVisitor.

Reimplemented in te::ogr::SQLVisitor.

Definition at line 257 of file SQLVisitor.cpp.

References te::common::BaseVisitable< T, R >::accept(), te::da::Select::getDistinct(), te::da::Having::getExp(), te::da::Where::getExp(), te::da::Select::getFields(), te::da::Select::getFrom(), te::da::Select::getGroupBy(), te::da::Select::getHaving(), te::da::Select::getOrderBy(), and te::da::Select::getWhere().

void te::da::SQLVisitor::visit ( const SubSelect & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 303 of file SQLVisitor.cpp.

References te::common::BaseVisitable< T, R >::accept(), te::da::FromItem::getAlias(), and te::da::SubSelect::getSelect().

void te::da::SQLVisitor::visit ( const In & visited )

virtual

Implements te::da::QueryVisitor.

Definition at line 318 of file SQLVisitor.cpp.

References te::common::BaseVisitable< T, R >::accept(), te::da::Function::getNumArgs(), and te::da::In::getPropertyName().

void te::da::SQLVisitor::visit ( const Fields & visited )

virtual

Definition at line 362 of file SQLVisitor.cpp.

void te::da::SQLVisitor::visit ( const From & visited )

virtual

Definition at line 378 of file SQLVisitor.cpp.

void te::da::SQLVisitor::visit ( const GroupBy & visited )

virtual

Definition at line 393 of file SQLVisitor.cpp.

void te::da::SQLVisitor::visit ( const OrderBy & visited )

virtual

Definition at line 408 of file SQLVisitor.cpp.

References te::da::ASC.

void te::da::SQLVisitor::visitDistinct ( const Distinct & visited )

virtual

Reimplemented in te::ogr::SQLVisitor.

Definition at line 338 of file SQLVisitor.cpp.

Member Data Documentation

const SQLDialect& te::da::SQLVisitor::m_dialect

protected

The function catalog to use when translating the query.

Definition at line 105 of file SQLVisitor.h.

std::string& te::da::SQLVisitor::m_sql

protected

The buffer string where the query will be outputed.

Definition at line 106 of file SQLVisitor.h.

The documentation for this class was generated from the following files:

C:/TL5_2015_release/terralib5/src/terralib/dataaccess/query/SQLVisitor.h
C:/TL5_2015_release/terralib5/src/terralib/dataaccess/query/SQLVisitor.cpp
