It defines a simple type as a collection (union) of values from specified simple data types. More...

#include <Union.h>

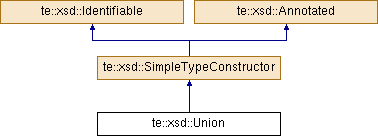

Inheritance diagram for te::xsd::Union:

Public Member Functions
void	addMemberType (QName *name)
	It adds a member type to this Union element. More...

void	addSimpleType (SimpleType *a)
	It adds an internal simple type element to this Union element. More...

SimpleTypeConstructor *	clone () const
	It creates a clone of the object. More...

Annotation *	getAnnotation () const
	It returns the associated annotation. More...

std::string *	getId () const
	It returns a pointer (may be NULL) to the object id. More...

const boost::ptr_vector< QName > &	getMemberTypes () const
	It returns the list of member types. More...

const boost::ptr_vector < SimpleType > &	getSimpleTypes () const
	It returns the list of simple types defined on this union element. More...

Union &	operator= (const Union &rhs)
	Assignment operator. More...

void	setAnnotation (Annotation *ann)
	It sets the associated annotation. More...

void	setId (std::string *id)
	it sets the id. More...

	Union (Annotation ann=0, std::string id=0)
	Constructor. More...

	Union (const Union &rhs)
	Copy constructor. More...

	~Union ()
	Destructor. More...

Private Attributes
boost::ptr_vector< SimpleType >	m_internalSimpleTypeVec
	Used when the union has internal simple types. More...

boost::ptr_vector< QName >	m_memberTypeVec
	It specifies a list of built-in data types or simpleType elements defined in a schema. (Optional) More...

Detailed Description

It defines a simple type as a collection (union) of values from specified simple data types.

Note: Parent elements: simpleType.

Definition at line 50 of file Union.h.

Constructor & Destructor Documentation

te::xsd::Union::Union	(	Annotation *	ann = `0`,
		std::string *	id = `0`
	)

Constructor.

Parameters

ann	An annotation.
id	It specifies a unique ID for the element.

Note: The Union object will take the ownership of the given pointers.

Definition at line 35 of file Union.cpp.

te::xsd::Union::Union ( const Union & rhs )

Copy constructor.

Parameters

rhs	Right-hand-side object.

Definition at line 40 of file Union.cpp.

References m_internalSimpleTypeVec, and m_memberTypeVec.

te::xsd::Union::~Union ( )

Destructor.

Definition at line 50 of file Union.cpp.

Member Function Documentation

void te::xsd::Union::addMemberType ( QName * name )

It adds a member type to this Union element.

Parameters

name	The name of a built-in data type or simpleType element defined in this or another schema.

Note: The Union object will take the ownership of the given pointer.

Definition at line 80 of file Union.cpp.

void te::xsd::Union::addSimpleType ( SimpleType * a )

It adds an internal simple type element to this Union element.

Parameters

a	The simple type that will be added.

Note: The Union object will take the ownership of the given pointer.

Definition at line 85 of file Union.cpp.

te::xsd::SimpleTypeConstructor * te::xsd::Union::clone ( ) const

virtual

It creates a clone of the object.

Returns: A clone of the object. The caller will take the ownership of the returned pointer.

Implements te::xsd::SimpleTypeConstructor.

Definition at line 90 of file Union.cpp.

te::xsd::Annotation * te::xsd::Annotated::getAnnotation ( ) const

inherited

It returns the associated annotation.

Returns: The associated annotation.

Definition at line 30 of file Annotated.cpp.

References te::xsd::Annotated::m_annotation.

std::string * te::xsd::Identifiable::getId ( ) const

inherited

It returns a pointer (may be NULL) to the object id.

Definition at line 35 of file Identifiable.cpp.

const boost::ptr_vector< te::xsd::QName > & te::xsd::Union::getMemberTypes ( ) const

It returns the list of member types.

Returns: The list list of member types.

Definition at line 70 of file Union.cpp.

const boost::ptr_vector< te::xsd::SimpleType > & te::xsd::Union::getSimpleTypes ( ) const

It returns the list of simple types defined on this union element.

Returns: The the list of simple types defined on this union element.

Definition at line 75 of file Union.cpp.

te::xsd::Union & te::xsd::Union::operator= ( const Union & rhs )

Assignment operator.

Parameters

rhs	Right-hand-side object.

Returns: A reference to this object.

Definition at line 54 of file Union.cpp.

References m_internalSimpleTypeVec, m_memberTypeVec, and te::xsd::SimpleTypeConstructor::operator=().

void te::xsd::Annotated::setAnnotation ( Annotation * ann )

inherited

It sets the associated annotation.

Parameters

ann	The annotation to be associated to the object. The annotated class will take the ownership of the given pointer.

Definition at line 35 of file Annotated.cpp.

Referenced by te::xsd::serialize::ReadAnnotated().

void te::xsd::Identifiable::setId ( std::string * id )

inherited

it sets the id.

Parameters

id	The id to be associated to the object. It will take the ownership of the given string.

Definition at line 29 of file Identifiable.cpp.

References te::xsd::Identifiable::m_id.

Referenced by te::xsd::serialize::ReadIdentifiable().

Member Data Documentation

boost::ptr_vector<SimpleType> te::xsd::Union::m_internalSimpleTypeVec

private

Used when the union has internal simple types.

Definition at line 120 of file Union.h.

Referenced by operator=(), and Union().

boost::ptr_vector<QName> te::xsd::Union::m_memberTypeVec

private

It specifies a list of built-in data types or simpleType elements defined in a schema. (Optional)

Definition at line 119 of file Union.h.

Referenced by operator=(), and Union().

The documentation for this class was generated from the following files:

C:/TL5_2015_release/terralib5/src/terralib/xsd/Union.h
C:/TL5_2015_release/terralib5/src/terralib/xsd/Union.cpp
