te::layout::AbstractEnum Class Reference

Abstract class to represent an enumeration. More...

#include <AbstractEnum.h>

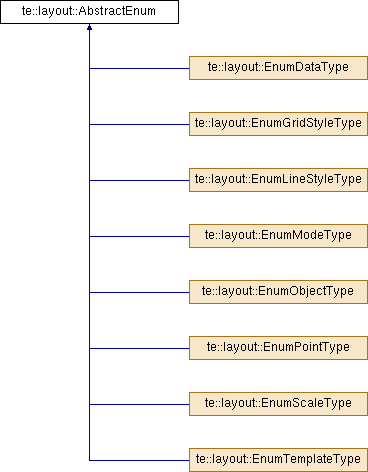

Inheritance diagram for te::layout::AbstractEnum:

Public Member Functions
	AbstractEnum ()
	Constructor. More...
virtual EnumType *	getEnum (int enumId) const
	Searching for a value of the enumeration by id. More...
virtual EnumType *	getEnum (std::string name) const
	Searching for an enumeration value by name. More...
virtual int	maxId ()
	Searching for a max value of the id. More...
virtual int	minId ()
	Searching for a min value of the id. More...
virtual EnumType *	searchLabel (std::string label) const
	Searching for an enumeration value by name. More...
virtual int	size ()
virtual	~AbstractEnum ()
	Destructor. More...

Protected Member Functions
virtual void	init ()=0
	Creates the enumeration values and adds the list Reimplement this function in a AbstractEnum subclass to provide the enum's init implementation. More...

Protected Attributes
std::vector< EnumType * >	m_enums
	list of enumeration values More...

Detailed Description

Abstract class to represent an enumeration.

Definition at line 48 of file AbstractEnum.h.

Constructor & Destructor Documentation

te::layout::AbstractEnum::AbstractEnum

(

)

Constructor.

Definition at line 32 of file AbstractEnum.cpp.

te::layout::AbstractEnum::~AbstractEnum ( )

virtual

Destructor.

Definition at line 37 of file AbstractEnum.cpp.

Member Function Documentation

te::layout::EnumType * te::layout::AbstractEnum::getEnum ( int  enumId ) const

virtual

Searching for a value of the enumeration by id.

Parameters

enumId

id

Returns

value found in the enumeration or null

Definition at line 42 of file AbstractEnum.cpp.

Referenced by te::layout::JSON::retrieve(), te::layout::JSON::retrieveSubPTree(), and te::layout::GridMapModel::updateProperties().

te::layout::EnumType * te::layout::AbstractEnum::getEnum ( std::string  name ) const

virtual

Searching for an enumeration value by name.

Parameters

name

Returns

value found in the enumeration or null

Definition at line 58 of file AbstractEnum.cpp.

virtual void te::layout::AbstractEnum::init ( )

protectedpure virtual

Creates the enumeration values and adds the list Reimplement this function in a AbstractEnum subclass to provide the enum's init implementation.

Implemented in te::layout::EnumModeType, te::layout::EnumObjectType, te::layout::EnumDataType, te::layout::EnumLineStyleType, te::layout::EnumPointType, te::layout::EnumScaleType, te::layout::EnumGridStyleType, and te::layout::EnumTemplateType.

int te::layout::AbstractEnum::maxId ( )

virtual

Searching for a max value of the id.

Returns

-1 if no found, otherwise the id

Definition at line 90 of file AbstractEnum.cpp.

int te::layout::AbstractEnum::minId ( )

virtual

Searching for a min value of the id.

Returns

-1 if no found, otherwise the id

Definition at line 108 of file AbstractEnum.cpp.

te::layout::EnumType * te::layout::AbstractEnum::searchLabel ( std::string  label ) const

virtual

Searching for an enumeration value by name.

Parameters

name

Returns

value found in the enumeration or null

Definition at line 74 of file AbstractEnum.cpp.

int te::layout::AbstractEnum::size ( )

virtual

Definition at line 128 of file AbstractEnum.cpp.

Member Data Documentation

std::vector<EnumType*> te::layout::AbstractEnum::m_enums

protected

list of enumeration values

Definition at line 112 of file AbstractEnum.h.

---

The documentation for this class was generated from the following files:

• C:/TL5_2015_release/terralib5/src/terralib/layout/core/enum/AbstractEnum.h
• C:/TL5_2015_release/terralib5/src/terralib/layout/core/enum/AbstractEnum.cpp
