Abstract class to represent an observer. "View" part of MVC widget. All classes representing the graphics component must inherit from this class. More...

#include <OutsideObserver.h>

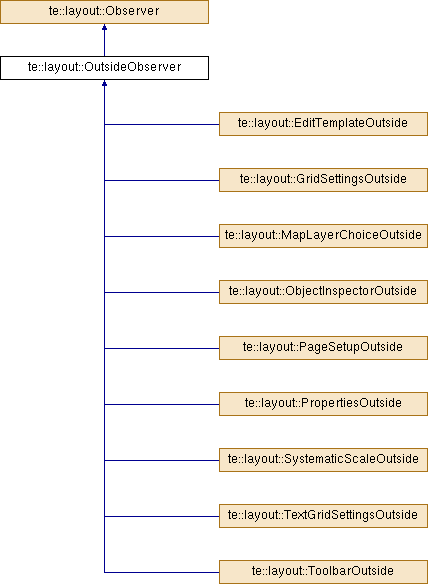

Inheritance diagram for te::layout::OutsideObserver:

Public Member Functions
virtual OutsideController *	getController ()
	Returns the "Controller" part of the MVC. More...

virtual Observable *	getModel ()
	Returns the "Model" part of the MVC. More...

virtual te::gm::Coord2D	getPosition ()=0
	Method that returns the position llx, lly Reimplement this function in a ItemObserver subclass to provide the item's getPosition implementation. More...

virtual Properties *	getProperties () const
	Reimplemented from Observer. More...

	OutsideObserver (OutsideController controller, Observable o)
	Constructor. More...

virtual void	refresh ()
	Updated model state. More...

virtual void	setPosition (const double &x, const double &y)=0
	Change coordinate llx,lly of the MVC widget. Reimplement this function in a ItemController subclass to provide the controller's create implementation. More...

virtual void	updateObserver (ContextItem context)=0
	Reimplemented from Observer. More...

virtual	~OutsideObserver ()
	Destructor. More...

Protected Attributes
OutsideController *	m_controller
	"Controller" part of MVC widget. More...

Observable *	m_model
	"Model" part of MVC widget. More...

Detailed Description

Abstract class to represent an observer. "View" part of MVC widget. All classes representing the graphics component must inherit from this class.

See also: te::layout::Observer

Definition at line 52 of file OutsideObserver.h.

Constructor & Destructor Documentation

te::layout::OutsideObserver::OutsideObserver	(	OutsideController *	controller,
		Observable *	o
	)

Constructor.

Parameters

controller	"Controller" part of MVC widget
o	"Model" part of MVC widget

Definition at line 35 of file OutsideObserver.cpp.

References te::layout::Observable::addObserver(), and m_model.

te::layout::OutsideObserver::~OutsideObserver ( )

virtual

Destructor.

Definition at line 42 of file OutsideObserver.cpp.

Member Function Documentation

te::layout::OutsideController * te::layout::OutsideObserver::getController ( )

virtual

Returns the "Controller" part of the MVC.

Returns: controller

Definition at line 59 of file OutsideObserver.cpp.

te::layout::Observable * te::layout::OutsideObserver::getModel ( )

virtual

Returns the "Model" part of the MVC.

Returns: model

Definition at line 64 of file OutsideObserver.cpp.

Referenced by te::layout::DialogPropertiesBrowser::onShowGridSettingsDlg().

virtual te::gm::Coord2D te::layout::OutsideObserver::getPosition ( )

pure virtual

Method that returns the position llx, lly Reimplement this function in a ItemObserver subclass to provide the item's getPosition implementation.

Returns: coordinate

Implemented in te::layout::PropertiesOutside, te::layout::ToolbarOutside, te::layout::MapLayerChoiceOutside, te::layout::GridSettingsOutside, te::layout::ObjectInspectorOutside, te::layout::TextGridSettingsOutside, te::layout::EditTemplateOutside, te::layout::PageSetupOutside, and te::layout::SystematicScaleOutside.

te::layout::Properties * te::layout::OutsideObserver::getProperties ( ) const

virtual

Reimplemented from Observer.

Definition at line 54 of file OutsideObserver.cpp.

References te::layout::Properties::getProperties().

void te::layout::OutsideObserver::refresh ( )

virtual

Updated model state.

Parameters

true	if refresh the current position, false otherwise

Definition at line 48 of file OutsideObserver.cpp.

References te::gm::Coord2D::x, and te::gm::Coord2D::y.

virtual void te::layout::OutsideObserver::setPosition	(	const double &	x,
		const double &	y
	)

pure virtual

Change coordinate llx,lly of the MVC widget. Reimplement this function in a ItemController subclass to provide the controller's create implementation.

Parameters

x	llx
y	lly

Implemented in te::layout::PropertiesOutside, te::layout::ToolbarOutside, te::layout::MapLayerChoiceOutside, te::layout::GridSettingsOutside, te::layout::ObjectInspectorOutside, te::layout::TextGridSettingsOutside, te::layout::EditTemplateOutside, te::layout::PageSetupOutside, and te::layout::SystematicScaleOutside.

virtual void te::layout::OutsideObserver::updateObserver ( ContextItem context )

pure virtual

Reimplemented from Observer.

Implements te::layout::Observer.

Implemented in te::layout::PropertiesOutside, te::layout::ToolbarOutside, te::layout::MapLayerChoiceOutside, te::layout::GridSettingsOutside, te::layout::ObjectInspectorOutside, te::layout::TextGridSettingsOutside, te::layout::EditTemplateOutside, te::layout::PageSetupOutside, and te::layout::SystematicScaleOutside.

Member Data Documentation

OutsideController* te::layout::OutsideObserver::m_controller

protected

"Controller" part of MVC widget.

Definition at line 119 of file OutsideObserver.h.

Observable* te::layout::OutsideObserver::m_model

protected

"Model" part of MVC widget.

Definition at line 120 of file OutsideObserver.h.

Referenced by te::layout::ObjectInspectorOutside::ObjectInspectorOutside(), OutsideObserver(), and te::layout::PropertiesOutside::PropertiesOutside().

The documentation for this class was generated from the following files:

C:/TL5_2015_release/terralib5/src/terralib/layout/core/pattern/mvc/OutsideObserver.h
C:/TL5_2015_release/terralib5/src/terralib/layout/core/pattern/mvc/OutsideObserver.cpp
