It models the unique element in an XML Schema. More...

#include <Unique.h>

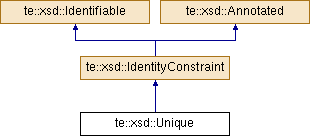

Inheritance diagram for te::xsd::Unique:

Public Member Functions
void	addField (Field *f)
	Adds a new field to this element. More...

IdentityConstraint *	clone () const
	It clones the object. More...

Annotation *	getAnnotation () const
	It returns the associated annotation. More...

const boost::ptr_vector< Field > &	getFields () const
	It returns the list of Fields elements of this element. More...

std::string *	getId () const
	It returns a pointer (may be NULL) to the object id. More...

std::string *	getName () const
	It returns the name of this element. More...

Selector *	getSelector () const
	It returns the Selector element of this element. More...

Unique &	operator= (const Unique &rhs)
	Assignment operator. More...

void	setAnnotation (Annotation *ann)
	It sets the associated annotation. More...

void	setId (std::string *id)
	it sets the id. More...

void	setName (std::string *name)
	It sets a name for this element. More...

void	setSelector (Selector *s)
	It sets the Selector element of this element. More...

	Unique (std::string name, Annotation ann=0, std::string *id=0)
	Constructor. More...

	Unique (const Unique &rhs)
	Copy constructor. More...

	~Unique ()
	Destructor. More...

Protected Attributes
boost::ptr_vector< Field >	m_fieldVec
	The list of fields. (Required at least one) More...

std::string *	m_name
	It specifies the name of this element. (Required) More...

Selector *	m_selector
	It specified the selector element of this. (Required) More...

Detailed Description

It models the unique element in an XML Schema.

The unique element defines that an element or an attribute value must be unique within the scope.

Definition at line 43 of file Unique.h.

Constructor & Destructor Documentation

te::xsd::Unique::Unique	(	std::string *	name,
		Annotation *	ann = `0`,
		std::string *	id = `0`
	)

Constructor.

Parameters

id	It specifies a unique ID for the element. It may be a NULL value.
name	It specifies the name of the unique element. It is required a non-NULL value.

Note: The Unique object will take the ownership of the id and name pointers.

Definition at line 29 of file Unique.cpp.

te::xsd::Unique::Unique ( const Unique & rhs )

Copy constructor.

Parameters

rhs	Right-hand-side object.

Definition at line 34 of file Unique.cpp.

te::xsd::Unique::~Unique ( )

Destructor.

Definition at line 39 of file Unique.cpp.

Member Function Documentation

void te::xsd::IdentityConstraint::addField ( Field * f )

inherited

Adds a new field to this element.

Parameters

f	The field that will be added.

Note: The IdentityConstraint object will take the ownership of the given pointer.

Definition at line 85 of file IdentityConstraint.cpp.

te::xsd::IdentityConstraint * te::xsd::Unique::clone ( ) const

virtual

It clones the object.

Returns: A clone of the object. The caller will take the ownership.

Implements te::xsd::IdentityConstraint.

Definition at line 48 of file Unique.cpp.

te::xsd::Annotation * te::xsd::Annotated::getAnnotation ( ) const

inherited

It returns the associated annotation.

Returns: The associated annotation.

Definition at line 30 of file Annotated.cpp.

References te::xsd::Annotated::m_annotation.

const boost::ptr_vector< te::xsd::Field > & te::xsd::IdentityConstraint::getFields ( ) const

inherited

It returns the list of Fields elements of this element.

Returns: The list of Fields.

Definition at line 67 of file IdentityConstraint.cpp.

std::string * te::xsd::Identifiable::getId ( ) const

inherited

It returns a pointer (may be NULL) to the object id.

Definition at line 35 of file Identifiable.cpp.

std::string * te::xsd::IdentityConstraint::getName ( ) const

inherited

It returns the name of this element.

Returns: The name of this element.

Definition at line 57 of file IdentityConstraint.cpp.

te::xsd::Selector * te::xsd::IdentityConstraint::getSelector ( ) const

inherited

It returns the Selector element of this element.

Returns: The Selector element.

Definition at line 62 of file IdentityConstraint.cpp.

te::xsd::Unique & te::xsd::Unique::operator= ( const Unique & rhs )

Assignment operator.

Parameters

rhs	Right-hand-side object.

Returns: A reference to this object.

Definition at line 43 of file Unique.cpp.

void te::xsd::Annotated::setAnnotation ( Annotation * ann )

inherited

It sets the associated annotation.

Parameters

ann	The annotation to be associated to the object. The annotated class will take the ownership of the given pointer.

Definition at line 35 of file Annotated.cpp.

Referenced by te::xsd::serialize::ReadAnnotated().

void te::xsd::Identifiable::setId ( std::string * id )

inherited

it sets the id.

Parameters

id	The id to be associated to the object. It will take the ownership of the given string.

Definition at line 29 of file Identifiable.cpp.

References te::xsd::Identifiable::m_id.

Referenced by te::xsd::serialize::ReadIdentifiable().

void te::xsd::IdentityConstraint::setName ( std::string * name )

inherited

It sets a name for this element.

Parameters

name	A name for this element. Required a non-NULL value.

Note: The IdentityConstraint object will take the ownership of the given pointer.

Definition at line 72 of file IdentityConstraint.cpp.

void te::xsd::IdentityConstraint::setSelector ( Selector * s )

inherited

It sets the Selector element of this element.

Parameters

s	It specifies the Selector element.

Note: The IdentityConstraint object will take the ownership of the given pointer.

Definition at line 79 of file IdentityConstraint.cpp.

Member Data Documentation

boost::ptr_vector<Field> te::xsd::IdentityConstraint::m_fieldVec

protectedinherited

The list of fields. (Required at least one)

Definition at line 147 of file IdentityConstraint.h.

std::string* te::xsd::IdentityConstraint::m_name

protectedinherited

It specifies the name of this element. (Required)

Definition at line 145 of file IdentityConstraint.h.

Referenced by te::xsd::IdentityConstraint::IdentityConstraint().

Selector* te::xsd::IdentityConstraint::m_selector

protectedinherited

It specified the selector element of this. (Required)

Definition at line 146 of file IdentityConstraint.h.

The documentation for this class was generated from the following files:

C:/TL5_2015_release/terralib5/src/terralib/xsd/Unique.h
C:/TL5_2015_release/terralib5/src/terralib/xsd/Unique.cpp
