Public Types | Public Member Functions | Static Public Member Functions | Protected Member Functions | Static Protected Member Functions | Protected Attributes | Static Private Attributes | Friends | List of all members
te::xerces::ReaderFactory Class Reference

This is the concrete factory for XML reader built on top of Xerces-C++ parser. More...

#include <ReaderFactory.h>

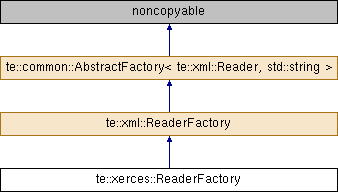

Inheritance diagram for te::xerces::ReaderFactory:
te::xml::ReaderFactory te::common::AbstractFactory< te::xml::Reader, std::string >

Public Types

typedef FactoryDictionary< AbstractFactory< te::xml::Reader, std::string, std::less< std::string > >, std::string, std::less< std::string > > dictionary_type

typedef AbstractFactory factory_type


Public Member Functions

const std::string & getKey () const
 It returns the factory key associated to the concreate factory. More...

 ~ReaderFactory ()
 Virtual destructor. More...


Static Public Member Functions

static const factory_type * find (const std::string &factoryKey)

static dictionary_type & getDictionary ()
 It returns a reference to the internal dictionary of concrete factories. More...

static te::xml::Reader * make ()
 It creates a new XML reader using the dafault implementation. More...

static te::xml::Reader * make (const std::string &readerType)
 It creates a new XML reader. More...

static void setDefaultReader (const std::string &readerType)
 It sets the default driver used to create the XML reader objects. More...


Protected Member Functions

te::xml::Reader * build ()
 Concrete factories (derived from this one) must implement this method in order to create objects. More...

 ReaderFactory ()


Static Protected Member Functions

static void finalize ()
 It finalizes the factory: it will be destroyed and will be unregistered from the abstract factory ReaderFactory. More...

static void initialize ()
 It initializes the factory: it will be registered in the abstract factory ReaderFactory. More...


Protected Attributes

std::string m_factoryKey
 The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...


Static Private Attributes

static ReaderFactory * sm_factory
 A pointer to the global Xerces XML Reader factory. More...


Friends

class Module


Detailed Description

This is the concrete factory for XML reader built on top of Xerces-C++ parser.

See also
te::xml::ReaderFactory

Definition at line 47 of file ReaderFactory.h.

Member Typedef Documentation

typedef FactoryDictionary<AbstractFactory<te::xml::Reader , std::string , std::less<std::string > >, std::string , std::less<std::string > > te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::dictionary_type
inherited

Definition at line 73 of file AbstractFactory.h.

typedef AbstractFactory te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::factory_type
inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

te::xerces::ReaderFactory::~ReaderFactory ( )
virtual

Virtual destructor.

Note
It will automatically unregister the factory from the dictionary.

Reimplemented from te::xml::ReaderFactory.

Definition at line 32 of file ReaderFactory.cpp.

te::xerces::ReaderFactory::ReaderFactory ( )
protected

Definition at line 41 of file ReaderFactory.cpp.

Member Function Documentation

te::xml::Reader * te::xerces::ReaderFactory::build ( )
protectedvirtual

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns
It returns an object created by the concrete factory.

Implements te::common::AbstractFactory< te::xml::Reader, std::string >.

Definition at line 36 of file ReaderFactory.cpp.

void te::xerces::ReaderFactory::finalize ( )
staticprotected

It finalizes the factory: it will be destroyed and will be unregistered from the abstract factory ReaderFactory.

Definition at line 52 of file ReaderFactory.cpp.

Referenced by te::xerces::Module::shutdown().

static const factory_type* te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::find ( const std::string &  factoryKey)
staticinherited
static dictionary_type& te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::getDictionary ( )
staticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns
A reference to the internal dictionary.
const std::string & te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::getKey ( ) const
inherited

It returns the factory key associated to the concreate factory.

Returns
The factory key associated to the concreate factory.
void te::xerces::ReaderFactory::initialize ( )
staticprotected

It initializes the factory: it will be registered in the abstract factory ReaderFactory.

Definition at line 46 of file ReaderFactory.cpp.

Referenced by te::xerces::Module::startup().

te::xml::Reader * te::xml::ReaderFactory::make ( )
staticinherited

It creates a new XML reader using the dafault implementation.

Returns
A new XML reader using the dafault implementation.

Definition at line 32 of file ReaderFactory.cpp.

References te::common::AbstractFactory< TPRODUCT, TFACTORYKEY, TKEYCOMPARE >::make(), and te::xml::ReaderFactory::sm_defaultReaderType.

Referenced by te::plugin::GetInstalledPlugin(), te::xsd::Read(), te::serialize::xml::Read(), te::serialize::xml::ReadDataSourceInfo(), te::serialize::xml::ReadDialect(), te::qt::af::ReadProject(), te::xsd::serialize::ReadSchema(), and te::qt::widgets::ReadSymbolLibrary().

te::xml::Reader * te::xml::ReaderFactory::make ( const std::string &  readerType)
staticinherited

It creates a new XML reader.

Parameters
readerTypeThe type of XML reader to be created.
Returns
A new XML reader.

Definition at line 37 of file ReaderFactory.cpp.

References te::common::Convert2UCase(), and te::common::AbstractFactory< TPRODUCT, TFACTORYKEY, TKEYCOMPARE >::make().

void te::xml::ReaderFactory::setDefaultReader ( const std::string &  readerType)
staticinherited

It sets the default driver used to create the XML reader objects.

Parameters
readerTypeThe default driver name for creating XML reader objects.

Definition at line 43 of file ReaderFactory.cpp.

References te::common::Convert2UCase().

Friends And Related Function Documentation

friend class Module
friend

Definition at line 69 of file ReaderFactory.h.

Member Data Documentation

std::string te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::m_factoryKey
protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

te::xerces::ReaderFactory * te::xerces::ReaderFactory::sm_factory
staticprivate

A pointer to the global Xerces XML Reader factory.

Definition at line 67 of file ReaderFactory.h.

The documentation for this class was generated from the following files:
