This class implements a concrete tool to acquire a polygon geometry. More...

#include <PolygonAcquire.h>

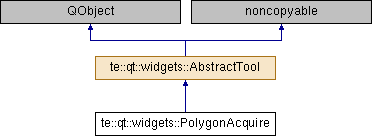

Inheritance diagram for te::qt::widgets::PolygonAcquire:

Signals
void	polygonAquired (te::gm::Polygon *poly)

Public Member Functions
virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Initializer Methods
Methods related to instantiation and destruction.
	PolygonAcquire (MapDisplay display, QObject parent=0)
	It constructs a PolygonAcquire tool associated with the given map display. More...

	~PolygonAcquire ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

Protected Attributes
QBrush	m_brush
	The brush used to draw the path. More...

std::vector< te::gm::Coord2D >	m_coords
	The coord list managed by the measure tool. More...

QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

bool	m_isFinished
	A flag that indicates if the operations was finished. More...

te::gm::Coord2D	m_lastPos
	The last position captured on mouse move event. More...

QPen	m_pen
	The pen used to draw the path. More...

Private Slots
void	onExtentChanged ()

Private Member Functions
void	clear ()

void	drawGeometry ()

void	drawLine (Canvas &canvas)

void	drawPolygon (Canvas &canvas)

Detailed Description

This class implements a concrete tool to acquire a polygon geometry.

Definition at line 58 of file PolygonAcquire.h.

Constructor & Destructor Documentation

te::qt::widgets::PolygonAcquire::PolygonAcquire	(	MapDisplay *	display,
		QObject *	parent = `0`
	)

It constructs a PolygonAcquire tool associated with the given map display.

Parameters

display	The map display associated with the tool.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

Definition at line 44 of file PolygonAcquire.cpp.

References m_brush, te::qt::widgets::AbstractTool::m_display, m_pen, and onExtentChanged().

te::qt::widgets::PolygonAcquire::~PolygonAcquire ( )

Destructor.

Definition at line 57 of file PolygonAcquire.cpp.

Member Function Documentation

void te::qt::widgets::PolygonAcquire::clear ( )

private

Definition at line 202 of file PolygonAcquire.cpp.

void te::qt::widgets::PolygonAcquire::drawGeometry ( )

private

Definition at line 136 of file PolygonAcquire.cpp.

References te::gm::Envelope::isValid(), te::gm::Envelope::m_llx, te::gm::Envelope::m_lly, te::gm::Envelope::m_urx, te::gm::Envelope::m_ury, and te::qt::widgets::Canvas::setDevice().

void te::qt::widgets::PolygonAcquire::drawLine ( Canvas & canvas )

private

Definition at line 160 of file PolygonAcquire.cpp.

References te::qt::widgets::Canvas::draw(), te::gm::LineStringType, te::qt::widgets::Canvas::setLineColor(), te::qt::widgets::Canvas::setLineWidth(), and te::gm::LineString::setPoint().

void te::qt::widgets::PolygonAcquire::drawPolygon ( Canvas & canvas )

private

Definition at line 177 of file PolygonAcquire.cpp.

References te::qt::widgets::Canvas::draw(), te::gm::LineStringType, te::gm::PolygonType, te::gm::LineString::setPoint(), te::qt::widgets::Canvas::setPolygonContourColor(), te::qt::widgets::Canvas::setPolygonContourWidth(), te::qt::widgets::Canvas::setPolygonFillColor(), and te::gm::CurvePolygon::setRingN().

bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

Definition at line 50 of file AbstractTool.cpp.

Referenced by te::qt::widgets::ZoomKeyboard::eventFilter(), and te::qt::widgets::ZoomWheel::eventFilter().

bool te::qt::widgets::PolygonAcquire::mouseDoubleClickEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 111 of file PolygonAcquire.cpp.

References te::gm::LineStringType, te::gm::PolygonType, te::gm::LineString::setPoint(), te::gm::CurvePolygon::setRingN(), and te::gm::CurvePolygon::setSRID().

bool te::qt::widgets::PolygonAcquire::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 80 of file PolygonAcquire.cpp.

bool te::qt::widgets::PolygonAcquire::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 63 of file PolygonAcquire.cpp.

bool te::qt::widgets::PolygonAcquire::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

Definition at line 106 of file PolygonAcquire.cpp.

void te::qt::widgets::PolygonAcquire::onExtentChanged ( )

privateslot

Definition at line 212 of file PolygonAcquire.cpp.

Referenced by PolygonAcquire().

void te::qt::widgets::PolygonAcquire::polygonAquired ( te::gm::Polygon * poly )

signal

void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Definition at line 98 of file AbstractTool.cpp.

Referenced by te::edit::CreateLineTool::CreateLineTool(), te::edit::CreatePolygonTool::CreatePolygonTool(), te::qt::widgets::ExtentAcquire::ExtentAcquire(), te::qt::widgets::Info::Info(), te::qt::widgets::Measure::Measure(), te::qt::widgets::Pan::Pan(), te::qt::widgets::PanExtent::PanExtent(), te::qt::widgets::PointPicker::PointPicker(), te::qt::widgets::Selection::Selection(), te::qt::widgets::ZoomArea::ZoomArea(), and te::qt::widgets::ZoomClick::ZoomClick().

Member Data Documentation

QBrush te::qt::widgets::PolygonAcquire::m_brush

protected

The brush used to draw the path.

Definition at line 122 of file PolygonAcquire.h.

Referenced by PolygonAcquire().

std::vector<te::gm::Coord2D> te::qt::widgets::PolygonAcquire::m_coords

protected

The coord list managed by the measure tool.

Definition at line 119 of file PolygonAcquire.h.

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Referenced by te::qt::widgets::AbstractTool::AbstractTool(), te::qt::widgets::CoordTracking::CoordTracking(), te::edit::CreateLineTool::CreateLineTool(), te::edit::CreatePolygonTool::CreatePolygonTool(), te::qt::widgets::Measure::Measure(), te::edit::MoveGeometryTool::MoveGeometryTool(), PolygonAcquire(), te::edit::VertexTool::VertexTool(), and te::qt::widgets::ZoomKeyboard::ZoomKeyboard().

bool te::qt::widgets::PolygonAcquire::m_isFinished

protected

A flag that indicates if the operations was finished.

Definition at line 123 of file PolygonAcquire.h.

te::gm::Coord2D te::qt::widgets::PolygonAcquire::m_lastPos

protected

The last position captured on mouse move event.

Definition at line 120 of file PolygonAcquire.h.

QPen te::qt::widgets::PolygonAcquire::m_pen

protected

The pen used to draw the path.

Definition at line 121 of file PolygonAcquire.h.

Referenced by PolygonAcquire().

The documentation for this class was generated from the following files:

/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/qt/widgets/tools/PolygonAcquire.h
/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/qt/widgets/tools/PolygonAcquire.cpp
