#include <ProfileTools.h>

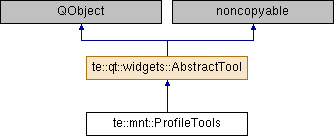

Inheritance diagram for te::mnt::ProfileTools:

Public Member Functions
bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

	ProfileTools (te::qt::widgets::MapDisplay display, EditType type, QObject parent=0)

virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

void	setLines (std::vector< te::gm::LineString * > &l)

void	setType (EditType t)

	~ProfileTools ()

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

Protected Attributes
QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

std::vector< te::gm::LineString * >	m_lines

te::gm::LineString *	m_selectline

EditType	m_type

Detailed Description

Definition at line 50 of file ProfileTools.h.

Constructor & Destructor Documentation

te::mnt::ProfileTools::ProfileTools	(	te::qt::widgets::MapDisplay *	display,
		EditType	type,
		QObject *	parent = `0`
	)

te::mnt::ProfileTools::~ProfileTools ( )

Member Function Documentation

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

bool te::mnt::ProfileTools::mouseDoubleClickEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::mnt::ProfileTools::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::mnt::ProfileTools::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::mnt::ProfileTools::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

void te::mnt::ProfileTools::setLines ( std::vector< te::gm::LineString * > & l )

inline

Definition at line 60 of file ProfileTools.h.

void te::mnt::ProfileTools::setType ( EditType t )

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

std::vector<te::gm::LineString*> te::mnt::ProfileTools::m_lines

protected

Definition at line 72 of file ProfileTools.h.

te::gm::LineString* te::mnt::ProfileTools::m_selectline

protected

Definition at line 73 of file ProfileTools.h.

EditType te::mnt::ProfileTools::m_type

protected

Definition at line 71 of file ProfileTools.h.

The documentation for this class was generated from the following file:

C:/CC_master/terralib5/src/terralib/mnt/qt/ProfileTools.h
