te::xsd::List Class Reference

It is used to define a simple type element as a list of values. More...

#include <List.h>

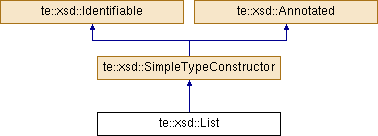

Inheritance diagram for te::xsd::List:

Public Member Functions
SimpleTypeConstructor *	clone () const
	It creates a clone of the object. More...
Annotation *	getAnnotation () const
	It returns the associated annotation. More...
std::string *	getId () const
	It returns a pointer (may be NULL) to the object id. More...
QName *	getItemType () const
	It returns name of a built-in data type or simpleType element defined in this or another schema. More...
SimpleType *	getSimpleType () const
	It returns list internal simple type. More...
	List (Annotation *ann=0, std::string *id=0)
	Constructor. More...
	List (const List &rhs)
	Copy constructor. More...
List &	operator= (const List &rhs)
	Assignment operator. More...
void	setAnnotation (Annotation *ann)
	It sets the associated annotation. More...
void	setId (std::string *id)
	it sets the id. More...
void	setItemType (QName *name)
	It sets the name of a built-in data type or simpleType element defined in this or another schema. More...
void	setSimpleType (SimpleType *a)
	It sets the list internal simple type. More...
	~List ()
	Destructor. More...

Private Attributes
SimpleType *	m_internalSimpleType
	Used when the list has an internal simple type. (Optional if m_itemType is present) More...
QName *	m_itemType
	It specifies the name of a built-in data type or simpleType element defined in this or another schema. This attribute is not allowed if the content contains a simpleType element, otherwise it is required. More...

Detailed Description

It is used to define a simple type element as a list of values.

Definition at line 45 of file List.h.

Constructor & Destructor Documentation

te::xsd::List::List	(	Annotation *	ann = 0,
		std::string *	id = 0
	)

Constructor.

Parameters

ann	An annotation.
id	It specifies a unique ID for the element.

Note

The List object will take the ownership of the annotation and id.

te::xsd::List::List

(

const List &

rhs

)

Copy constructor.

Parameters

rhs	Right-hand-side object.

te::xsd::List::~List

(

)

Destructor.

Member Function Documentation

SimpleTypeConstructor* te::xsd::List::clone ( ) const

virtual

It creates a clone of the object.

Returns

A clone of the object. The caller will take the ownership of the returned pointer.

Implements te::xsd::SimpleTypeConstructor.

Annotation* te::xsd::Annotated::getAnnotation ( ) const

inherited

It returns the associated annotation.

Returns

The associated annotation.

std::string* te::xsd::Identifiable::getId ( ) const

inherited

It returns a pointer (may be NULL) to the object id.

QName* te::xsd::List::getItemType

(

)

const

It returns name of a built-in data type or simpleType element defined in this or another schema.

Returns

The name of a built-in data type or simpleType element defined in this or another schema.

SimpleType* te::xsd::List::getSimpleType

(

)

const

It returns list internal simple type.

Returns

The list internal simple type.

List& te::xsd::List::operator=

(

const List &

rhs

)

Assignment operator.

Parameters

rhs	Right-hand-side object.

Returns

A reference to this object.

void te::xsd::Annotated::setAnnotation ( Annotation *  ann )

inherited

It sets the associated annotation.

Parameters

ann	The annotation to be associated to the object. The annotated class will take the ownership of the given pointer.

void te::xsd::Identifiable::setId ( std::string *  id )

inherited

it sets the id.

Parameters

id	The id to be associated to the object. It will take the ownership of the given string.

void te::xsd::List::setItemType

(

QName *

name

)

It sets the name of a built-in data type or simpleType element defined in this or another schema.

Parameters

name	The name of a built-in data type or simpleType element defined in this or another schema.

Note

Setting a reference will turn to NULL the internal simpleType.

The List object will take the ownership of the given pointer.

void te::xsd::List::setSimpleType

(

SimpleType *

a

)

It sets the list internal simple type.

Parameters

a	The list internal simple type.

Note

Setting a reference will turn to NULL the itemType.

The List object will take the ownership of the given pointer.

Member Data Documentation

SimpleType* te::xsd::List::m_internalSimpleType

private

Used when the list has an internal simple type. (Optional if m_itemType is present)

Definition at line 117 of file List.h.

QName* te::xsd::List::m_itemType

private

It specifies the name of a built-in data type or simpleType element defined in this or another schema. This attribute is not allowed if the content contains a simpleType element, otherwise it is required.

Definition at line 116 of file List.h.

---

The documentation for this class was generated from the following file:

• C:/CC_master/terralib5/src/terralib/xsd/List.h
