#include <GeometriesUpdateTool.h>

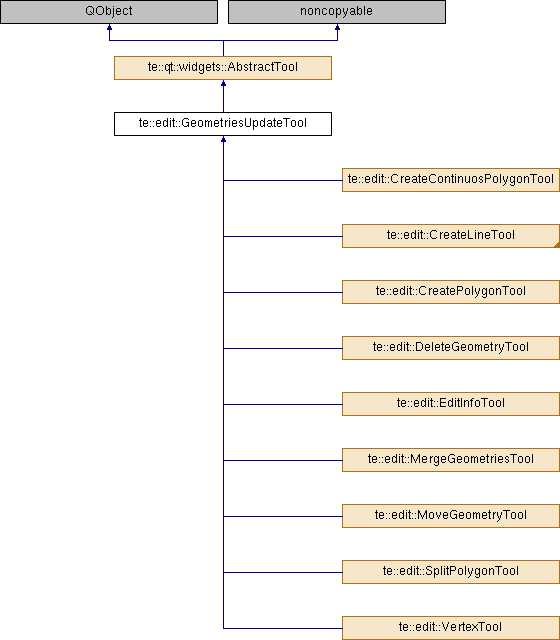

Inheritance diagram for te::edit::GeometriesUpdateTool:

Signals
void	endSelectCell (const std::string &, const std::size_t &, std::size_t &)

void	geometriesEdited ()

void	toolDeleted ()

Public Member Functions
	GeometriesUpdateTool (te::qt::widgets::MapDisplay display, te::map::AbstractLayer layer, QObject *parent=0)

bool	isInUse () const

virtual void	resetVisualizationTool ()

virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

virtual	~GeometriesUpdateTool ()

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

virtual bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

virtual bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

Protected Member Functions
virtual void	saveGeometry (te::gm::Geometry *gm, const int &op)

Protected Attributes
QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_isInUse

te::map::AbstractLayer *	m_layer

Detailed Description

Definition at line 57 of file GeometriesUpdateTool.h.

Constructor & Destructor Documentation

te::edit::GeometriesUpdateTool::GeometriesUpdateTool	(	te::qt::widgets::MapDisplay *	display,
		te::map::AbstractLayer *	layer,
		QObject *	parent = `0`
	)

virtual te::edit::GeometriesUpdateTool::~GeometriesUpdateTool ( )

virtual

Member Function Documentation

void te::edit::GeometriesUpdateTool::endSelectCell	(	const std::string &	,
		const std::size_t &	,
		std::size_t &
	)

signal

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signal

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::qt::widgets::PolygonAcquire, te::mnt::ProfileTools, te::edit::AggregateAreaTool, and te::edit::SubtractAreaTool.

virtual bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Selection, te::edit::MoveGeometryTool, te::edit::CreateContinuosPolygonTool, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::CoordTracking, te::qt::widgets::Pan, te::qt::widgets::ZoomArea, te::mnt::ProfileTools, te::qt::plugins::mnt::ShowValuesTool, te::edit::AggregateAreaTool, and te::edit::SubtractAreaTool.

virtual bool te::qt::widgets::AbstractTool::mousePressEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Selection, te::edit::DeleteGeometryTool, te::edit::MoveGeometryTool, te::edit::CreateContinuosPolygonTool, te::edit::CreateLineTool, te::edit::CreatePolygonTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, te::qt::widgets::ZoomLeftAndRightClick, te::mnt::ProfileTools, te::edit::AggregateAreaTool, te::edit::EditInfoTool, and te::edit::SubtractAreaTool.

virtual bool te::qt::widgets::AbstractTool::mouseReleaseEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Info, te::qt::widgets::Selection, te::edit::MoveGeometryTool, te::edit::CreateContinuosPolygonTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomArea, te::qt::widgets::PointPicker, te::mnt::ProfileTools, and te::qt::widgets::ReadPixelTool.

virtual void te::edit::GeometriesUpdateTool::resetVisualizationTool ( )

virtual

Reimplemented in te::edit::VertexTool, te::edit::CreateContinuosPolygonTool, and te::edit::CreatePolygonTool.

virtual void te::edit::GeometriesUpdateTool::saveGeometry	(	te::gm::Geometry *	gm,
		const int &	op
	)

protectedvirtual

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signal

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Feature* te::edit::GeometriesUpdateTool::m_feature

protected

Definition at line 89 of file GeometriesUpdateTool.h.

bool te::edit::GeometriesUpdateTool::m_isInUse

protected

Definition at line 87 of file GeometriesUpdateTool.h.

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protected

Definition at line 90 of file GeometriesUpdateTool.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/terralib5/src/terralib/edit/qt/tools/GeometriesUpdateTool.h
