te::qt::widgets::ImageItem Class Referenceabstract

#include <ImageItem.h>

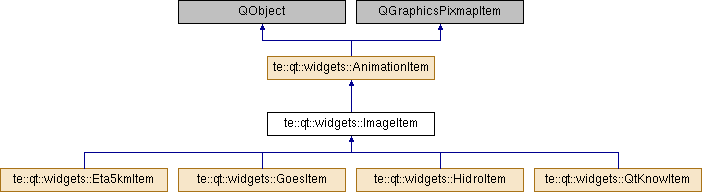

Inheritance diagram for te::qt::widgets::ImageItem:
te::qt::widgets::AnimationItem te::qt::widgets::Eta5kmItem te::qt::widgets::GoesItem te::qt::widgets::HidroItem te::qt::widgets::QtKnowItem

Public Member Functions

void adjustDataToAnimationTemporalExtent ()
 Adjust data for a given time animation period. More...

void calculateCurrentFile (const unsigned int &curTime)
 Calculate current file. More...

void draw ()
 Draw the current image item. More...

virtual void drawCurrentImage (QPainter *p)
 Get current image. More...

void drawForward (const unsigned int &curTime)
 Draw current image item. curTime The animation current time. More...

void erase (const unsigned int &curTime)
 Draw current image item. curTime The animation current time. More...

void generateRoute ()
 It generate the raster route. More...

virtual bool getCtlParameters ()
 Get control parameters. More...

QAbstractAnimation::Direction getDirection ()
 Gets the Animation Item direction. More...

unsigned int getDuration ()
 Gets the Animation Item duration. More...

QPoint getPosInDeviceCoordinate ()
 It returns the Animation Item position in device coordinate. More...

QRect getRect ()
 It gets image rect in device coordinate. More...

 ImageItem ()
 Empty Constructor. More...

 ImageItem (const QString &title, const QString &folder, te::qt::widgets::MapDisplay *display)
 Constructor It constructs a Image Item. More...

virtual void loadCurrentImage ()
 Get current image. More...

virtual bool loadData ()
 Load temporal raster data. More...

void paint (QPainter *, const QStyleOptionGraphicsItem *, QWidget *)
 Paint a image item. More...

void setDirection (const QAbstractAnimation::Direction &direction)
 Sets the Animation Item direction. More...

void setDuration (const unsigned int &duration)
 Sets the Animation Item duration. More...

void setImagePosition (const QPointF &p, const QRectF &dr)

void setLUT (const std::vector< std::pair< int, QColor > > &tab)
 Sets the LUT. tab The LUT information. More...

void tryDoReprojectionUsingAffineTransform (QPainter *painter)
 It try do reprojection using affine transfom. For small areas it gives a good result, however, for larger areas the result is not good. More...

virtual ~ImageItem ()
 Destructor It destructs a Image Item. More...


Public Attributes

Animationm_animation
 The animation this item. More...

QVector< QString > m_animationFiles
 The png files in display projection. It contains only the portions to be animated. More...

QVector< QPointF > m_animationRoute
 It contains only the portions to be animated. More...

QVector< te::dt::TimeInstantm_animationTime
 The animation time. It contains only the portions to be animated. More...

bool m_automaticPan
 True if automatic pan over this item. More...

QString m_baseFile
 Base file name. More...

QString m_currentImageFile
 Image to be displayed on paint event animation. More...

unsigned int m_curTimeDuration
 Current time (ms). Its value is between 0 and the total duration. More...

QDir m_dir
 The image data directory. More...

QAbstractAnimation::Direction m_direction
 The direction. More...

te::qt::widgets::MapDisplaym_display
 Indicates where the icon item is displayed. More...

unsigned int m_duration
 The duration this item. More...

QVector< QString > m_files
 The input files. More...

QImage * m_image
 current image More...

QPointF m_imageCenterPos
 Center of the image. More...

QRectF m_imaRect
 Image location. More...

std::map< uchar, QColor > m_lut
 LUT. More...

QMatrix m_matrix
 The display transformation matrix. More...

size_t m_ncols
 number of colunms. More...

size_t m_nlines
 number of lines. More...

double m_norFinalTime
 Normalized final time (between 0 and 1). More...

double m_norInitialTime
 Normalized initial time (between 0 and 1). More...

int m_opacity
 Opacity. More...

double m_panFactor
 the range is between 0.002 and 0.5 More...

QPointF m_pos
 The icon position. More...

QString m_preffix
 File preffix. More...

te::gm::LineStringm_route
 The input path in world coordenates. More...

int m_SRID
 The input route srid. More...

QImage m_staticRepresentation
 Static representation of the animation. More...

QString m_suffix
 File suffix. More...

QVector< te::dt::TimeInstantm_time
 The input time. More...

QString m_title
 The icon item title. More...

float m_undef
 undef value. More...


Properties

QPointF pos


Private Member Functions

virtual te::dt::TimeInstant getTime (QString file)=0
 Get time of the raster data. More...


Detailed Description

Definition at line 62 of file ImageItem.h.

Constructor & Destructor Documentation

te::qt::widgets::ImageItem::ImageItem ( )

Empty Constructor.

te::qt::widgets::ImageItem::ImageItem ( const QString &  title,
const QString &  folder,
te::qt::widgets::MapDisplay display
)

Constructor It constructs a Image Item.

Parameters
titleThe image item title.
folderThe absolute folder path name.
displayWhere the pixmap item is displayed.
virtual te::qt::widgets::ImageItem::~ImageItem ( )
virtual

Destructor It destructs a Image Item.

Member Function Documentation

void te::qt::widgets::ImageItem::adjustDataToAnimationTemporalExtent ( )
virtual

Adjust data for a given time animation period.

Reimplemented from te::qt::widgets::AnimationItem.

void te::qt::widgets::ImageItem::calculateCurrentFile ( const unsigned int &  curTime)

Calculate current file.

Parameters
curTimecurrent time
void te::qt::widgets::ImageItem::draw ( )
virtual

Draw the current image item.

Implements te::qt::widgets::AnimationItem.

virtual void te::qt::widgets::ImageItem::drawCurrentImage ( QPainter *  p)
virtual

Get current image.

p Pointer to QPainter. r Image rect in device coordinate. ima Pointer to QImage.

void te::qt::widgets::ImageItem::drawForward ( const unsigned int &  curTime)
virtual

Draw current image item. curTime The animation current time.

Implements te::qt::widgets::AnimationItem.

void te::qt::widgets::ImageItem::erase ( const unsigned int &  curTime)
virtual

Draw current image item. curTime The animation current time.

Implements te::qt::widgets::AnimationItem.

void te::qt::widgets::ImageItem::generateRoute ( )

It generate the raster route.

animation The animation control.

Parameters
countThe temporal data size.
virtual bool te::qt::widgets::ImageItem::getCtlParameters ( )
virtual

Get control parameters.

Reimplemented in te::qt::widgets::Eta5kmItem, and te::qt::widgets::HidroItem.

QAbstractAnimation::Direction te::qt::widgets::AnimationItem::getDirection ( )
inherited

Gets the Animation Item direction.

Returns
The Animation Item direction.
unsigned int te::qt::widgets::AnimationItem::getDuration ( )
inherited

Gets the Animation Item duration.

Returns
The Animation Item duration.
QPoint te::qt::widgets::AnimationItem::getPosInDeviceCoordinate ( )
inherited

It returns the Animation Item position in device coordinate.

Returns
Position in device coordinate.
QRect te::qt::widgets::ImageItem::getRect ( )

It gets image rect in device coordinate.

virtual te::dt::TimeInstant te::qt::widgets::ImageItem::getTime ( QString  file)
privatepure virtual

Get time of the raster data.

file raster data file name.

The time instant.

Implemented in te::qt::widgets::Eta5kmItem, te::qt::widgets::HidroItem, te::qt::widgets::GoesItem, and te::qt::widgets::QtKnowItem.

virtual void te::qt::widgets::ImageItem::loadCurrentImage ( )
virtual

Get current image.

pointer to current image.

Reimplemented in te::qt::widgets::Eta5kmItem, and te::qt::widgets::HidroItem.

virtual bool te::qt::widgets::ImageItem::loadData ( )
virtual

Load temporal raster data.

True if success.

Reimplemented in te::qt::widgets::Eta5kmItem, and te::qt::widgets::HidroItem.

void te::qt::widgets::ImageItem::paint ( QPainter *  ,
const QStyleOptionGraphicsItem *  ,
QWidget *
)
virtual

Paint a image item.

Implements te::qt::widgets::AnimationItem.

void te::qt::widgets::AnimationItem::setDirection ( const QAbstractAnimation::Direction &  direction)
inherited

Sets the Animation Item direction.

Parameters
directionThe Animation Item direction.
void te::qt::widgets::AnimationItem::setDuration ( const unsigned int &  duration)
inherited

Sets the Animation Item duration.

Parameters
durationThe Animation Item duration.
void te::qt::widgets::ImageItem::setImagePosition ( const QPointF &  p,
const QRectF &  dr
)
void te::qt::widgets::ImageItem::setLUT ( const std::vector< std::pair< int, QColor > > &  tab)

Sets the LUT. tab The LUT information.

void te::qt::widgets::ImageItem::tryDoReprojectionUsingAffineTransform ( QPainter *  painter)

It try do reprojection using affine transfom. For small areas it gives a good result, however, for larger areas the result is not good.

Parameters
painterPainter that will be configured to try do reprojection.

Member Data Documentation

Animation* te::qt::widgets::AnimationItem::m_animation
inherited

The animation this item.

Definition at line 159 of file AnimationItem.h.

QVector<QString> te::qt::widgets::ImageItem::m_animationFiles

The png files in display projection. It contains only the portions to be animated.

Definition at line 197 of file ImageItem.h.

QVector<QPointF> te::qt::widgets::AnimationItem::m_animationRoute
inherited

It contains only the portions to be animated.

Definition at line 152 of file AnimationItem.h.

QVector<te::dt::TimeInstant> te::qt::widgets::AnimationItem::m_animationTime
inherited

The animation time. It contains only the portions to be animated.

Definition at line 150 of file AnimationItem.h.

bool te::qt::widgets::AnimationItem::m_automaticPan
inherited

True if automatic pan over this item.

Definition at line 154 of file AnimationItem.h.

QString te::qt::widgets::ImageItem::m_baseFile

Base file name.

Definition at line 200 of file ImageItem.h.

QString te::qt::widgets::ImageItem::m_currentImageFile

Image to be displayed on paint event animation.

Definition at line 198 of file ImageItem.h.

unsigned int te::qt::widgets::AnimationItem::m_curTimeDuration
inherited

Current time (ms). Its value is between 0 and the total duration.

Definition at line 156 of file AnimationItem.h.

QDir te::qt::widgets::ImageItem::m_dir

The image data directory.

Definition at line 192 of file ImageItem.h.

QAbstractAnimation::Direction te::qt::widgets::AnimationItem::m_direction
inherited

The direction.

Definition at line 161 of file AnimationItem.h.

te::qt::widgets::MapDisplay* te::qt::widgets::AnimationItem::m_display
inherited

Indicates where the icon item is displayed.

Definition at line 146 of file AnimationItem.h.

unsigned int te::qt::widgets::AnimationItem::m_duration
inherited

The duration this item.

Definition at line 160 of file AnimationItem.h.

QVector<QString> te::qt::widgets::ImageItem::m_files

The input files.

Definition at line 196 of file ImageItem.h.

QImage* te::qt::widgets::ImageItem::m_image

current image

Definition at line 199 of file ImageItem.h.

QPointF te::qt::widgets::ImageItem::m_imageCenterPos

Center of the image.

Definition at line 205 of file ImageItem.h.

QRectF te::qt::widgets::ImageItem::m_imaRect

Image location.

Definition at line 203 of file ImageItem.h.

std::map<uchar, QColor> te::qt::widgets::ImageItem::m_lut

LUT.

Definition at line 204 of file ImageItem.h.

QMatrix te::qt::widgets::AnimationItem::m_matrix
inherited

The display transformation matrix.

Definition at line 153 of file AnimationItem.h.

size_t te::qt::widgets::ImageItem::m_ncols

number of colunms.

Definition at line 194 of file ImageItem.h.

size_t te::qt::widgets::ImageItem::m_nlines

number of lines.

Definition at line 193 of file ImageItem.h.

double te::qt::widgets::AnimationItem::m_norFinalTime
inherited

Normalized final time (between 0 and 1).

Definition at line 158 of file AnimationItem.h.

double te::qt::widgets::AnimationItem::m_norInitialTime
inherited

Normalized initial time (between 0 and 1).

Definition at line 157 of file AnimationItem.h.

int te::qt::widgets::AnimationItem::m_opacity
inherited

Opacity.

Definition at line 162 of file AnimationItem.h.

double te::qt::widgets::AnimationItem::m_panFactor
inherited

the range is between 0.002 and 0.5

Definition at line 155 of file AnimationItem.h.

QPointF te::qt::widgets::AnimationItem::m_pos
inherited

The icon position.

Definition at line 148 of file AnimationItem.h.

QString te::qt::widgets::ImageItem::m_preffix

File preffix.

Definition at line 202 of file ImageItem.h.

te::gm::LineString* te::qt::widgets::AnimationItem::m_route
inherited

The input path in world coordenates.

Definition at line 151 of file AnimationItem.h.

int te::qt::widgets::AnimationItem::m_SRID
inherited

The input route srid.

Definition at line 147 of file AnimationItem.h.

QImage te::qt::widgets::ImageItem::m_staticRepresentation

Static representation of the animation.

Definition at line 206 of file ImageItem.h.

QString te::qt::widgets::ImageItem::m_suffix

File suffix.

Definition at line 201 of file ImageItem.h.

QVector<te::dt::TimeInstant> te::qt::widgets::AnimationItem::m_time
inherited

The input time.

Definition at line 149 of file AnimationItem.h.

QString te::qt::widgets::AnimationItem::m_title
inherited

The icon item title.

Definition at line 145 of file AnimationItem.h.

float te::qt::widgets::ImageItem::m_undef

undef value.

Definition at line 195 of file ImageItem.h.

Property Documentation

QPointF te::qt::widgets::AnimationItem::pos
readwriteinherited

Definition at line 67 of file AnimationItem.h.


The documentation for this class was generated from the following file:
