te::qt::widgets::GeometryPropertyWidgetFactory Class Reference

A factory to build the string property widget object. More...

#include <GeometryPropertyWidgetFactory.h>

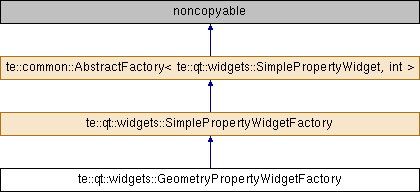

Inheritance diagram for te::qt::widgets::GeometryPropertyWidgetFactory:
te::qt::widgets::SimplePropertyWidgetFactory te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget, int >

Public Types

typedef FactoryDictionary< AbstractFactory< te::qt::widgets::SimplePropertyWidget, int, std::less< int > >, int, std::less< int > > dictionary_type

typedef AbstractFactory factory_type


Public Member Functions

const int & getKey () const
 It returns the factory key associated to the concreate factory. More...

int getType () const
 It returns the type of component widget that the factory knows how to create. More...

 ~GeometryPropertyWidgetFactory ()


Static Public Member Functions

static void finalize ()

static const factory_typefind (const int &factoryKey)

static dictionary_typegetDictionary ()
 It returns a reference to the internal dictionary of concrete factories. More...

static void initialize ()

static te::qt::widgets::SimplePropertyWidgetmake (const int &type)

static te::qt::widgets::SimplePropertyWidgetmake (const int &type, QWidget *parent=0)


Protected Member Functions

te::qt::widgets::SimplePropertyWidgetbuild ()
 Concrete factories (derived from this one) must implement this method in order to create objects. More...

virtual te::qt::widgets::SimplePropertyWidgetcreate (QWidget *parent=0)

 GeometryPropertyWidgetFactory ()


Protected Attributes

int m_factoryKey
 The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...


Static Private Attributes

static GeometryPropertyWidgetFactorysm_factory


Detailed Description

A factory to build the string property widget object.

Definition at line 50 of file GeometryPropertyWidgetFactory.h.

Member Typedef Documentation

typedef FactoryDictionary<AbstractFactory<te::qt::widgets::SimplePropertyWidget , int , std::less<int > >, int , std::less<int > > te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::dictionary_type
inherited

Definition at line 73 of file AbstractFactory.h.

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

te::qt::widgets::GeometryPropertyWidgetFactory::~GeometryPropertyWidgetFactory ( )
te::qt::widgets::GeometryPropertyWidgetFactory::GeometryPropertyWidgetFactory ( )
protected

Member Function Documentation

te::qt::widgets::SimplePropertyWidget* te::qt::widgets::GeometryPropertyWidgetFactory::build ( )
protectedvirtual

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns
It returns an object created by the concrete factory.

Implements te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget, int >.

virtual te::qt::widgets::SimplePropertyWidget* te::qt::widgets::GeometryPropertyWidgetFactory::create ( QWidget *  parent = 0)
protectedvirtual
static void te::qt::widgets::GeometryPropertyWidgetFactory::finalize ( )
static
static const factory_type* te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::find ( const int &  factoryKey)
staticinherited
static dictionary_type& te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::getDictionary ( )
staticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns
A reference to the internal dictionary.
const int & te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::getKey ( ) const
inherited

It returns the factory key associated to the concreate factory.

Returns
The factory key associated to the concreate factory.
int te::qt::widgets::GeometryPropertyWidgetFactory::getType ( ) const
virtual

It returns the type of component widget that the factory knows how to create.

Returns
The type of component widget that the factory knows how to create.

Implements te::qt::widgets::SimplePropertyWidgetFactory.

static void te::qt::widgets::GeometryPropertyWidgetFactory::initialize ( )
static
static te::qt::widgets::SimplePropertyWidget* te::qt::widgets::SimplePropertyWidgetFactory::make ( const int &  type)
staticinherited
static te::qt::widgets::SimplePropertyWidget* te::qt::widgets::SimplePropertyWidgetFactory::make ( const int &  type,
QWidget *  parent = 0
)
staticinherited

Member Data Documentation

int te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::m_factoryKey
protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

GeometryPropertyWidgetFactory* te::qt::widgets::GeometryPropertyWidgetFactory::sm_factory
staticprivate

Definition at line 72 of file GeometryPropertyWidgetFactory.h.


The documentation for this class was generated from the following file:
