This is the concrete factory for the database box loader strategy. More...

#include <BoxLoaderStrategyFactory.h>

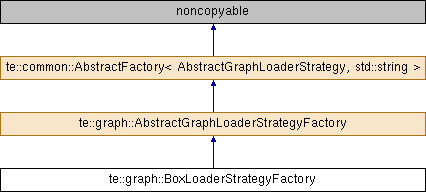

Inheritance diagram for te::graph::BoxLoaderStrategyFactory:

Public Types
typedef FactoryDictionary< AbstractFactory< AbstractGraphLoaderStrategy, std::string, std::less< std::string > >, std::string, std::less< std::string > >	dictionary_type

typedef AbstractFactory	factory_type

Public Member Functions
const std::string &	getKey () const
	It returns the factory key associated to the concreate factory. More...

const std::string &	getType () const
	Returns the type (name) of this factory. More...

	~BoxLoaderStrategyFactory ()
	Destructor. More...

Static Public Member Functions
static void	finalize ()
	It finalizes the factory: the singleton instance will be destroyed and will be unregistered from the abstract factory ... More...

static const factory_type *	find (const std::string &factoryKey)

static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...

static void	initialize ()
	It initializes the factory: the singleton instance will be registered in the abstract factory ... More...

static AbstractGraphLoaderStrategy *	make ()
	It creates and returns default graph loader strategy. More...

static AbstractGraphLoaderStrategy *	make (const std::string &lsType)
	It creates graph loader strategy with the proper type. More...

static AbstractGraphLoaderStrategy *	make (const std::string &lsType, GraphMetadata *gm)
	It creates graph loader strategy with the proper type. More...

Protected Member Functions
	BoxLoaderStrategyFactory ()
	Constructor. More...

te::graph::AbstractGraphLoaderStrategy *	build ()
	Builder Function used to create the class object. More...

te::graph::AbstractGraphLoaderStrategy *	create (GraphMetadata *gm)
	This method must be implemented by subclasses (load strategy types). More...

Protected Attributes
std::string	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Static Private Attributes
static BoxLoaderStrategyFactory *	sm_factory
	Static instance used to register the factory. More...

Detailed Description

This is the concrete factory for the database box loader strategy.

See also: te::graph::AbstractLoaderStrategyFactory

Definition at line 47 of file BoxLoaderStrategyFactory.h.

Member Typedef Documentation

typedef FactoryDictionary<AbstractFactory<AbstractGraphLoaderStrategy , std::string , std::less<std::string > >, std::string , std::less<std::string > > te::common::AbstractFactory< AbstractGraphLoaderStrategy , std::string , std::less<std::string > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

typedef AbstractFactory te::common::AbstractFactory< AbstractGraphLoaderStrategy , std::string , std::less<std::string > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

te::graph::BoxLoaderStrategyFactory::~BoxLoaderStrategyFactory ( )

inline

Destructor.

Definition at line 52 of file BoxLoaderStrategyFactory.h.

te::graph::BoxLoaderStrategyFactory::BoxLoaderStrategyFactory ( )

protected

Constructor.

Member Function Documentation

te::graph::AbstractGraphLoaderStrategy* te::graph::BoxLoaderStrategyFactory::build ( )

protectedvirtual

Builder Function used to create the class object.

Implements te::common::AbstractFactory< AbstractGraphLoaderStrategy, std::string >.

te::graph::AbstractGraphLoaderStrategy* te::graph::BoxLoaderStrategyFactory::create ( GraphMetadata * gm )

protectedvirtual

This method must be implemented by subclasses (load strategy types).

Parameters

gm	The necessary graph information

Returns: The new loader strategy.

Note: The caller will take the ownership of the returned pointer.

Implements te::graph::AbstractGraphLoaderStrategyFactory.

static void te::graph::BoxLoaderStrategyFactory::finalize ( )

static

It finalizes the factory: the singleton instance will be destroyed and will be unregistered from the abstract factory ...

static const factory_type* te::common::AbstractFactory< AbstractGraphLoaderStrategy , std::string , std::less<std::string > >::find ( const std::string & factoryKey )

staticinherited

static dictionary_type& te::common::AbstractFactory< AbstractGraphLoaderStrategy , std::string , std::less<std::string > >::getDictionary ( )

staticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns: A reference to the internal dictionary.

const std::string & te::common::AbstractFactory< AbstractGraphLoaderStrategy , std::string , std::less<std::string > >::getKey ( ) const

inherited

It returns the factory key associated to the concreate factory.

Returns: The factory key associated to the concreate factory.

const std::string& te::graph::BoxLoaderStrategyFactory::getType ( ) const

virtual

Returns the type (name) of this factory.

Implements te::graph::AbstractGraphLoaderStrategyFactory.

static void te::graph::BoxLoaderStrategyFactory::initialize ( )

static

It initializes the factory: the singleton instance will be registered in the abstract factory ...

static AbstractGraphLoaderStrategy* te::graph::AbstractGraphLoaderStrategyFactory::make ( )

staticinherited

It creates and returns default graph loader strategy.

Returns: A default graph loader strategy.

Note: The caller will take the ownership of the returned pointer.

static AbstractGraphLoaderStrategy* te::graph::AbstractGraphLoaderStrategyFactory::make ( const std::string & lsType )

staticinherited

It creates graph loader strategy with the proper type.

Parameters

lsType Type The name of the specific graph loader strategy type to be used to create.

Returns: A proper graph loader strategy.

Note: The caller will take the ownership of the returned pointer.

static AbstractGraphLoaderStrategy* te::graph::AbstractGraphLoaderStrategyFactory::make	(	const std::string &	lsType,
		GraphMetadata *	gm
	)

staticinherited

It creates graph loader strategy with the proper type.

Parameters

lsType	Type The name of the specific graph loader strategy type to be used to create.
gm	Pointer to a class that defines the graph metadata

Returns: A proper graph loader strategy.

Note: The caller will take the ownership of the returned pointer.

Member Data Documentation

std::string te::common::AbstractFactory< AbstractGraphLoaderStrategy , std::string , std::less<std::string > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

BoxLoaderStrategyFactory* te::graph::BoxLoaderStrategyFactory::sm_factory

staticprivate

Static instance used to register the factory.

Definition at line 86 of file BoxLoaderStrategyFactory.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/graph/loader/BoxLoaderStrategyFactory.h
