te::qt::plugins::attributefill::Plugin Class Reference

#include <Plugin.h>

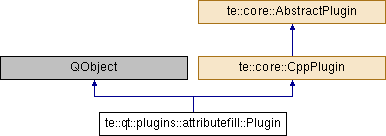

Inheritance diagram for te::qt::plugins::attributefill::Plugin:

Signals
void	triggered (te::qt::af::evt::Event *e)

Public Member Functions
const PluginInfo &	info () const
	It returns the PluginInfo of the CppPlugin. More...
bool	initialized () const
	It returns true or false if the CppPlugin was initialized. More...
	Plugin (const te::core::PluginInfo &pluginInfo)
void	shutdown ()
	This method will be called by applicatons to shutdown plugin's functionality. More...
void	startup ()
	This method will be called by applications to startup some plugin's functionality. More...
	~Plugin ()

Protected Member Functions
void	registerActions ()
	Function used to register all attributefill actions. More...
void	unRegisterActions ()
	Function used to unregister all attributefill actions. More...

Protected Attributes
QMenu *	m_attributefillMenu
	Attribute Fill Sub Menu registered. More...
bool	m_initialized
PluginInfo	m_pinfo
QAction *	m_popupAction
	Attribute Fill pop up action registered. More...
RasterToVectorAction *	m_rasterToVector
	RasterToVector Attribute Fill Action. More...
VectorToRasterAction *	m_vectorToRaster
	VectorToRaster Attribute Fill Action. More...
VectorToVectorAction *	m_vectorToVector
	VectorToVector Attribute Fill Action. More...

Detailed Description

Definition at line 56 of file Plugin.h.

Constructor & Destructor Documentation

te::qt::plugins::attributefill::Plugin::Plugin

(

const te::core::PluginInfo &

pluginInfo

)

te::qt::plugins::attributefill::Plugin::~Plugin

(

)

Member Function Documentation

const PluginInfo& te::core::CppPlugin::info ( ) const

virtualinherited

It returns the PluginInfo of the CppPlugin.

Returns

The CppPlugin information

Implements te::core::AbstractPlugin.

bool te::core::CppPlugin::initialized ( ) const

virtualinherited

It returns true or false if the CppPlugin was initialized.

Returns

The current state of the CppPlugin

Implements te::core::AbstractPlugin.

void te::qt::plugins::attributefill::Plugin::registerActions ( )

protected

Function used to register all attributefill actions.

void te::qt::plugins::attributefill::Plugin::shutdown ( )

virtual

This method will be called by applicatons to shutdown plugin's functionality.

Exceptions

PluginShutdownException

It may throws an exception.

Implements te::core::AbstractPlugin.

void te::qt::plugins::attributefill::Plugin::startup ( )

virtual

This method will be called by applications to startup some plugin's functionality.

Exceptions

PluginStartupException

It may throws an exception.

Implements te::core::AbstractPlugin.

void te::qt::plugins::attributefill::Plugin::triggered ( te::qt::af::evt::Event *  e )

signal

void te::qt::plugins::attributefill::Plugin::unRegisterActions ( )

protected

Function used to unregister all attributefill actions.

Member Data Documentation

QMenu* te::qt::plugins::attributefill::Plugin::m_attributefillMenu

protected

Attribute Fill Sub Menu registered.

Definition at line 90 of file Plugin.h.

bool te::core::CppPlugin::m_initialized

protectedinherited

Definition at line 73 of file CppPlugin.h.

PluginInfo te::core::CppPlugin::m_pinfo

protectedinherited

Definition at line 72 of file CppPlugin.h.

QAction* te::qt::plugins::attributefill::Plugin::m_popupAction

protected

Attribute Fill pop up action registered.

Definition at line 91 of file Plugin.h.

RasterToVectorAction* te::qt::plugins::attributefill::Plugin::m_rasterToVector

protected

RasterToVector Attribute Fill Action.

Definition at line 93 of file Plugin.h.

VectorToRasterAction* te::qt::plugins::attributefill::Plugin::m_vectorToRaster

protected

VectorToRaster Attribute Fill Action.

Definition at line 94 of file Plugin.h.

VectorToVectorAction* te::qt::plugins::attributefill::Plugin::m_vectorToVector

protected

VectorToVector Attribute Fill Action.

Definition at line 95 of file Plugin.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/qt/plugins/attributefill/Plugin.h
