te::da::QueryVisitor Class Reference

A visitor interface for the Query hierarchy. More...

#include <QueryVisitor.h>

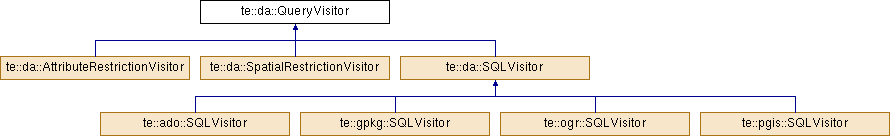

Inheritance diagram for te::da::QueryVisitor:

Public Member Functions
	QueryVisitor ()
	Default constructor. More...
virtual void	visit (const Expression &visited)=0
virtual void	visit (const DataSetName &visited)=0
virtual void	visit (const FromItem &visited)=0
virtual void	visit (const Function &visited)=0
virtual void	visit (const Insert &visited)=0
virtual void	visit (const Join &visited)=0
virtual void	visit (const JoinCondition &visited)=0
virtual void	visit (const JoinConditionOn &visited)=0
virtual void	visit (const JoinConditionUsing &visited)=0
virtual void	visit (const Literal &visited)=0
virtual void	visit (const LiteralBool &visited)=0
virtual void	visit (const LiteralByteArray &visited)=0
virtual void	visit (const LiteralDateTime &visited)=0
virtual void	visit (const LiteralDouble &visited)=0
virtual void	visit (const LiteralEnvelope &visited)=0
virtual void	visit (const LiteralGeom &visited)=0
virtual void	visit (const LiteralInt16 &visited)=0
virtual void	visit (const LiteralInt32 &visited)=0
virtual void	visit (const LiteralInt64 &visited)=0
virtual void	visit (const LiteralString &visited)=0
virtual void	visit (const PropertyName &visited)=0
virtual void	visit (const Query &visited)=0
virtual void	visit (const Select &visited)=0
virtual void	visit (const SelectExpression &visited)=0
virtual void	visit (const SubSelect &visited)=0
virtual void	visit (const In &visited)=0
virtual void	visit (const Cast &visited)=0
virtual	~QueryVisitor ()
	Virtual destructor. More...

Detailed Description

A visitor interface for the Query hierarchy.

The visitor interface can be implemented by data access drivers in order to translate a Query object to its dialect (SELECT, INSERT, UPDATE, DELETE, DROP, CREATE, ALTER).

Definition at line 47 of file QueryVisitor.h.

Constructor & Destructor Documentation

te::da::QueryVisitor::QueryVisitor ( )

inline

Default constructor.

Definition at line 52 of file QueryVisitor.h.

virtual te::da::QueryVisitor::~QueryVisitor ( )

inlinevirtual

Virtual destructor.

Definition at line 55 of file QueryVisitor.h.

Member Function Documentation

virtual void te::da::QueryVisitor::visit ( const Expression &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const DataSetName &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, te::ogr::SQLVisitor, and te::gpkg::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const FromItem &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const Function &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, and te::ado::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const Insert &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const Join &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, te::ogr::SQLVisitor, and te::gpkg::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const JoinCondition &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const JoinConditionOn &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, te::ogr::SQLVisitor, and te::gpkg::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const JoinConditionUsing &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const Literal &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralBool &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralByteArray &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, te::pgis::SQLVisitor, and te::ado::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralDateTime &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, te::pgis::SQLVisitor, and te::ado::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralDouble &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralEnvelope &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, te::pgis::SQLVisitor, te::ado::SQLVisitor, te::ogr::SQLVisitor, and te::gpkg::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralGeom &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, te::pgis::SQLVisitor, and te::ado::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralInt16 &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralInt32 &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralInt64 &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const LiteralString &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const PropertyName &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, te::ado::SQLVisitor, te::ogr::SQLVisitor, and te::gpkg::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const Query &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const Select &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, te::da::SQLVisitor, te::ogr::SQLVisitor, and te::gpkg::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const SelectExpression &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const SubSelect &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const In &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

virtual void te::da::QueryVisitor::visit ( const Cast &  visited )

pure virtual

Implemented in te::da::SpatialRestrictionVisitor, te::da::AttributeRestrictionVisitor, and te::da::SQLVisitor.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/dataaccess/query/QueryVisitor.h
