te::fe::BinaryOperator Class Reference

This class can be used to represent binary operation expressions. More...

#include <BinaryOperator.h>

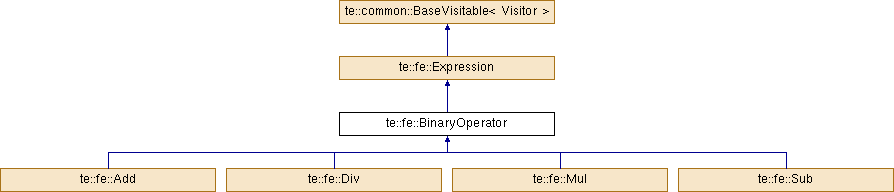

Inheritance diagram for te::fe::BinaryOperator:

Public Types
typedef void	ReturnType
typedef Visitor	VisitorType

Public Member Functions
virtual ReturnType	accept (VisitorType &guest) const =0
	It call the visit method from the guest object. More...
Initializer Methods
Methods related to instantiation and destruction.
	BinaryOperator (const char *opName=0)
	It initializes a new BinaryOperator. More...
	BinaryOperator (const char *opName, Expression *first, Expression *second)
	It initializes a new BinaryOperator. More...
virtual	~BinaryOperator ()
	Virtual destructor. More...
Accessor methods
Methods used to get or set properties.
const char *	getName () const
	It returns the operator name. More...
void	setFirst (Expression *first)
	It sets the first operand. More...
Expression *	getFirst () const
	It returns the first operand. More...
void	setSecond (Expression *second)
	It sets the second operand. More...
Expression *	getSecond () const
	It returns the second operand. More...
Expression Re-implementation
Methods re-implemented from Expression.
virtual Expression *	clone () const
	It returns a clone of this object. More...

Private Attributes
Expression *	m_first
	First operand (an expression). (Mandatory) More...
const char *	m_opName
	The operator name. (Mandatory) More...
Expression *	m_second
	Second operand (an expression). (Mandatory) More...

Detailed Description

This class can be used to represent binary operation expressions.

The BinaryOperator class can be used to encode the fundamental arithmetic operations of addition, subtraction, multiplication and division. Arithmetic operators are binary operators meaning that they accept two arguments and evaluate to a single result.
The following operators are defined in the Filter Encoding specification:

• Add
• Sub
• Mul
• Div

Of course, you can extend the list of supported binary operators.

See also

Expression

Definition at line 66 of file BinaryOperator.h.

Member Typedef Documentation

typedef void te::common::BaseVisitable< Visitor , void >::ReturnType

inherited

Definition at line 58 of file BaseVisitable.h.

typedef Visitor te::common::BaseVisitable< Visitor , void >::VisitorType

inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

te::fe::BinaryOperator::BinaryOperator

(

const char *

opName = 0

)

It initializes a new BinaryOperator.

Parameters

opName

The operator name.

Note

The BinaryOperator will not take the ownership of the given name.

te::fe::BinaryOperator::BinaryOperator	(	const char *	opName,
		Expression *	first,
		Expression *	second
	)

It initializes a new BinaryOperator.

Parameters

opName	The operator name.
first	The first operand.
second	The second operand.

Note

The BinaryOperator will not take the ownership of the given name.

It will take the ownership of the first and second operands.

virtual te::fe::BinaryOperator::~BinaryOperator ( )

virtual

Virtual destructor.

Member Function Documentation

virtual ReturnType te::common::BaseVisitable< Visitor , void >::accept ( VisitorType &  guest ) const

pure virtualinherited

It call the visit method from the guest object.

Parameters

guest

The guest or visitor.

Returns

Any valid value define by the template type R.

virtual Expression* te::fe::BinaryOperator::clone ( ) const

virtual

It returns a clone of this object.

Returns

A clone of this object.

Implements te::fe::Expression.

Expression* te::fe::BinaryOperator::getFirst

(

)

const

It returns the first operand.

Returns

The first operand.

const char* te::fe::BinaryOperator::getName ( ) const

inline

It returns the operator name.

Returns

The operator name.

Definition at line 114 of file BinaryOperator.h.

Expression* te::fe::BinaryOperator::getSecond

(

)

const

It returns the second operand.

Returns

The second operand.

void te::fe::BinaryOperator::setFirst

(

Expression *

first

)

It sets the first operand.

Parameters

first

The first operand.

Note

The binary operator will take the ownership of the first operand.

void te::fe::BinaryOperator::setSecond

(

Expression *

second

)

It sets the second operand.

Parameters

second

The second operand.

Note

It will take the ownership of the second operand.

Member Data Documentation

Expression* te::fe::BinaryOperator::m_first

private

First operand (an expression). (Mandatory)

Definition at line 162 of file BinaryOperator.h.

const char* te::fe::BinaryOperator::m_opName

private

The operator name. (Mandatory)

Definition at line 161 of file BinaryOperator.h.

Expression* te::fe::BinaryOperator::m_second

private

Second operand (an expression). (Mandatory)

Definition at line 163 of file BinaryOperator.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/fe/BinaryOperator.h
