This is the abstract factory for cache policy. More...

#include <AbstractCachePolicyFactory.h>

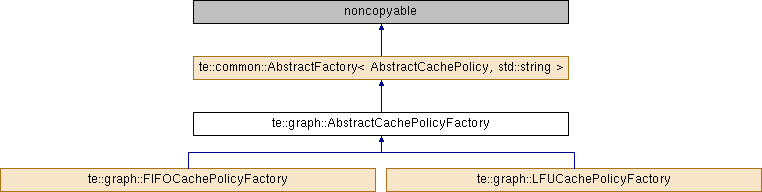

Inheritance diagram for te::graph::AbstractCachePolicyFactory:

Public Types
typedef FactoryDictionary< AbstractFactory< AbstractCachePolicy, std::string, std::less< std::string > >, std::string, std::less< std::string > >	dictionary_type

typedef AbstractFactory	factory_type

Public Member Functions
const std::string &	getKey () const
	It returns the factory key associated to the concreate factory. More...

virtual const std::string &	getType () const =0
	Returns the type (name) of this factory. More...

virtual	~AbstractCachePolicyFactory ()
	Destructor. More...

Static Public Member Functions
static const factory_type *	find (const std::string &factoryKey)

static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...

static AbstractCachePolicy *	make ()
	It creates and returns default cache policy. More...

static AbstractCachePolicy *	make (const std::string &cpType)
	It creates a cache policy with the proper type. More...

Protected Member Functions
	AbstractCachePolicyFactory (const std::string &factoryKey)
	Constructor. More...

virtual AbstractCachePolicy *	build ()=0
	Concrete factories (derived from this one) must implement this method in order to create objects. More...

Protected Attributes
std::string	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Detailed Description

This is the abstract factory for cache policy.

See also: AbstractGraph

Definition at line 49 of file AbstractCachePolicyFactory.h.

Member Typedef Documentation

typedef FactoryDictionary<AbstractFactory<AbstractCachePolicy , std::string , std::less<std::string > >, std::string , std::less<std::string > > te::common::AbstractFactory< AbstractCachePolicy , std::string , std::less<std::string > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

typedef AbstractFactory te::common::AbstractFactory< AbstractCachePolicy , std::string , std::less<std::string > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

virtual te::graph::AbstractCachePolicyFactory::~AbstractCachePolicyFactory ( )

inlinevirtual

Destructor.

Definition at line 75 of file AbstractCachePolicyFactory.h.

te::graph::AbstractCachePolicyFactory::AbstractCachePolicyFactory ( const std::string & factoryKey )

protected

Constructor.

Parameters

factoryKey The key that identifies the factory.

Member Function Documentation

virtual AbstractCachePolicy * te::common::AbstractFactory< AbstractCachePolicy , std::string , std::less<std::string > >::build ( )

protectedpure virtualinherited

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns: It returns an object created by the concrete factory.

Implemented in te::graph::FIFOCachePolicyFactory, and te::graph::LFUCachePolicyFactory.

static const factory_type* te::common::AbstractFactory< AbstractCachePolicy , std::string , std::less<std::string > >::find ( const std::string & factoryKey )

staticinherited

static dictionary_type& te::common::AbstractFactory< AbstractCachePolicy , std::string , std::less<std::string > >::getDictionary ( )

staticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns: A reference to the internal dictionary.

const std::string & te::common::AbstractFactory< AbstractCachePolicy , std::string , std::less<std::string > >::getKey ( ) const

inherited

It returns the factory key associated to the concreate factory.

Returns: The factory key associated to the concreate factory.

virtual const std::string& te::graph::AbstractCachePolicyFactory::getType ( ) const

pure virtual

Returns the type (name) of this factory.

Implemented in te::graph::FIFOCachePolicyFactory, and te::graph::LFUCachePolicyFactory.

static AbstractCachePolicy* te::graph::AbstractCachePolicyFactory::make ( )

static

It creates and returns default cache policy.

Returns: A default cache policy

Note: The caller will take the ownership of the returned pointer.

static AbstractCachePolicy* te::graph::AbstractCachePolicyFactory::make ( const std::string & cpType )

static

It creates a cache policy with the proper type.

Parameters

cpType The name of the specific cache policy.

Returns: A specific cache policy

Note: The caller will take the ownership of the returned pointer.

Member Data Documentation

std::string te::common::AbstractFactory< AbstractCachePolicy , std::string , std::less<std::string > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/graph/cache/AbstractCachePolicyFactory.h
