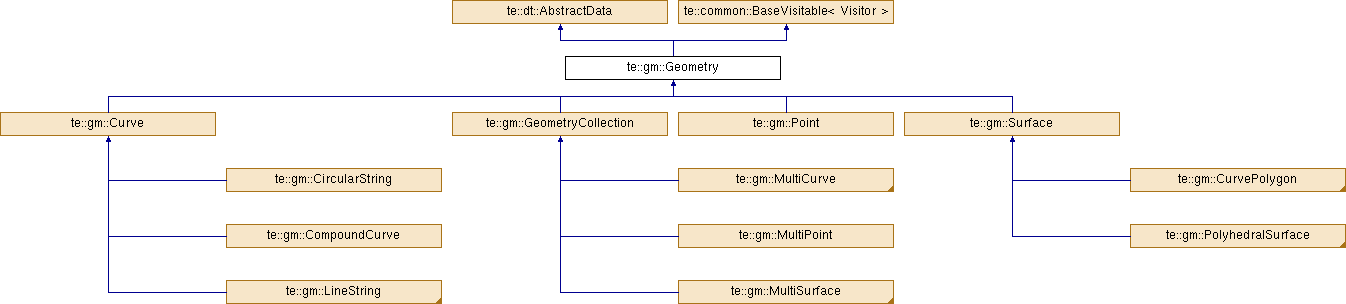

Geometry is the root class of the geometries hierarchy, it follows OGC and ISO standards. More...
#include <Geometry.h>
Public Types
typedef void  ReturnType
typedef Visitor  VisitorType
Public Member Functions
virtual ReturnType  accept (VisitorType &guest) const =0
It call the visit method from the guest object. More...
virtual AbstractData *  clone () const =0
It returns a clone of this object. More...
Initializer methods on geometric objects
Methods for initializing a geometric object.
Geometry (GeomType t, int srid=0, Envelope *mbr=0) throw ()
It initializes the Geometry with the specified spatial reference system id and envelope. More...
Geometry (const Geometry &rhs) throw ()
Copy constructor. More...
virtual  ~Geometry ()
Virtual destructor. More...
virtual Geometry &  operator= (const Geometry &rhs) throw ()
Assignment operator. More...
Basic Geometry Methods
Basic methods on geometric objects.
virtual Dimensionality  getDimension () const =0 throw ()
It returns the geometric object dimension (0, 1 or 2). More...
int  getCoordinateDimension () const throw ()
It returns the number of measurements or axes needed to describe a position in a coordinate system. More...
virtual const std::string &  getGeometryType () const =0 throw ()
It returns the name of the geometry subclass. More...
GeomType  getGeomTypeId () const throw ()
It returns the geometry subclass type identifier. More...
virtual const std::string  get2DGeometryType () const throw ()
It returns the name of 2D geometry subclass. More...
virtual GeomType  get2DGeomTypeId () const throw ()
It returns the 2D geometry subclass type identifier. More...
int  getSRID () const throw ()
It returns the Spatial Reference System ID associated to this geometric object. More...
virtual void  setSRID (int srid)=0 throw ()
It sets the Spatial Reference System ID of the geometry and all its parts if it is a GeometryCollection (or a Multi). More...
virtual void  transform (int srid)=0 throw (te::common::Exception)
It converts the coordinate values of the geometry to the new spatial reference system. More...
Geometry *  getEnvelope () const throw ()
It returns the minimum bounding rectangle (MBR) for the geometry. More...
const Envelope *  getMBR () const throw ()
It returns the minimum bounding rectangle for the geometry in an internal representation. More...
virtual void  computeMBR (bool cascade) const =0 throw ()
It computes the minimum bounding rectangle for the geometry. More...
std::string  asText () const throw ()
It returns an string with the WellKnown Text Representation for the geometry. More...
char *  asBinary (std::size_t &size) const throw (Exception)
It serializes the geometric object to a Wellknown Binary Representation (WKB). More...
std::size_t  getWkbSize () const throw ()
It returns the size required by a WKB representation for this geometric object. More...
void  getWkb (char *wkb, te::common::MachineByteOrder byteOrder) const throw (Exception)
It serializes the geometry to a WKB representation into the specified buffer. More...
virtual bool  isEmpty () const throw (std::exception)
It returns true if this geometric object is the empty Geometry. More...
virtual bool  isSimple () const throw (std::exception)
It returns true if this geometric object has no anomalous points, such as self intersection or self tangency. More...
virtual bool  isValid () const throw (std::exception)
It tells if the geometry is well formed. More...
bool  is3D () const throw ()
It returns true if this geometric object has z coordinate values. More...
bool  isMeasured () const throw ()
It returns true if this geometric object has m coordinate values. More...
bool  isCollection () const throw ()
It returns true if this geometric object is a collection. More...
virtual Geometry *  getBoundary () const throw (std::exception)
It returns the geometry boundary. More...
te::gm::Coord2D  getCentroid () const throw (std::exception)
It will get the centroid of the input geometries. More...
virtual std::size_t  getNPoints () const =0 throw ()
it returns the number of points (vertexes) in the geometry. More...
Spatial Relations
Methods for testing spatial relations between geometric objects. Please, see OGC specification for a in depth definition of each spatial operation.
virtual bool  equals (const Geometry *const rhs, const bool exact=false) const throw (std::exception)
It returns true if the geometry object is spatially equal to rhs geometry. More...
virtual bool  disjoint (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object is spatially disjoint from rhs geometry. More...
virtual bool  intersects (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object spatially intersects rhs geometry. More...
virtual bool  touches (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object spatially touches rhs geometry. More...
virtual bool  crosses (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object spatially crosses rhs geometry. More...
virtual bool  within (const Geometry *const rhs) const throw (std::exception)
It returns true if the geometry object is spatially within rhs geometry. More...
virtual bool  contains (const Geometry *const rhs) const throw (std::exception)
It returns true if this geometry object spatially contains rhs geometry. More...
virtual bool  overlaps (const Geometry *const rhs) const throw (std::exception)
It returns true if this geometry object spatially overlaps rhs geometry. More...
virtual bool  relate (const Geometry *const rhs, const std::string &matrix) const throw (std::exception)
It returns true if this geometry object is spatially related to rhs geometry according to the pattern expressed by the intersection matrix. More...
virtual std::string  relate (const Geometry *const rhs) const throw (std::exception)
It returns the spatial relation between this geometry object and the rhs geometry. More...
virtual bool  covers (const Geometry *const rhs) const throw (std::exception)
It returns true if this geometry object spatially covers the rhs geometry. More...
virtual bool  coveredBy (const Geometry *const rhs) const throw (std::exception)
It returns true if this geometry object is spatially covered by rhs geometry. More...
virtual Geometry *  locateAlong (const double &mValue) const throw (Exception)
It returns a derived GeometryCollection value according to the specified coordinate value. More...
virtual Geometry *  locateBetween (const double &mStart, const double &mEnd) const throw (Exception)
It returns a derived geometry collection value according to the range of coordinate values inclusively. More...
Spatial Analysis
Methods that support spatial analysis.
virtual double  distance (const Geometry *const rhs) const throw (std::exception)
It returns the shortest distance between any two points in the two geometry objects. More...
virtual Geometry *  buffer (const double &distance) const throw (std::exception)
This method calculates the buffer of a geometry. More...
virtual Geometry *  buffer (const double &distance, int quadrantSegments) const throw (std::exception)
This method calculates the buffer of a geometry. More...
virtual Geometry *  buffer (const double &distance, int quadrantSegments, BufferCapStyle endCapStyle) const throw (std::exception)
This method calculates the buffer of a geometry. More...
virtual Geometry *  convexHull () const throw (std::exception)
This method calculates the Convex Hull of a geometry. More...
virtual Geometry *  intersection (const Geometry *const rhs) const throw (std::exception)
It returns a geometric object that represents the point set intersection with another geometry. More...
virtual Geometry *  Union (const Geometry *const rhs) const throw (std::exception)
It returns a geometric object that represents the point set union with another geometry. More...
virtual Geometry *  difference (const Geometry *const rhs) const throw (std::exception)
It returns a geometric object that represents the point set difference with another geometry. More...
virtual Geometry *  symDifference (const Geometry *const rhs) const throw (std::exception)
It returns a geometric object that represents the point set symetric difference with another geometry. More...
virtual bool  dWithin (const Geometry *const rhs, const double &distance) const throw (std::exception)
It returns true if the geometries are within the specified distance. More...
AbstractData Reimplementation
Methods reimplemneted from AbstractData.
int  getTypeCode () const
It returns the data type code associated to the data value. More...
std::string  toString () const
It returns the data value in a WKT representation. More...
Static Public Member Functions
Auxiliary Methods
Auxiliary Methods.
static GeomType  getGeomTypeId (const std::string >ype)
It returns the TerraLib geometry type id given a type string (the type string must be in capital letters). More...
static std::string  getGeomTypeString (const int &gId)
It returns the TerraLib geometry type string given a type id. More...
static bool  isGeomType (const std::string &stype)
It tells if the given string is a geometry data type. More...
static void  loadGeomTypeId ()
It loads the internal MAP of geometry type names to geometry type ids. More...
Protected Attributes
GeomType  m_gType
Internal geometry type. More...
Envelope *  m_mbr
The geometry minimum bounding rectangle. More...
int  m_srid
The Spatial Reference System code associated to the Geometry. More...
Static Protected Attributes
static std::map< std::string, GeomType >  sm_geomTypeMap
A set of geometry type names (in UPPER CASE). More...
Geometry is the root class of the geometries hierarchy, it follows OGC and ISO standards.
The geometry model follows OGC Simple Feature Specification  SFS (Simple Feature Access  Part 1: Common Architecture) and ISO SQL/MM Spatial.
Definition at line 74 of file Geometry.h.

inherited
Definition at line 58 of file BaseVisitable.h.

inherited
Definition at line 57 of file BaseVisitable.h.
It initializes the Geometry with the specified spatial reference system id and envelope.
t  The internal geometry type.
srid  The Spatial Reference System ID associated to the geometry.
mbr  The envelope (minimum bounding rectangle of this geometry).
te::gm::Geometry::Geometry  (  const Geometry &  rhs  )
throw  (
)
Copy constructor.
rhs  The other geometry.

virtual
Virtual destructor.

pure virtualinherited
It call the visit method from the guest object.
guest  The guest or visitor.
char* te::gm::Geometry::asBinary  (  std::size_t &  size  )  const
throw  (  Exception
)
It serializes the geometric object to a Wellknown Binary Representation (WKB).
size  The size in bytes of the returned WKB.
Exception  It will throw an exception if the operation could not be performed.
std::string te::gm::Geometry::asText  (  )  const
throw  (
)
It returns an string with the WellKnown Text Representation for the geometry.

virtual
This method calculates the buffer of a geometry.
distance  Distance value.
std::exception  It will throw an exception if the operation could not be performed.

virtual
This method calculates the buffer of a geometry.
distance  Distance value.
quadrantSegments  A specified number of segments used to approximate the curves.
std::exception  It will throw an exception if the operation could not be performed.

virtual
This method calculates the buffer of a geometry.
As in GEOS, the quadrantSegments argument allows controlling the accuracy of the approximation by specifying the number of line segments used to represent a quadrant of a circle.
distance  Distance value.
quadrantSegments  A specified number of segments used to approximate the curves.
endCapStyle  It specifies the shape used at the ends of linestrings.
std::exception  It will throw an exception if the operation could not be performed.

pure virtualinherited
It returns a clone of this object.
Implemented in te::dt::ByteArray, te::dt::SimpleData< T *, typeCode >, te::dt::DatePeriod, te::dt::TimePeriod, te::dt::TimeDuration, te::dt::Date, te::dt::TimeInstant, te::dt::TimePeriodTZ, te::dt::OrdinalPeriod, te::dt::Array, te::gm::LineString, te::mem::ExpansibleRaster, te::gm::CircularString, te::dt::DateDuration, te::dt::TimeInstantTZ, te::gm::CompoundCurve, te::gm::LinearRing, te::gm::MultiPolygon, te::dt::CompositeData, te::mem::CachedRaster, te::gm::Point, te::gm::Line, te::dt::OrdinalInstant, te::gm::CurvePolygon, te::gm::GeometryCollection, te::gdal::Raster, te::gm::PolyhedralSurface, te::gm::Polygon, te::gm::MultiLineString, te::gm::MultiPoint, te::rst::SynchronizedRaster, te::gm::MultiSurface, te::dt::SimpleData< T, typeCode >, te::dt::SimpleData< boost::int64_t, INT64_TYPE >, te::gm::MultiCurve, te::vp::ComplexData< T >, te::rst::ProxyRaster, te::mem::Raster, and terralib4::Raster.
Referenced by te::dt::new_clone().

pure virtual
It computes the minimum bounding rectangle for the geometry.
Subclasses must implement this method in order to be able to compute the minimum bounding box of a specific geometry.
cascade  If true it will update the MBR for its subgeometries.
Implemented in te::gm::CurvePolygon, te::gm::PolyhedralSurface, te::gm::Point, te::gm::LineString, te::gm::CircularString, te::gm::GeometryCollection, and te::gm::CompoundCurve.

virtual
It returns true if this geometry object spatially contains rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtual
This method calculates the Convex Hull of a geometry.
std::exception  It will throw an exception if the operation could not be performed.
Referenced by te::rp::GetTPConvexHullArea().

virtual
It returns true if this geometry object is spatially covered by rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns true if this geometry object spatially covers the rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns true if the geometry object spatially crosses rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns a geometric object that represents the point set difference with another geometry.
rhs  Another geometry whose difference with this geometry will be calculated.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns true if the geometry object is spatially disjoint from rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns the shortest distance between any two points in the two geometry objects.
rhs  The other geometry.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns true if the geometries are within the specified distance.
rhs  The other geometry whose symetric difference with this geometry will be calculated.
distance  The distance.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns true if the geometry object is spatially equal to rhs geometry.
rhs  The another geometry to be compared.
exact  If true checks if this geometric object has the same vertexes in the same order of rhs geometry.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns the name of 2D geometry subclass.
The name of the 2D geometry subclass may be one of the following:

virtual
It returns the 2D geometry subclass type identifier.

virtual
It returns the geometry boundary.
std::exception  It will throw an exception if the operation could not be performed.
te::gm::Coord2D te::gm::Geometry::getCentroid  (  )  const
throw  (  std::exception
)
It will get the centroid of the input geometries.
std::exception  It will throw an exception if the operation could not be performed.
int te::gm::Geometry::getCoordinateDimension  (  )  const
throw  (
)
It returns the number of measurements or axes needed to describe a position in a coordinate system.
It returns:

pure virtual
It returns the geometric object dimension (0, 1 or 2).
For a GeometryCollection it returns the largest topological dimension of the contained objects. For Point and MultiPoint this will return 0. For Curves and MultiCurves (LineString, LinearRing and MultiLineString) it will return 1. For Surfaces (Polygon, Triangle, PolyhedralSurface, TIN) and MultiSurfaces (MultiPolygon) it will return 2.
Implemented in te::gm::Point, te::gm::MultiSurface, te::gm::Curve, te::gm::MultiCurve, te::gm::GeometryCollection, te::gm::MultiPoint, and te::gm::Surface.
Geometry* te::gm::Geometry::getEnvelope  (  )  const
throw  (
)
It returns the minimum bounding rectangle (MBR) for the geometry.
As one can notice, the mbr is returned as a geometry, actually a polygon defined by the corner points of the bounding box [(MINX, MINY), (MAXX, MINY), (MAXX, MAXY), (MINX, MAXY), (MINX, MINY)].

pure virtual
It returns the name of the geometry subclass.
The name of the geometry subclass may be one of the following:
Implemented in te::gm::CurvePolygon, te::gm::PolyhedralSurface, te::gm::Point, te::gm::LineString, te::gm::CircularString, te::gm::GeometryCollection, te::gm::CompoundCurve, te::gm::MultiPolygon, te::gm::MultiPoint, te::gm::Polygon, te::gm::MultiLineString, and te::gm::TIN.

inline
It returns the geometry subclass type identifier.
Definition at line 179 of file Geometry.h.

static
It returns the TerraLib geometry type id given a type string (the type string must be in capital letters).
gtype  The geometry type name.

static
It returns the TerraLib geometry type string given a type id.
gId  The geometry type id.
const Envelope* te::gm::Geometry::getMBR  (  )  const
throw  (
)
It returns the minimum bounding rectangle for the geometry in an internal representation.
The mbr can be constructed when reading a geometry from a database or it can be computed internally. So, if the mbr is not already set it will compute it just when this method is called. Successive calls to this method will not compute the mbr anymore.
Referenced by te::rst::PolygonIterator< T >::PolygonIterator().

pure virtual
it returns the number of points (vertexes) in the geometry.
Implemented in te::gm::CurvePolygon, te::gm::PolyhedralSurface, te::gm::Point, te::gm::LineString, te::gm::CircularString, te::gm::GeometryCollection, and te::gm::CompoundCurve.

inline
It returns the Spatial Reference System ID associated to this geometric object.
This value can be used to identify the associated Spatial Reference System.
Definition at line 239 of file Geometry.h.
Referenced by te::rst::LineIterator< T >::LineIterator(), te::rst::PolygonIterator< T >::PolygonIterator(), and te::rst::PolygonIterator< T >::setNextLine().

virtual
It returns the data type code associated to the data value.
Implements te::dt::AbstractData.
void te::gm::Geometry::getWkb  (  char *  wkb,
te::common::MachineByteOrder  byteOrder
)  const
throw  (  Exception
)
It serializes the geometry to a WKB representation into the specified buffer.
The wkb parameter must have at least getWkbSize() in order to be used. Don't pass a NULL pointer or a buffer smaller than the size needed. Note that the WKB will be on the specified byte order.
wkb  The buffer where the Geometry will be serialized.
byteOrder  The byte order used to store/serialize the geometry.
Exception  It will throw an exception if the operation could not be performed.
std::size_t te::gm::Geometry::getWkbSize  (  )  const
throw  (
)
It returns the size required by a WKB representation for this geometric object.
This is the preferred method for creating a WKB. First of all, it gives you the possibility to use a preallocated buffer. So, this method can be used in conjunction with the getWkb method.

virtual
It returns a geometric object that represents the point set intersection with another geometry.
std::exception  It will throw an exception if the operation could not be performed.
Referenced by te::rst::LineIterator< T >::LineIterator().

virtual
It returns true if the geometry object spatially intersects rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.
bool te::gm::Geometry::is3D  (  )  const
throw  (
)
It returns true if this geometric object has z coordinate values.
bool te::gm::Geometry::isCollection  (  )  const
throw  (
)
It returns true if this geometric object is a collection.

virtual
It returns true if this geometric object is the empty Geometry.
If true, then this geometric object represents the empty point set for the coordinate space.
std::exception  It will throw an exception if the operation could not be performed.

static
It tells if the given string is a geometry data type.
stype  The geometry type to be checked.
bool te::gm::Geometry::isMeasured  (  )  const
throw  (
)
It returns true if this geometric object has m coordinate values.

virtual
It returns true if this geometric object has no anomalous points, such as self intersection or self tangency.
See the ISO and OGC documentation for an explanation about specific conditions of each type of geometry to be considered not simple.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It tells if the geometry is well formed.
std::exception  It will throw an exception if the operation could not be performed.

static
It loads the internal MAP of geometry type names to geometry type ids.

inlinevirtual
It returns a derived GeometryCollection value according to the specified coordinate value.
mValue  The coordinate value.
Exception  It will throw an exception if the operation could not be performed.
Definition at line 677 of file Geometry.h.

virtual
It returns a derived geometry collection value according to the range of coordinate values inclusively.
mStart  The initial coordinate value.
mEnd  The final coordinate value.
Exception  It will throw an exception if the operation could not be performed.
Reimplemented in te::gm::LineString, te::gm::CircularString, te::gm::CompoundCurve, te::gm::MultiPoint, and te::gm::MultiLineString.
Assignment operator.
rhs  The righthandside geometry.

virtual
It returns true if this geometry object spatially overlaps rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns true if this geometry object is spatially related to rhs geometry according to the pattern expressed by the intersection matrix.
It does this by testing for intersections between the interior, boundary and exterior of the two geometric objects as specified by the values in the matrix.
rhs  The other geometry to be compared.
matrix  The intersection matrix.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns the spatial relation between this geometry object and the rhs geometry.
rhs  The another geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

pure virtual
It sets the Spatial Reference System ID of the geometry and all its parts if it is a GeometryCollection (or a Multi).
srid  The Spatial Reference System ID to be associated to the geometric object.
Implemented in te::gm::CurvePolygon, te::gm::PolyhedralSurface, te::gm::Point, te::gm::LineString, te::gm::CircularString, te::gm::GeometryCollection, and te::gm::CompoundCurve.

virtual
It returns a geometric object that represents the point set symetric difference with another geometry.
rhs  The other geometry whose symetric difference with this geometry will be calculated.
std::exception  It will throw an exception if the operation could not be performed.

inlinevirtual
It returns the data value in a WKT representation.
Implements te::dt::AbstractData.
Definition at line 935 of file Geometry.h.

virtual
It returns true if the geometry object spatially touches rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

pure virtual
It converts the coordinate values of the geometry to the new spatial reference system.
After calling this method the geometry will be associated to the new SRID.
srid  The new Spatial Reference System ID used to transform the coordinates of the geometry.
Exception  It will throw an exception if it can not do the transformation.
Implemented in te::gm::CurvePolygon, te::gm::PolyhedralSurface, te::gm::Point, te::gm::LineString, te::gm::CircularString, te::gm::GeometryCollection, and te::gm::CompoundCurve.

virtual
It returns a geometric object that represents the point set union with another geometry.
rhs  Another geometry whose union with this geometry will be calculated.
std::exception  It will throw an exception if the operation could not be performed.

virtual
It returns true if the geometry object is spatially within rhs geometry.
rhs  The other geometry to be compared.
std::exception  It will throw an exception if the operation could not be performed.

protected
Internal geometry type.
Definition at line 941 of file Geometry.h.

mutableprotected
The geometry minimum bounding rectangle.
Definition at line 943 of file Geometry.h.

protected
The Spatial Reference System code associated to the Geometry.
Definition at line 942 of file Geometry.h.

staticprotected
A set of geometry type names (in UPPER CASE).
Definition at line 945 of file Geometry.h.
