#include <AggregateAreaTool.h>

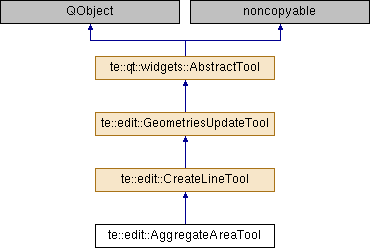

Inheritance diagram for te::edit::AggregateAreaTool:

Signals
void	endSelectCell (const std::string &, const std::size_t &, std::size_t &)

void	geometriesEdited ()

void	toolDeleted ()

Public Member Functions
	AggregateAreaTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, const te::edit::MouseEventEdition mouseEventToSave, QObject parent=0)

te::gm::Geometry *	buildLine ()

std::string	getLayerId ()

bool	isInUse () const

virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

	~AggregateAreaTool ()

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
void	resetVisualizationTool ()

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

Protected Member Functions
virtual void	saveGeometry (te::gm::Geometry *gm, const int &op)

Protected Attributes
bool	m_continuousMode
	A flag that indicates if the tool is working in 'continuous mode'. i.e. the coordinates will be acquired from each mouseMove. More...

std::vector< te::gm::Coord2D >	m_coords
	The coord list managed by this tool. More...

QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_isFinished
	A flag that indicates if the operations was finished. More...

bool	m_isInUse

te::gm::Coord2D	m_lastPos
	The last position captured on mouse move event. More...

te::map::AbstractLayer *	m_layer

MouseEventEdition	m_mouseEventToSave

UndoStackManager &	m_stack

Private Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

te::gm::Geometry *	buildPolygon ()

void	clear ()

void	draw ()

void	drawPolygon ()

void	pickFeature (const QPointF &pos)

bool	run ()

void	storeFeature ()

void	storeUndoCommand ()

Detailed Description

Definition at line 63 of file AggregateAreaTool.h.

Constructor & Destructor Documentation

te::edit::AggregateAreaTool::AggregateAreaTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		const te::edit::MouseEventEdition	mouseEventToSave,
		QObject *	parent = `0`
	)

te::edit::AggregateAreaTool::~AggregateAreaTool ( )

Member Function Documentation

te::gm::Envelope te::edit::AggregateAreaTool::buildEnvelope ( const QPointF & pos )

private

te::gm::Geometry* te::edit::CreateLineTool::buildLine ( )

inherited

te::gm::Geometry* te::edit::AggregateAreaTool::buildPolygon ( )

private

void te::edit::AggregateAreaTool::clear ( )

private

void te::edit::AggregateAreaTool::draw ( )

private

void te::edit::AggregateAreaTool::drawPolygon ( )

private

void te::edit::GeometriesUpdateTool::endSelectCell	(	const std::string &	,
		const std::size_t &	,
		std::size_t &
	)

signalinherited

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

bool te::edit::AggregateAreaTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::edit::AggregateAreaTool::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::edit::AggregateAreaTool::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::edit::AggregateAreaTool::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

void te::edit::AggregateAreaTool::pickFeature ( const QPointF & pos )

private

void te::edit::CreateLineTool::resetVisualizationTool ( )

virtualinherited

Reimplemented from te::edit::GeometriesUpdateTool.

Reimplemented in te::edit::SplitPolygonTool.

bool te::edit::AggregateAreaTool::run ( )

private

virtual void te::edit::GeometriesUpdateTool::saveGeometry	(	te::gm::Geometry *	gm,
		const int &	op
	)

protectedvirtualinherited

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

inherited

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

inherited

void te::edit::AggregateAreaTool::storeFeature ( )

privatevirtual

Reimplemented from te::edit::GeometriesUpdateTool.

void te::edit::AggregateAreaTool::storeUndoCommand ( )

privatevirtual

Reimplemented from te::edit::GeometriesUpdateTool.

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

Member Data Documentation

bool te::edit::CreateLineTool::m_continuousMode

protectedinherited

A flag that indicates if the tool is working in 'continuous mode'. i.e. the coordinates will be acquired from each mouseMove.

Definition at line 119 of file CreateLineTool.h.

std::vector<te::gm::Coord2D> te::edit::CreateLineTool::m_coords

protectedinherited

The coord list managed by this tool.

Definition at line 117 of file CreateLineTool.h.

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 100 of file GeometriesUpdateTool.h.

bool te::edit::CreateLineTool::m_isFinished

protectedinherited

A flag that indicates if the operations was finished.

Definition at line 120 of file CreateLineTool.h.

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 98 of file GeometriesUpdateTool.h.

te::gm::Coord2D te::edit::CreateLineTool::m_lastPos

protectedinherited

The last position captured on mouse move event.

Definition at line 118 of file CreateLineTool.h.

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 101 of file GeometriesUpdateTool.h.

MouseEventEdition te::edit::AggregateAreaTool::m_mouseEventToSave

protected

Definition at line 111 of file AggregateAreaTool.h.

UndoStackManager& te::edit::AggregateAreaTool::m_stack

protected

Definition at line 112 of file AggregateAreaTool.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/edit/qt/tools/AggregateAreaTool.h
