#include <MergeGeometriesTool.h>

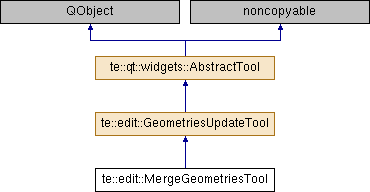

Inheritance diagram for te::edit::MergeGeometriesTool:

Signals
void	endSelectCell (const std::string &, const std::size_t &, std::size_t &)

void	geometriesEdited ()

void	toolDeleted ()

Public Member Functions
std::string	getLayerId ()

bool	isInUse () const

	MergeGeometriesTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, const QCursor &cursor, QObject parent=0)

virtual void	resetVisualizationTool ()

virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

virtual void	storeUndoCommand ()

	~MergeGeometriesTool ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

virtual bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

virtual bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

Protected Member Functions
virtual void	saveGeometry (te::gm::Geometry *gm, const int &op)

Protected Attributes
std::string	m_chosenOid

QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

te::gm::GeometryCollection *	m_gc

bool	m_isInUse

te::map::AbstractLayer *	m_layer

te::da::ObjectIdSet *	m_oidSet

Private Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

void	draw ()

void	getBaseOID (const te::da::ObjectIdSet &objSet, QString msg)

te::gm::Envelope	getRefEnvelope (te::da::DataSet &ds, te::gm::GeometryProperty &geomProp)

void	pickFeature (const te::map::AbstractLayerPtr &layer, const QPointF &pos)

void	run ()

bool	spatialRelationDisjoint (te::gm::GeometryCollection &gc)

void	storeFeature ()

Detailed Description

Definition at line 63 of file MergeGeometriesTool.h.

Constructor & Destructor Documentation

te::edit::MergeGeometriesTool::MergeGeometriesTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		const QCursor &	cursor,
		QObject *	parent = `0`
	)

te::edit::MergeGeometriesTool::~MergeGeometriesTool ( )

Destructor.

Member Function Documentation

te::gm::Envelope te::edit::MergeGeometriesTool::buildEnvelope ( const QPointF & pos )

private

void te::edit::MergeGeometriesTool::draw ( )

private

void te::edit::GeometriesUpdateTool::endSelectCell	(	const std::string &	,
		const std::size_t &	,
		std::size_t &
	)

signalinherited

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

void te::edit::MergeGeometriesTool::getBaseOID	(	const te::da::ObjectIdSet &	objSet,
		QString	msg
	)

private

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

te::gm::Envelope te::edit::MergeGeometriesTool::getRefEnvelope	(	te::da::DataSet &	ds,
		te::gm::GeometryProperty &	geomProp
	)

private

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, te::edit::SubtractAreaTool, and te::mnt::ProfileTools.

virtual bool te::qt::widgets::AbstractTool::mouseMoveEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::qt::widgets::Selection, te::edit::CreatePolygonTool, te::edit::DeleteGeometryByAreaTool, te::edit::MoveGeometryTool, te::edit::CreateLineTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::CoordTracking, te::qt::widgets::Pan, te::qt::widgets::ZoomArea, te::edit::AggregateAreaTool, te::qt::widgets::PanMiddleClick, te::edit::SubtractAreaTool, te::mnt::ProfileTools, and te::qt::plugins::mnt::ShowValuesTool.

virtual bool te::qt::widgets::AbstractTool::mousePressEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::qt::widgets::Selection, te::edit::CreatePolygonTool, te::edit::DeleteGeometryByAreaTool, te::edit::MoveGeometryTool, te::edit::DeleteGeometryTool, te::edit::DeletePartTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::qt::widgets::Pan, te::qt::widgets::ZoomClick, te::qt::widgets::ZoomArea, te::edit::AggregateAreaTool, te::qt::widgets::PanMiddleClick, te::qt::widgets::ZoomLeftAndRightClick, te::edit::EditInfoTool, te::edit::SubtractAreaTool, and te::mnt::ProfileTools.

virtual bool te::qt::widgets::AbstractTool::mouseReleaseEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::qt::widgets::Info, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::qt::widgets::Selection, te::edit::DeleteGeometryByAreaTool, te::edit::MoveGeometryTool, te::qt::widgets::PolygonAcquire, te::qt::widgets::PanExtent, te::qt::widgets::ExtentAcquire, te::qt::widgets::RubberBand, te::edit::AggregateAreaTool, te::qt::widgets::Pan, te::qt::widgets::ZoomArea, te::qt::widgets::PanMiddleClick, te::qt::widgets::PointPicker, te::edit::SubtractAreaTool, te::mnt::ProfileTools, and te::qt::widgets::ReadPixelTool.

void te::edit::MergeGeometriesTool::pickFeature	(	const te::map::AbstractLayerPtr &	layer,
		const QPointF &	pos
	)

private

virtual void te::edit::GeometriesUpdateTool::resetVisualizationTool ( )

virtualinherited

Reimplemented in te::edit::VertexTool, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::MoveGeometryTool, te::edit::CreateLineTool, and te::edit::CreatePointTool.

void te::edit::MergeGeometriesTool::run ( )

private

virtual void te::edit::GeometriesUpdateTool::saveGeometry	(	te::gm::Geometry *	gm,
		const int &	op
	)

protectedvirtualinherited

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

inherited

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

inherited

bool te::edit::MergeGeometriesTool::spatialRelationDisjoint ( te::gm::GeometryCollection & gc )

private

void te::edit::MergeGeometriesTool::storeFeature ( )

privatevirtual

Reimplemented from te::edit::GeometriesUpdateTool.

virtual void te::edit::GeometriesUpdateTool::storeUndoCommand ( )

virtualinherited

Reimplemented in te::edit::VertexTool, te::edit::CreatePolygonTool, te::edit::MoveGeometryTool, te::edit::AggregateAreaTool, and te::edit::SubtractAreaTool.

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

Member Data Documentation

std::string te::edit::MergeGeometriesTool::m_chosenOid

protected

Definition at line 94 of file MergeGeometriesTool.h.

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 161 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 160 of file AbstractTool.h.

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 100 of file GeometriesUpdateTool.h.

te::gm::GeometryCollection* te::edit::MergeGeometriesTool::m_gc

protected

Definition at line 95 of file MergeGeometriesTool.h.

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 98 of file GeometriesUpdateTool.h.

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 101 of file GeometriesUpdateTool.h.

te::da::ObjectIdSet* te::edit::MergeGeometriesTool::m_oidSet

protected

Definition at line 96 of file MergeGeometriesTool.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/edit/qt/tools/MergeGeometriesTool.h
