#include <DeleteGeometryByAreaTool.h>

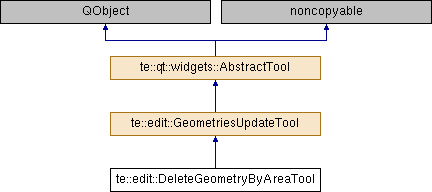

Inheritance diagram for te::edit::DeleteGeometryByAreaTool:

Signals
void	geometriesEdited ()

void	geometriesStarted ()

void	toolDeleted ()

Public Member Functions
void	disableMouseEvent (QMouseEvent::Type mEvent)

std::string	getLayerId ()

bool	isInUse () const

virtual void	resetVisualizationTool ()

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

Initializer Methods
Methods related to instantiation and destruction.
	DeleteGeometryByAreaTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, QObject parent=0)
	It constructs a remove geometries tool associated with the given map display. More...

	~DeleteGeometryByAreaTool ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

Protected Member Functions
void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Protected Attributes
te::gm::Geometry *	m_area

std::vector< te::gm::Coord2D >	m_coords
	The coord list managed by this tool. More...

QCursor	m_curCursor
	The current mapdisplay cursor. More...

QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_isInUse

bool	m_keepPreviousSelection
	Flag that indicates if the tool must keep the previous selection. More...

te::gm::Coord2D	m_lastPos
	The last position captured on mouse move event. More...

te::map::AbstractLayer *	m_layer

QMouseEvent::Type	m_mEvent

bool	m_selectionByPointing
	Flag that indicates if the selection is by pointing. More...

bool	m_selectionStarted
	Flag that indicates if selection operation was started. More...

Private Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

te::gm::Geometry *	buildPolygon ()

void	draw ()

void	drawPolygon ()

void	executeSelection (const te::gm::Envelope &e)

void	storeFeature ()

void	updateCursor ()

Detailed Description

Definition at line 65 of file DeleteGeometryByAreaTool.h.

Constructor & Destructor Documentation

te::edit::DeleteGeometryByAreaTool::DeleteGeometryByAreaTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		QObject *	parent = `0`
	)

It constructs a remove geometries tool associated with the given map display.

Parameters

display	The map display associated with the tool.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

te::edit::DeleteGeometryByAreaTool::~DeleteGeometryByAreaTool ( )

Destructor.

Member Function Documentation

te::gm::Envelope te::edit::DeleteGeometryByAreaTool::buildEnvelope ( const QPointF & pos )

private

te::gm::Geometry* te::edit::DeleteGeometryByAreaTool::buildPolygon ( )

private

void te::edit::GeometriesUpdateTool::disableMouseEvent ( QMouseEvent::Type mEvent )

inherited

void te::edit::DeleteGeometryByAreaTool::draw ( )

private

void te::edit::DeleteGeometryByAreaTool::drawPolygon ( )

private

void te::edit::DeleteGeometryByAreaTool::executeSelection ( const te::gm::Envelope & e )

private

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

void te::edit::GeometriesUpdateTool::geometriesStarted ( )

signalinherited

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, te::edit::SubtractAreaTool, and te::mnt::ProfileTools.

bool te::edit::DeleteGeometryByAreaTool::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::edit::DeleteGeometryByAreaTool::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

bool te::edit::DeleteGeometryByAreaTool::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

virtual void te::edit::GeometriesUpdateTool::resetVisualizationTool ( )

virtualinherited

Reimplemented in te::edit::VertexTool, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::MoveGeometryTool, te::edit::CreateLineTool, and te::edit::CreatePointTool.

void te::edit::GeometriesUpdateTool::setCursor ( const QCursor & cursor )

protectedvirtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Reimplemented from te::qt::widgets::AbstractTool.

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

inherited

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

inherited

void te::edit::DeleteGeometryByAreaTool::storeFeature ( )

private

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

void te::edit::DeleteGeometryByAreaTool::updateCursor ( )

private

Member Data Documentation

te::gm::Geometry* te::edit::DeleteGeometryByAreaTool::m_area

protected

Definition at line 127 of file DeleteGeometryByAreaTool.h.

std::vector<te::gm::Coord2D> te::edit::DeleteGeometryByAreaTool::m_coords

protected

The coord list managed by this tool.

Definition at line 122 of file DeleteGeometryByAreaTool.h.

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 173 of file AbstractTool.h.

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 172 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 171 of file AbstractTool.h.

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 102 of file GeometriesUpdateTool.h.

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 99 of file GeometriesUpdateTool.h.

bool te::edit::DeleteGeometryByAreaTool::m_keepPreviousSelection

protected

Flag that indicates if the tool must keep the previous selection.

Definition at line 125 of file DeleteGeometryByAreaTool.h.

te::gm::Coord2D te::edit::DeleteGeometryByAreaTool::m_lastPos

protected

The last position captured on mouse move event.

Definition at line 123 of file DeleteGeometryByAreaTool.h.

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 103 of file GeometriesUpdateTool.h.

QMouseEvent::Type te::edit::GeometriesUpdateTool::m_mEvent

protectedinherited

Definition at line 100 of file GeometriesUpdateTool.h.

bool te::edit::DeleteGeometryByAreaTool::m_selectionByPointing

protected

Flag that indicates if the selection is by pointing.

Definition at line 126 of file DeleteGeometryByAreaTool.h.

bool te::edit::DeleteGeometryByAreaTool::m_selectionStarted

protected

Flag that indicates if selection operation was started.

Definition at line 124 of file DeleteGeometryByAreaTool.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/edit/qt/tools/DeleteGeometryByAreaTool.h
