#include <ProfileTools.h>

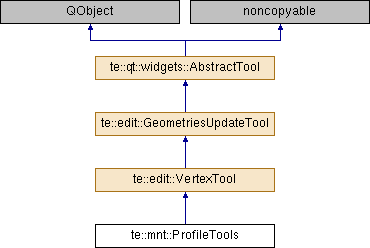

Inheritance diagram for te::mnt::ProfileTools:

Public Types
enum	StageType { FEATURE_SELECTION, VERTEX_SEARCH, VERTEX_FOUND, VERTEX_MOVING, VERTEX_READY_TO_ADD }
	Defines the operation stage to this tool. More...

Signals
void	geometriesEdited ()

void	geometriesStarted ()

void	toolDeleted ()

Public Member Functions
void	disableMouseEvent (QMouseEvent::Type mEvent)

std::string	getLayerId ()

std::vector< te::gm::LineString * >	getLines ()

EditType	getType ()

bool	isInUse () const

bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

	ProfileTools (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, QObject parent=0)

void	resetVisualizationTool ()

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

void	setLines (std::vector< te::gm::LineString * > &l)

void	setType (EditType t)

void	updateRepository ()

	~ProfileTools ()

AbstractTool Methods
Methods related with tool behavior.
virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

Protected Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

void	pickFeature (const te::map::AbstractLayerPtr &layer, const te::gm::Envelope &env)

void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

void	setStage (StageType stage)

void	updateCursor ()

void	updateRTree ()

Protected Attributes
QCursor	m_curCursor
	The current mapdisplay cursor. More...

StageType	m_currentStage

VertexIndex	m_currentVertexIndex

QCursor	m_cursor
	The default tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_fixGeometry

bool	m_isEdited

bool	m_isInUse

te::map::AbstractLayer *	m_layer

std::vector< te::gm::LineString * >	m_lines

QMouseEvent::Type	m_mEvent

te::sam::rtree::Index< VertexIndex, 8 >	m_rtree

UndoStackManager &	m_stack

EditType	m_type

Detailed Description

Definition at line 54 of file ProfileTools.h.

Member Enumeration Documentation

enum te::edit::VertexTool::StageType

inherited

Defines the operation stage to this tool.

Enumerator
FEATURE_SELECTION	Selection of feature.
VERTEX_SEARCH	Search of vertex.
VERTEX_FOUND	Vertex found.
VERTEX_MOVING	Vertex movement.
VERTEX_READY_TO_ADD	Vertex add.

Definition at line 85 of file VertexTool.h.

Constructor & Destructor Documentation

te::mnt::ProfileTools::ProfileTools	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		QObject *	parent = `0`
	)

te::mnt::ProfileTools::~ProfileTools ( )

Member Function Documentation

te::gm::Envelope te::edit::VertexTool::buildEnvelope ( const QPointF & pos )

protectedinherited

void te::edit::GeometriesUpdateTool::disableMouseEvent ( QMouseEvent::Type mEvent )

inherited

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

void te::edit::GeometriesUpdateTool::geometriesStarted ( )

signalinherited

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

std::vector<te::gm::LineString*> te::mnt::ProfileTools::getLines ( )

inline

Definition at line 69 of file ProfileTools.h.

EditType te::mnt::ProfileTools::getType ( )

inline

Definition at line 65 of file ProfileTools.h.

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

bool te::mnt::ProfileTools::mouseDoubleClickEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented from te::edit::VertexTool.

bool te::mnt::ProfileTools::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::edit::VertexTool.

bool te::mnt::ProfileTools::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::edit::VertexTool.

bool te::mnt::ProfileTools::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::edit::VertexTool.

void te::edit::VertexTool::pickFeature	(	const te::map::AbstractLayerPtr &	layer,
		const te::gm::Envelope &	env
	)

protectedinherited

void te::edit::VertexTool::resetVisualizationTool ( )

virtualinherited

Reimplemented from te::edit::GeometriesUpdateTool.

void te::edit::GeometriesUpdateTool::setCursor ( const QCursor & cursor )

protectedvirtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Reimplemented from te::qt::widgets::AbstractTool.

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

inherited

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

inherited

void te::mnt::ProfileTools::setLines ( std::vector< te::gm::LineString * > & l )

void te::edit::VertexTool::setStage ( StageType stage )

protectedinherited

void te::mnt::ProfileTools::setType ( EditType t )

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

void te::edit::VertexTool::updateCursor ( )

protectedinherited

void te::mnt::ProfileTools::updateRepository ( )

void te::edit::VertexTool::updateRTree ( )

protectedinherited

Member Data Documentation

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 173 of file AbstractTool.h.

StageType te::edit::VertexTool::m_currentStage

protectedinherited

Definition at line 154 of file VertexTool.h.

VertexIndex te::edit::VertexTool::m_currentVertexIndex

protectedinherited

Definition at line 152 of file VertexTool.h.

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 172 of file AbstractTool.h.

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 171 of file AbstractTool.h.

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 102 of file GeometriesUpdateTool.h.

bool te::edit::VertexTool::m_fixGeometry

protectedinherited

Definition at line 156 of file VertexTool.h.

bool te::edit::VertexTool::m_isEdited

protectedinherited

Definition at line 155 of file VertexTool.h.

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 99 of file GeometriesUpdateTool.h.

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 103 of file GeometriesUpdateTool.h.

std::vector<te::gm::LineString*> te::edit::VertexTool::m_lines

protectedinherited

Definition at line 151 of file VertexTool.h.

QMouseEvent::Type te::edit::GeometriesUpdateTool::m_mEvent

protectedinherited

Definition at line 100 of file GeometriesUpdateTool.h.

te::sam::rtree::Index<VertexIndex, 8> te::edit::VertexTool::m_rtree

protectedinherited

Definition at line 153 of file VertexTool.h.

UndoStackManager& te::edit::VertexTool::m_stack

protectedinherited

Definition at line 157 of file VertexTool.h.

EditType te::mnt::ProfileTools::m_type

protected

Definition at line 82 of file ProfileTools.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/mnt/qt/ProfileTools.h
