te::qt::plugins::edit::Plugin Class Reference

#include <Plugin.h>

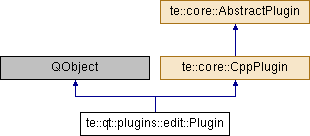

Inheritance diagram for te::qt::plugins::edit::Plugin:

Signals
void	triggered (te::qt::af::evt::Event *e)

Public Member Functions
const PluginInfo &	info () const
	It returns the PluginInfo of the CppPlugin. More...
bool	initialized () const
	It returns true or false if the CppPlugin was initialized. More...
	Plugin (const te::core::PluginInfo &pluginInfo)
void	shutdown ()
	This method will be called by applicatons to shutdown plugin's functionality. More...
void	startup ()
	This method will be called by applications to startup some plugin's functionality. More...
	~Plugin ()

Protected Slots
void	onActionActivated (bool)
	Slot function used when a action was selected. More...
void	onApplicationTriggered (te::qt::af::evt::Event *e)
void	onGeometriesChanged ()
void	onStashedLayer (te::map::AbstractLayer *layer)
void	onUpdateDelegate (const bool &add)

Protected Member Functions
void	drawStashed ()
te::qt::widgets::LayerItemView *	getLayerExplorer ()

Protected Attributes
QAction *	m_action
	Action used to call the process. More...
EditDelegate *	m_delegate
bool	m_initialized
PluginInfo	m_pinfo
ToolBar *	m_toolbar
	Main toolbar of TerraLib Edit Qt Plugin. More...

Detailed Description

Definition at line 69 of file Plugin.h.

Constructor & Destructor Documentation

te::qt::plugins::edit::Plugin::Plugin

(

const te::core::PluginInfo &

pluginInfo

)

te::qt::plugins::edit::Plugin::~Plugin

(

)

Member Function Documentation

void te::qt::plugins::edit::Plugin::drawStashed ( )

protected

te::qt::widgets::LayerItemView* te::qt::plugins::edit::Plugin::getLayerExplorer ( )

protected

const PluginInfo& te::core::CppPlugin::info ( ) const

virtualinherited

It returns the PluginInfo of the CppPlugin.

Returns

The CppPlugin information

Implements te::core::AbstractPlugin.

bool te::core::CppPlugin::initialized ( ) const

virtualinherited

It returns true or false if the CppPlugin was initialized.

Returns

The current state of the CppPlugin

Implements te::core::AbstractPlugin.

void te::qt::plugins::edit::Plugin::onActionActivated ( bool  )

protectedslot

Slot function used when a action was selected.

Parameters

checked

Flag used in case a toggle action.

void te::qt::plugins::edit::Plugin::onApplicationTriggered ( te::qt::af::evt::Event *  e )

protectedslot

void te::qt::plugins::edit::Plugin::onGeometriesChanged ( )

protectedslot

void te::qt::plugins::edit::Plugin::onStashedLayer ( te::map::AbstractLayer *  layer )

protectedslot

void te::qt::plugins::edit::Plugin::onUpdateDelegate ( const bool &  add )

protectedslot

void te::qt::plugins::edit::Plugin::shutdown ( )

virtual

This method will be called by applicatons to shutdown plugin's functionality.

Exceptions

PluginShutdownException

It may throws an exception.

Implements te::core::AbstractPlugin.

void te::qt::plugins::edit::Plugin::startup ( )

virtual

This method will be called by applications to startup some plugin's functionality.

Exceptions

PluginStartupException

It may throws an exception.

Implements te::core::AbstractPlugin.

void te::qt::plugins::edit::Plugin::triggered ( te::qt::af::evt::Event *  e )

signal

Member Data Documentation

QAction* te::qt::plugins::edit::Plugin::m_action

protected

Action used to call the process.

Definition at line 110 of file Plugin.h.

EditDelegate* te::qt::plugins::edit::Plugin::m_delegate

protected

Definition at line 112 of file Plugin.h.

bool te::core::CppPlugin::m_initialized

protectedinherited

Definition at line 73 of file CppPlugin.h.

PluginInfo te::core::CppPlugin::m_pinfo

protectedinherited

Definition at line 72 of file CppPlugin.h.

ToolBar* te::qt::plugins::edit::Plugin::m_toolbar

protected

Main toolbar of TerraLib Edit Qt Plugin.

Definition at line 109 of file Plugin.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/qt/plugins/edit/Plugin.h
