This class implements a concrete tool to move geometries. More...

#include <MoveGeometryTool.h>

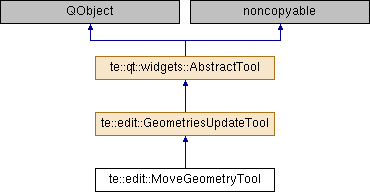

Inheritance diagram for te::edit::MoveGeometryTool:

Signals
void	geometriesEdited ()

void	geometriesStarted ()

void	toolDeleted ()

Public Member Functions
void	disableMouseEvent (QMouseEvent::Type mEvent)

std::string	getLayerId ()

bool	isInUse () const

void	resetVisualizationTool ()

void	setInUse (const bool &status)

void	setLayer (te::map::AbstractLayer *layer)

Initializer Methods
Methods related to instantiation and destruction.
	MoveGeometryTool (te::qt::widgets::MapDisplay display, const te::map::AbstractLayerPtr &layer, QObject parent=0)
	It constructs a move geometry tool associated with the given map display. More...

	~MoveGeometryTool ()
	Destructor. More...

AbstractTool Methods
Methods related with tool behavior.
bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

AbstractTool Methods
Methods related with tool behavior.
virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

Protected Member Functions
void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Protected Attributes
QCursor	m_curCursor
	The current mapdisplay cursor. More...

QCursor	m_cursor
	The default tool cursor. More...

QPointF	m_delta
	Difference between pressed point and destination point on mouse move. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

Feature *	m_feature

bool	m_isInUse

te::map::AbstractLayer *	m_layer

QMouseEvent::Type	m_mEvent

bool	m_moveStarted
	Flag that indicates if move operation was started. More...

QPointF	m_origin
	Origin point on mouse pressed. More...

UndoStackManager &	m_stack

std::vector< te::edit::Feature * >	m_vecFeatures

Private Member Functions
te::gm::Envelope	buildEnvelope (const QPointF &pos)

void	draw ()

void	pickFeature (const QPointF &pos)

void	reset ()

void	storeFeature ()

void	storeUndoCommand ()

void	updateCursor ()

Detailed Description

This class implements a concrete tool to move geometries.

This class implements a concrete tool to rotate geometries.

Definition at line 66 of file MoveGeometryTool.h.

Constructor & Destructor Documentation

◆ MoveGeometryTool()

te::edit::MoveGeometryTool::MoveGeometryTool	(	te::qt::widgets::MapDisplay *	display,
		const te::map::AbstractLayerPtr &	layer,
		QObject *	parent = `0`
	)

It constructs a move geometry tool associated with the given map display.

Parameters

display	The map display associated with the tool.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

◆ ~MoveGeometryTool()

te::edit::MoveGeometryTool::~MoveGeometryTool ( )

Destructor.

Member Function Documentation

◆ buildEnvelope()

te::gm::Envelope te::edit::MoveGeometryTool::buildEnvelope ( const QPointF & pos )

private

◆ disableMouseEvent()

void te::edit::GeometriesUpdateTool::disableMouseEvent ( QMouseEvent::Type mEvent )

inherited

◆ draw()

void te::edit::MoveGeometryTool::draw ( )

private

◆ geometriesEdited

void te::edit::GeometriesUpdateTool::geometriesEdited ( )

signalinherited

◆ geometriesStarted

void te::edit::GeometriesUpdateTool::geometriesStarted ( )

signalinherited

◆ getLayerId()

std::string te::edit::GeometriesUpdateTool::getLayerId ( )

inherited

◆ isInUse()

bool te::edit::GeometriesUpdateTool::isInUse ( ) const

inherited

◆ keyPressEvent()

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::qt::widgets::Measure.

◆ mouseDoubleClickEvent()

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::VertexTool, te::qt::widgets::Measure, te::edit::SplitPolygonTool, te::edit::CreatePolygonTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::qt::widgets::PolygonAcquire, te::edit::AggregateAreaTool, te::edit::SubtractAreaTool, and te::mnt::ProfileTools.

◆ mouseMoveEvent()

bool te::edit::MoveGeometryTool::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mousePressEvent()

bool te::edit::MoveGeometryTool::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mouseReleaseEvent()

bool te::edit::MoveGeometryTool::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ pickFeature()

void te::edit::MoveGeometryTool::pickFeature ( const QPointF & pos )

private

◆ reset()

void te::edit::MoveGeometryTool::reset ( )

private

◆ resetVisualizationTool()

void te::edit::MoveGeometryTool::resetVisualizationTool ( )

virtual

Reimplemented from te::edit::GeometriesUpdateTool.

◆ setCursor()

void te::edit::GeometriesUpdateTool::setCursor ( const QCursor & cursor )

protectedvirtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Reimplemented from te::qt::widgets::AbstractTool.

◆ setInUse()

void te::edit::GeometriesUpdateTool::setInUse ( const bool & status )

inherited

◆ setLayer()

void te::edit::GeometriesUpdateTool::setLayer ( te::map::AbstractLayer * layer )

inherited

◆ storeFeature()

void te::edit::MoveGeometryTool::storeFeature ( )

private

◆ storeUndoCommand()

void te::edit::MoveGeometryTool::storeUndoCommand ( )

private

◆ toolDeleted

void te::edit::GeometriesUpdateTool::toolDeleted ( )

signalinherited

◆ updateCursor()

void te::edit::MoveGeometryTool::updateCursor ( )

private

Member Data Documentation

◆ m_curCursor

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 173 of file AbstractTool.h.

◆ m_cursor

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 172 of file AbstractTool.h.

◆ m_delta

QPointF te::edit::MoveGeometryTool::m_delta

protected

Difference between pressed point and destination point on mouse move.

Definition at line 126 of file MoveGeometryTool.h.

◆ m_display

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 171 of file AbstractTool.h.

◆ m_feature

Feature* te::edit::GeometriesUpdateTool::m_feature

protectedinherited

Definition at line 102 of file GeometriesUpdateTool.h.

◆ m_isInUse

bool te::edit::GeometriesUpdateTool::m_isInUse

protectedinherited

Definition at line 99 of file GeometriesUpdateTool.h.

◆ m_layer

te::map::AbstractLayer* te::edit::GeometriesUpdateTool::m_layer

protectedinherited

Definition at line 103 of file GeometriesUpdateTool.h.

◆ m_mEvent

QMouseEvent::Type te::edit::GeometriesUpdateTool::m_mEvent

protectedinherited

Definition at line 100 of file GeometriesUpdateTool.h.

◆ m_moveStarted

bool te::edit::MoveGeometryTool::m_moveStarted

protected

Flag that indicates if move operation was started.

Definition at line 124 of file MoveGeometryTool.h.

◆ m_origin

QPointF te::edit::MoveGeometryTool::m_origin

protected

Origin point on mouse pressed.

Definition at line 125 of file MoveGeometryTool.h.

◆ m_stack

UndoStackManager& te::edit::MoveGeometryTool::m_stack

protected

Definition at line 128 of file MoveGeometryTool.h.

◆ m_vecFeatures

std::vector<te::edit::Feature*> te::edit::MoveGeometryTool::m_vecFeatures

protected

Definition at line 127 of file MoveGeometryTool.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/edit/qt/tools/MoveGeometryTool.h
