te::qt::widgets::SimplePropertyWidgetFactory Class Reference

A factory to build widget objects. More...

#include <SimplePropertyWidgetFactory.h>

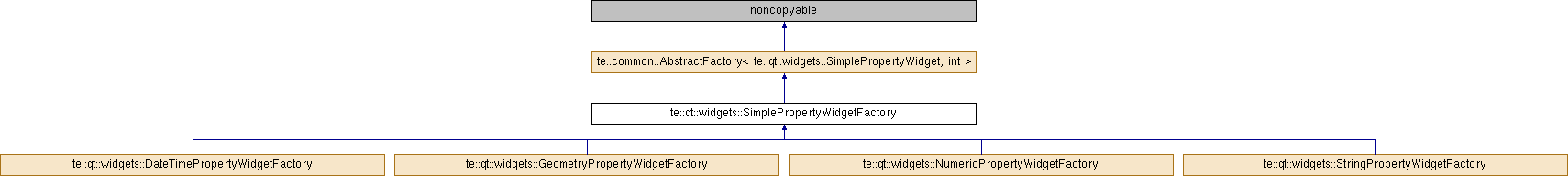

Inheritance diagram for te::qt::widgets::SimplePropertyWidgetFactory:

Public Types
typedef FactoryDictionary< AbstractFactory< te::qt::widgets::SimplePropertyWidget, int, std::less< int > >, int, std::less< int > >	dictionary_type
typedef AbstractFactory	factory_type

Public Member Functions
const int &	getKey () const
	It returns the factory key associated to the concreate factory. More...
virtual int	getType () const =0
	It returns the type of component widget that the factory knows how to create. More...
virtual	~SimplePropertyWidgetFactory ()
	Virtual destructor. More...

Static Public Member Functions
static const factory_type *	find (const int &factoryKey)
static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...
static te::qt::widgets::SimplePropertyWidget *	make (const int &type)
static te::qt::widgets::SimplePropertyWidget *	make (const int &type, QWidget *parent=0)

Protected Member Functions
virtual te::qt::widgets::SimplePropertyWidget *	build ()=0
	Concrete factories (derived from this one) must implement this method in order to create objects. More...
virtual te::qt::widgets::SimplePropertyWidget *	create (QWidget *Parent=0)=0
	SimplePropertyWidgetFactory (const int &factoryKey)
	It creates the factory. More...

Protected Attributes
int	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Detailed Description

A factory to build widget objects.

Definition at line 49 of file SimplePropertyWidgetFactory.h.

Member Typedef Documentation

dictionary_type

typedef FactoryDictionary<AbstractFactory<te::qt::widgets::SimplePropertyWidget , int , std::less<int > >, int , std::less<int > > te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

factory_type

typedef AbstractFactory te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

~SimplePropertyWidgetFactory()

virtual te::qt::widgets::SimplePropertyWidgetFactory::~SimplePropertyWidgetFactory ( )

virtual

Virtual destructor.

Note

It will automatically unregister the factory from the dictionary.

SimplePropertyWidgetFactory()

te::qt::widgets::SimplePropertyWidgetFactory::SimplePropertyWidgetFactory ( const int &  factoryKey )

protected

It creates the factory.

The key of a ComponentWidgetFactory is a string.

Parameters

factoryKey

The key that identifies the factory.

Member Function Documentation

build()

virtual te::qt::widgets::SimplePropertyWidget * te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::build ( )

protectedpure virtualinherited

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns

It returns an object created by the concrete factory.

Implemented in te::qt::widgets::DateTimePropertyWidgetFactory, te::qt::widgets::GeometryPropertyWidgetFactory, te::qt::widgets::NumericPropertyWidgetFactory, and te::qt::widgets::StringPropertyWidgetFactory.

create()

virtual te::qt::widgets::SimplePropertyWidget* te::qt::widgets::SimplePropertyWidgetFactory::create ( QWidget *  Parent = 0 )

protectedpure virtual

Implemented in te::qt::widgets::DateTimePropertyWidgetFactory, te::qt::widgets::GeometryPropertyWidgetFactory, te::qt::widgets::NumericPropertyWidgetFactory, and te::qt::widgets::StringPropertyWidgetFactory.

find()

const AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::factory_type * te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::find ( const int &  factoryKey )

inlinestaticinherited

Definition at line 164 of file AbstractFactory.h.

getDictionary()

AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::dictionary_type & te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::getDictionary ( )

inlinestaticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns

A reference to the internal dictionary.

Definition at line 157 of file AbstractFactory.h.

getKey()

const int & te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::getKey ( ) const

inlineinherited

It returns the factory key associated to the concreate factory.

Returns

The factory key associated to the concreate factory.

Definition at line 140 of file AbstractFactory.h.

getType()

virtual int te::qt::widgets::SimplePropertyWidgetFactory::getType ( ) const

pure virtual

It returns the type of component widget that the factory knows how to create.

Returns

The type of component widget that the factory knows how to create.

Implemented in te::qt::widgets::DateTimePropertyWidgetFactory, te::qt::widgets::GeometryPropertyWidgetFactory, te::qt::widgets::NumericPropertyWidgetFactory, and te::qt::widgets::StringPropertyWidgetFactory.

make() [1/2]

static te::qt::widgets::SimplePropertyWidget* te::qt::widgets::SimplePropertyWidgetFactory::make ( const int &  type )

static

make() [2/2]

static te::qt::widgets::SimplePropertyWidget* te::qt::widgets::SimplePropertyWidgetFactory::make ( const int &  type, QWidget *  parent = 0  )

static

Member Data Documentation

m_factoryKey

int te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/qt/widgets/property/SimplePropertyWidgetFactory.h
