A factory to build widget objects. More...

#include <ChartWidgetFactory.h>

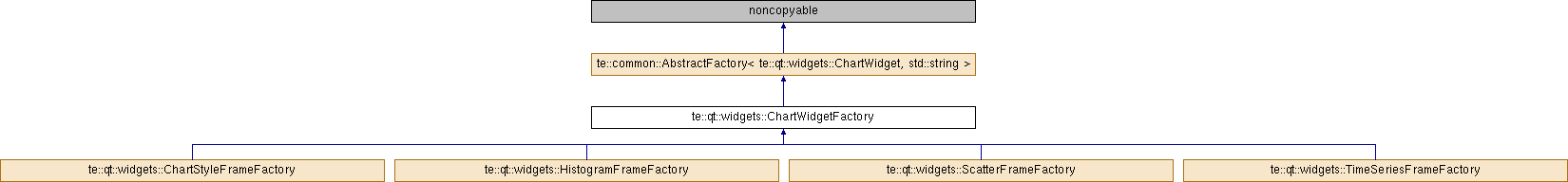

Inheritance diagram for te::qt::widgets::ChartWidgetFactory:

Public Types
typedef FactoryDictionary< AbstractFactory< te::qt::widgets::ChartWidget, std::string, std::less< std::string > >, std::string, std::less< std::string > >	dictionary_type

typedef AbstractFactory	factory_type

Public Member Functions
const std::string &	getKey () const
	It returns the factory key associated to the concreate factory. More...

virtual	~ChartWidgetFactory ()
	Virtual destructor. More...

Static Public Member Functions
static const factory_type *	find (const std::string &factoryKey)

static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...

static te::qt::widgets::ChartWidget *	make (const std::string &cwType)

static te::qt::widgets::ChartWidget *	make (const std::string &cwType, QWidget *parent=0)

Protected Member Functions
virtual te::qt::widgets::ChartWidget *	build ()=0
	Concrete factories (derived from this one) must implement this method in order to create objects. More...

	ChartWidgetFactory (const std::string &factoryKey)
	It creates the factory. More...

virtual te::qt::widgets::ChartWidget *	create (QWidget *Parent=0)=0

Protected Attributes
std::string	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Detailed Description

A factory to build widget objects.

Definition at line 50 of file ChartWidgetFactory.h.

Member Typedef Documentation

◆ dictionary_type

typedef FactoryDictionary<AbstractFactory<te::qt::widgets::ChartWidget , std::string , std::less<std::string > >, std::string , std::less<std::string > > te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

◆ factory_type

typedef AbstractFactory te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

◆ ~ChartWidgetFactory()

virtual te::qt::widgets::ChartWidgetFactory::~ChartWidgetFactory ( )

virtual

Virtual destructor.

Note: It will automatically unregister the factory from the dictionary.

◆ ChartWidgetFactory()

te::qt::widgets::ChartWidgetFactory::ChartWidgetFactory ( const std::string & factoryKey )

protected

It creates the factory.

The key of a ChartWidgetFactory is a string.

Parameters

factoryKey The key that identifies the factory.

Member Function Documentation

◆ build()

virtual te::qt::widgets::ChartWidget * te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::build ( )

protectedpure virtualinherited

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns: It returns an object created by the concrete factory.

Implemented in te::qt::widgets::ChartStyleFrameFactory, te::qt::widgets::HistogramFrameFactory, te::qt::widgets::ScatterFrameFactory, and te::qt::widgets::TimeSeriesFrameFactory.

◆ create()

virtual te::qt::widgets::ChartWidget* te::qt::widgets::ChartWidgetFactory::create ( QWidget * Parent = 0 )

protectedpure virtual

Implemented in te::qt::widgets::ChartStyleFrameFactory, te::qt::widgets::HistogramFrameFactory, te::qt::widgets::ScatterFrameFactory, and te::qt::widgets::TimeSeriesFrameFactory.

◆ find()

const AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::factory_type * te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::find ( const std::string & factoryKey )

inlinestaticinherited

Definition at line 164 of file AbstractFactory.h.

References te::common::AbstractFactory< TPRODUCT, TFACTORYKEY, TKEYCOMPARE >::find().

◆ getDictionary()

AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::dictionary_type & te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::getDictionary ( )

inlinestaticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns: A reference to the internal dictionary.

Definition at line 157 of file AbstractFactory.h.

◆ getKey()

const std::string & te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::getKey ( ) const

inlineinherited

It returns the factory key associated to the concreate factory.

Returns: The factory key associated to the concreate factory.

Definition at line 140 of file AbstractFactory.h.

◆ make() [1/2]

static te::qt::widgets::ChartWidget* te::qt::widgets::ChartWidgetFactory::make ( const std::string & cwType )

static

◆ make() [2/2]

static te::qt::widgets::ChartWidget* te::qt::widgets::ChartWidgetFactory::make	(	const std::string &	cwType,
		QWidget *	parent = `0`
	)

static

Member Data Documentation

◆ m_factoryKey

std::string te::common::AbstractFactory< te::qt::widgets::ChartWidget , std::string , std::less<std::string > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_master/src/terralib/qt/widgets/charts/ChartWidgetFactory.h
