te::qt::widgets::PointSymbolizerProperty Class Reference

A widget used to define the point symbolizer properties, such as: More...

#include <PointSymbolizerProperty.h>

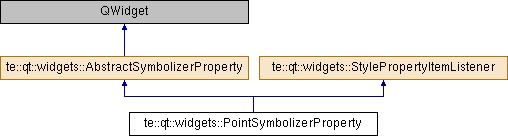

Inheritance diagram for te::qt::widgets::PointSymbolizerProperty:

Signals
void	symbolizerChanged ()

Public Member Functions
virtual te::se::Symbolizer *	getSymbolizer () const override
	Gets the configured point symbolizer element. More...
virtual void	handleValueChanged (QtProperty *qProperty, const QVariant &qVariant) override
	< This function will be called every time a value has changed More...
virtual void	setSymbolizer (const te::se::Symbolizer *symb) override
	Sets a point symbolizer element to this widget. More...
Initializer Methods
Methods related to instantiation and destruction.
	PointSymbolizerProperty (QWidget *parent)
	Constructor. More...
	~PointSymbolizerProperty ()
	Destructor. More...

Protected Attributes
te::qt::widgets::GraphicFillPropertyItem *	m_graphProp

Detailed Description

A widget used to define the point symbolizer properties, such as:

• general
• mark
  • basic fill
  • basic stroke
  • glyph

Definition at line 70 of file PointSymbolizerProperty.h.

Constructor & Destructor Documentation

PointSymbolizerProperty()

te::qt::widgets::PointSymbolizerProperty::PointSymbolizerProperty

(

QWidget *

parent

)

Constructor.

~PointSymbolizerProperty()

te::qt::widgets::PointSymbolizerProperty::~PointSymbolizerProperty

(

)

Destructor.

Member Function Documentation

getSymbolizer()

virtual te::se::Symbolizer* te::qt::widgets::PointSymbolizerProperty::getSymbolizer ( ) const

overridevirtual

Gets the configured point symbolizer element.

Returns

The configured point symbolizer element.

Note

The caller will take the ownership of the returned symbolizer.

Implements te::qt::widgets::AbstractSymbolizerProperty.

handleValueChanged()

virtual void te::qt::widgets::PointSymbolizerProperty::handleValueChanged ( QtProperty *  qProperty, const QVariant &  qVariant  )

overridevirtual

< This function will be called every time a value has changed

Implements te::qt::widgets::StylePropertyItemListener.

setSymbolizer()

virtual void te::qt::widgets::PointSymbolizerProperty::setSymbolizer ( const te::se::Symbolizer *  symb )

overridevirtual

Sets a point symbolizer element to this widget.

Parameters

symb	A valid point symbolizer element.

Note

The widget will NOT take the ownership of the given symbolizer.

The widget form will be update based on given symbolizer parameters.

Implements te::qt::widgets::AbstractSymbolizerProperty.

symbolizerChanged

void te::qt::widgets::AbstractSymbolizerProperty::symbolizerChanged ( )

signalinherited

This signal is emitted when the internal polygon symbolizer element is changed.

Member Data Documentation

m_graphProp

te::qt::widgets::GraphicFillPropertyItem* te::qt::widgets::PointSymbolizerProperty::m_graphProp

protected

Definition at line 111 of file PointSymbolizerProperty.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/widgets/se/PointSymbolizerProperty.h
