te::qt::widgets::LineSymbolizerProperty Class Reference

A widget used to define the polygon symbolizer properties, such as: More...

#include <LineSymbolizerProperty.h>

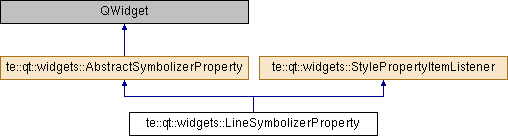

Inheritance diagram for te::qt::widgets::LineSymbolizerProperty:

Signals
void	symbolizerChanged ()

Public Member Functions
virtual te::se::Symbolizer *	getSymbolizer () const override
	Gets the configured line symbolizer element. More...
virtual void	handleValueChanged (QtProperty *qProperty, const QVariant &qVariant) override
	< This function will be called every time a value has changed More...
virtual void	setSymbolizer (const te::se::Symbolizer *symb) override
	Sets a line symbolizer element to this widget. More...
Initializer Methods
Methods related to instantiation and destruction.
	LineSymbolizerProperty (QWidget *parent)
	Constructor. More...
	~LineSymbolizerProperty ()
	Destructor. More...

Protected Attributes
LinePerpendicularOffsetPropertyItem *	m_perpendicularOffset
	A widget used to define the Perpendicular Offset between a line and marks. More...
StrokePropertyItem *	m_strokePropItem
	A widget used to define the Stroke Property. More...

Detailed Description

A widget used to define the polygon symbolizer properties, such as:

• basic stroke

Definition at line 64 of file LineSymbolizerProperty.h.

Constructor & Destructor Documentation

LineSymbolizerProperty()

te::qt::widgets::LineSymbolizerProperty::LineSymbolizerProperty

(

QWidget *

parent

)

Constructor.

~LineSymbolizerProperty()

te::qt::widgets::LineSymbolizerProperty::~LineSymbolizerProperty

(

)

Destructor.

Member Function Documentation

getSymbolizer()

virtual te::se::Symbolizer* te::qt::widgets::LineSymbolizerProperty::getSymbolizer ( ) const

overridevirtual

Gets the configured line symbolizer element.

Returns

The configured line symbolizer element.

Note

The caller will take the ownership of the returned symbolizer.

Implements te::qt::widgets::AbstractSymbolizerProperty.

handleValueChanged()

virtual void te::qt::widgets::LineSymbolizerProperty::handleValueChanged ( QtProperty *  qProperty, const QVariant &  qVariant  )

overridevirtual

< This function will be called every time a value has changed

Implements te::qt::widgets::StylePropertyItemListener.

setSymbolizer()

virtual void te::qt::widgets::LineSymbolizerProperty::setSymbolizer ( const te::se::Symbolizer *  symb )

overridevirtual

Sets a line symbolizer element to this widget.

Parameters

symb	A valid line symbolizer element.

Note

The widget will NOT take the ownership of the given symbolizer.

The widget form will be update based on given symbolizer parameters.

Implements te::qt::widgets::AbstractSymbolizerProperty.

symbolizerChanged

void te::qt::widgets::AbstractSymbolizerProperty::symbolizerChanged ( )

signalinherited

This signal is emitted when the internal polygon symbolizer element is changed.

Member Data Documentation

m_perpendicularOffset

LinePerpendicularOffsetPropertyItem* te::qt::widgets::LineSymbolizerProperty::m_perpendicularOffset

protected

A widget used to define the Perpendicular Offset between a line and marks.

Definition at line 108 of file LineSymbolizerProperty.h.

m_strokePropItem

StrokePropertyItem* te::qt::widgets::LineSymbolizerProperty::m_strokePropItem

protected

A widget used to define the Stroke Property.

Definition at line 107 of file LineSymbolizerProperty.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/widgets/se/LineSymbolizerProperty.h
