Public Member Functions | Public Attributes | List of all members
te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters Class Reference

Segmenter Parameters. More...

#include <SegmenterRegionGrowingBaatzStrategy.h>

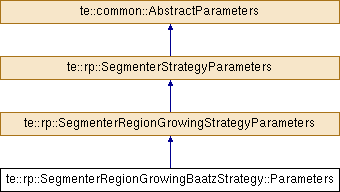

Inheritance diagram for te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters:
te::rp::SegmenterRegionGrowingStrategyParameters te::rp::SegmenterStrategyParameters te::common::AbstractParameters

Public Member Functions

AbstractParameters * clone () const
 Create a clone copy of this instance. More...

const Parameters & operator= (const Parameters &params)

 Parameters ()

void reset () throw ( te::rp::Exception )
 Clear all internal allocated resources and reset the parameters instance to its initial state. More...

 ~Parameters ()


Public Attributes

bool m_enableLocalMutualBestFitting
 If enabled, a merge only occurs between two segments if the minimum dissimilarity criteria is best fulfilled mutually (default: false). More...

unsigned int m_minSegmentSize
 A positive minimum segment size (pixels number - default: 1). More...

double m_segmentsSimilarityThreshold
 Segments similarity treshold - Use lower values to merge only those segments that are more similar - Higher values will allow more segments to be merged - valid values range: positive values - default: 0 ). More...

unsigned int m_segmentsSimIncreaseSteps
 The maximum number of steps to increment the similarity threshold value for the cases where no segment merge occurred - zero will disable segment similarity threshold increments - defaul: 2. More...

Baatz specific parameters
std::vector< double > m_bandsWeights
 The weight given to each band, when applicable (note: the bands weights sum must always be 1) or an empty vector indicating that all bands have the same weight. More...

double m_colorWeight
 The weight given to the color component, deafult:0.9, valid range: [0,1]. More...

double m_compactnessWeight
 The weight given to the compactness component, deafult:0.5, valid range: [0,1]. More...


Detailed Description

Segmenter Parameters.

Definition at line 59 of file SegmenterRegionGrowingBaatzStrategy.h.

Constructor & Destructor Documentation

◆ Parameters()

te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::Parameters ( )

◆ ~Parameters()

te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::~Parameters ( )

Member Function Documentation

◆ clone()

AbstractParameters* te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::clone ( ) const
virtual

Create a clone copy of this instance.

Returns
A clone copy of this instance.
Note
The caller will take the ownership of the returned pointer.

Implements te::common::AbstractParameters.

◆ operator=()

const Parameters& te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::operator= ( const Parameters &  params)

◆ reset()

void te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::reset ( )
throw (te::rp::Exception
)
virtual

Clear all internal allocated resources and reset the parameters instance to its initial state.

Reimplemented from te::rp::SegmenterRegionGrowingStrategyParameters.

Member Data Documentation

◆ m_bandsWeights

std::vector< double > te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::m_bandsWeights

The weight given to each band, when applicable (note: the bands weights sum must always be 1) or an empty vector indicating that all bands have the same weight.

Definition at line 67 of file SegmenterRegionGrowingBaatzStrategy.h.

◆ m_colorWeight

double te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::m_colorWeight

The weight given to the color component, deafult:0.9, valid range: [0,1].

Definition at line 69 of file SegmenterRegionGrowingBaatzStrategy.h.

◆ m_compactnessWeight

double te::rp::SegmenterRegionGrowingBaatzStrategy::Parameters::m_compactnessWeight

The weight given to the compactness component, deafult:0.5, valid range: [0,1].

Definition at line 71 of file SegmenterRegionGrowingBaatzStrategy.h.

◆ m_enableLocalMutualBestFitting

bool te::rp::SegmenterRegionGrowingStrategyParameters::m_enableLocalMutualBestFitting
inherited

If enabled, a merge only occurs between two segments if the minimum dissimilarity criteria is best fulfilled mutually (default: false).

Definition at line 50 of file SegmenterRegionGrowingStrategyParameters.h.

◆ m_minSegmentSize

unsigned int te::rp::SegmenterRegionGrowingStrategyParameters::m_minSegmentSize
inherited

A positive minimum segment size (pixels number - default: 1).

Definition at line 44 of file SegmenterRegionGrowingStrategyParameters.h.

◆ m_segmentsSimilarityThreshold

double te::rp::SegmenterRegionGrowingStrategyParameters::m_segmentsSimilarityThreshold
inherited

Segments similarity treshold - Use lower values to merge only those segments that are more similar - Higher values will allow more segments to be merged - valid values range: positive values - default: 0 ).

Definition at line 46 of file SegmenterRegionGrowingStrategyParameters.h.

◆ m_segmentsSimIncreaseSteps

unsigned int te::rp::SegmenterRegionGrowingStrategyParameters::m_segmentsSimIncreaseSteps
inherited

The maximum number of steps to increment the similarity threshold value for the cases where no segment merge occurred - zero will disable segment similarity threshold increments - defaul: 2.

Definition at line 48 of file SegmenterRegionGrowingStrategyParameters.h.

The documentation for this class was generated from the following file:
