A base class for a compound property (non-atomic properties). More...

#include <CompositeProperty.h>

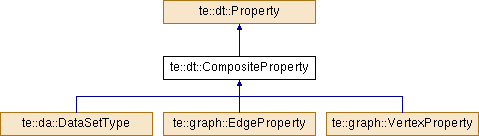

Inheritance diagram for te::dt::CompositeProperty:

Public Member Functions
void	add (const boost::ptr_vector< te::dt::Property > &ps)

void	add (const std::vector< Property * > &ps)
	It adds a list of property types to the CompositeProperty. More...

void	add (Property *p)
	It adds a new property to the CompositeProperty. More...

virtual void	clear ()
	It clears the CompositeProperty definition. More...

virtual Property *	clone () const
	It returns a clone of the object. More...

	CompositeProperty (const CompositeProperty &rhs)
	Copy constructor. More...

	CompositeProperty (const std::string &cname, const std::string &name, unsigned int id=0, Property *parent=0)
	It creates a new CompositeProperty. More...

void	copy (const std::vector< Property * > &ps)
	It copies the properties from the vector. More...

Property *	findFirstPropertyOfType (const int t) const
	returns the first property of the given data type. Caller doesn't take ownership of the returned pointer. More...

const std::string &	getCompositeName () const
	It returns the name of the composite type. More...

const std::string &	getDatasetName () const
	It returns the name of the propery's dataset. More...

unsigned int	getId () const
	It returns the property identifier. More...

const std::string &	getName () const
	It returns the property name. More...

Property *	getParent () const
	It returns the parent of this property, or NULL, if it doesn't have one. More...

std::vector< Property * > &	getProperties ()
	It returns the list of properties describing the CompositeProperty. More...

const std::vector< Property * > &	getProperties () const
	It returns the list of properties describing the CompositeProperty. More...

Property *	getProperty (const std::string &name) const
	It returns the property with the given name or NULL if none is found. More...

Property *	getProperty (std::size_t i) const
	It returns the i-th property. More...

Property *	getPropertyById (unsigned int id) const
	It searches for a property with the given ID. More...

std::size_t	getPropertyPosition (const Property *p) const
	It returns the property position . More...

std::size_t	getPropertyPosition (const std::string &name) const
	It returns the property position based on its name. More...

int	getType () const
	It returns the property data type. More...

bool	has (Property *p) const
	It checks if the Property "p" is associated to this property or any other parent. More...

bool	hasPropertyOfType (const int t) const
	Tells if there is a property of the given data type. More...

void	insert (std::size_t position, Property *p)
	It inserts a new property to the CompositeProperty. More...

CompositeProperty &	operator= (const CompositeProperty &rhs)
	Assignment operator. More...

virtual void	remove (Property *p)
	It removes the property from the composite. More...

void	setCompositeName (const std::string &cname)
	It sets the composite type name. More...

void	setDatasetName (const std::string &dsName)
	It sets the property name. More...

void	setId (unsigned int id)
	It sets the property identifier. More...

void	setName (const std::string &name)
	It sets the property name. More...

void	setParent (Property *p)
	It associate this property to the informed parent. More...

std::size_t	size () const
	It returns the number of properties of the CompositeProperty. More...

virtual	~CompositeProperty ()
	Virtual destructor. More...

Protected Member Functions
	CompositeProperty (const std::string &cname, const std::string &name, int t, unsigned int id, Property *parent)
	It creates a new Property. More...

Protected Attributes
std::string	m_cname
	The composite type name. More...

std::string	m_datasetName
	The property's dataset name. More...

unsigned int	m_id
	An identification number that can be used internally. More...

std::string	m_name
	The property name. More...

Property *	m_parent
	The parent property type: it must be a CompositeProperty. More...

std::vector< Property * >	m_properties
	The list of property types that make the CompositeProperty. More...

int	m_type
	The property data type. More...

Detailed Description

A base class for a compound property (non-atomic properties).

See also: Property, SimpleProperty, NumericProperty, StringProperty, ArrayProperty, DateTimeProperty

Definition at line 51 of file CompositeProperty.h.

Constructor & Destructor Documentation

◆ CompositeProperty() [1/3]

te::dt::CompositeProperty::CompositeProperty	(	const std::string &	cname,
		const std::string &	name,
		unsigned int	id = `0`,
		Property *	parent = `0`
	)

It creates a new CompositeProperty.

Parameters

cname	The composite type name.
name	The property name.
id	The property identifier.
parent	A reference to the parent Property of the new object if it has one.

Warning: The identifier value (id) may be used by data source implementations. So, don't rely on its value!

◆ CompositeProperty() [2/3]

te::dt::CompositeProperty::CompositeProperty ( const CompositeProperty & rhs )

Copy constructor.

Parameters

rhs	The right-hand-side copy used to copy from.

◆ ~CompositeProperty()

virtual te::dt::CompositeProperty::~CompositeProperty ( )

virtual

Virtual destructor.

◆ CompositeProperty() [3/3]

te::dt::CompositeProperty::CompositeProperty	(	const std::string &	cname,
		const std::string &	name,
		int	t,
		unsigned int	id,
		Property *	parent
	)

protected

It creates a new Property.

Parameters

cname	The composite type name.
name	The Property name.
t	The data type id.
id	The property identifier.
parent	A reference to the parent Property of the new object if it has one.

Member Function Documentation

◆ add() [1/3]

void te::dt::CompositeProperty::add ( const boost::ptr_vector< te::dt::Property > & ps )

◆ add() [2/3]

void te::dt::CompositeProperty::add ( const std::vector< Property * > & ps )

It adds a list of property types to the CompositeProperty.

Parameters

ps	The list of properties to be added.

Precondition: The properties must be valid.; The properties must not be associated to another property.

Note: The CompositeProperty takes the ownership of the properties.

◆ add() [3/3]

void te::dt::CompositeProperty::add ( Property * p )

It adds a new property to the CompositeProperty.

Parameters

p	The property to be inserted.

Precondition: The Property p must be valid.; The Property p must not be associated to another property.

Postcondition: The property p will be associated to CompositeProperty.; The CompositeProperty takes the ownership of the property.

◆ clear()

virtual void te::dt::CompositeProperty::clear ( )

virtual

It clears the CompositeProperty definition.

Reimplemented in te::da::DataSetType.

◆ clone()

virtual Property* te::dt::CompositeProperty::clone ( ) const

virtual

It returns a clone of the object.

The new property will NOT have associations to other elements.

Returns: A clone of the object.

Implements te::dt::Property.

Reimplemented in te::da::DataSetType.

◆ copy()

void te::dt::CompositeProperty::copy ( const std::vector< Property * > & ps )

It copies the properties from the vector.

Parameters

ps	The list of properties to be copied.

Note: The CompositeProperty will not take the ownership of the properties, it will clone each one. So, it is the caller responsability to release them.

◆ findFirstPropertyOfType()

Property * te::dt::CompositeProperty::findFirstPropertyOfType ( const int t ) const

inline

returns the first property of the given data type. Caller doesn't take ownership of the returned pointer.

Definition at line 292 of file CompositeProperty.h.

References te::dt::Property::getType(), m_properties, and size().

Referenced by hasPropertyOfType().

◆ getCompositeName()

const std::string& te::dt::CompositeProperty::getCompositeName ( ) const

inline

It returns the name of the composite type.

Returns: The name of the composite type.

Note: This name may be different from the property name (returned by getName method)!

Definition at line 96 of file CompositeProperty.h.

◆ getDatasetName()

const std::string& te::dt::Property::getDatasetName ( ) const

inlineinherited

It returns the name of the propery's dataset.

Returns: The the propery's dataset name.

Definition at line 144 of file Property.h.

◆ getId()

unsigned int te::dt::Property::getId ( ) const

inlineinherited

It returns the property identifier.

Returns: A number used to identify the property.

Warning: The identifier value may be used by data source implementations. So, don't rely on its value!

Definition at line 109 of file Property.h.

◆ getName()

const std::string& te::dt::Property::getName ( ) const

inlineinherited

It returns the property name.

Returns: The property name.

Note: For DataSetTypes the name can have namespace prefix or schema name prefix, it will depend on the data source implementation.

Definition at line 127 of file Property.h.

◆ getParent()

Property* te::dt::Property::getParent ( ) const

inlineinherited

It returns the parent of this property, or NULL, if it doesn't have one.

Returns: The parent of this property, or NULL, if it doesn't have one.

Definition at line 168 of file Property.h.

◆ getProperties() [1/2]

std::vector<Property*>& te::dt::CompositeProperty::getProperties ( )

inline

It returns the list of properties describing the CompositeProperty.

Returns: The list of Propertys describing the CompositeProperty.

Definition at line 174 of file CompositeProperty.h.

◆ getProperties() [2/2]

const std::vector<Property*>& te::dt::CompositeProperty::getProperties ( ) const

inline

It returns the list of properties describing the CompositeProperty.

Returns: The list of Propertys describing the CompositeProperty.

Definition at line 167 of file CompositeProperty.h.

◆ getProperty() [1/2]

Property* te::dt::CompositeProperty::getProperty ( const std::string & name ) const

It returns the property with the given name or NULL if none is found.

Parameters

name	The name of the property we are looking for.

Returns: A pointer to a property or NULL if none is found. Don't delete it, as it belongs to the CompositeProperty.

◆ getProperty() [2/2]

Property* te::dt::CompositeProperty::getProperty ( std::size_t i ) const

inline

It returns the i-th property.

Parameters

i	The property position in the property array.

Returns: A pointer to the i-th property. Don't delete it, as it belongs to the CompositeProperty.

Precondition: i must be in the valid range [0, size()).

Definition at line 185 of file CompositeProperty.h.

◆ getPropertyById()

Property* te::dt::CompositeProperty::getPropertyById ( unsigned int id ) const

It searches for a property with the given ID.

Parameters

id	The property ID.

Returns: A pointer to the first property with the given ID if found or NULL otherwise. Don't delete it, as it belongs to the CompositeProperty.

◆ getPropertyPosition() [1/2]

std::size_t te::dt::CompositeProperty::getPropertyPosition ( const Property * p ) const

It returns the property position .

Parameters

p	The property.

Returns: A property position in the property array.

◆ getPropertyPosition() [2/2]

std::size_t te::dt::CompositeProperty::getPropertyPosition ( const std::string & name ) const

It returns the property position based on its name.

Parameters

name	The property name.

Returns: A property position in the property array.

◆ getType()

int te::dt::Property::getType ( ) const

inlineinherited

It returns the property data type.

Returns: The property data type.

Definition at line 161 of file Property.h.

Referenced by findFirstPropertyOfType().

◆ has()

bool te::dt::CompositeProperty::has ( Property * p ) const

virtual

It checks if the Property "p" is associated to this property or any other parent.

Parameters

p	The Property we are checking.

Returns: True if the given Property "p" is associated to to this Property, otherwise, returns false.

Implements te::dt::Property.

◆ hasPropertyOfType()

bool te::dt::CompositeProperty::hasPropertyOfType ( const int t ) const

inline

Tells if there is a property of the given data type.

Definition at line 287 of file CompositeProperty.h.

References findFirstPropertyOfType().

Referenced by te::da::DataSetType::hasRaster().

◆ insert()

void te::dt::CompositeProperty::insert	(	std::size_t	position,
		Property *	p
	)

It inserts a new property to the CompositeProperty.

Parameters

position	The position where the property will be inserted
p	The property to be inserted.

Precondition: The Property p must be valid.; The Property p must not be associated to another property.

Postcondition: The property p will be associated to CompositeProperty.; The CompositeProperty takes the ownership of the property.

◆ operator=()

CompositeProperty& te::dt::CompositeProperty::operator= ( const CompositeProperty & rhs )

Assignment operator.

Parameters

rhs	The right-hand-side copy used to copy from.

Returns: A reference to this object.

◆ remove()

virtual void te::dt::CompositeProperty::remove ( Property * p )

virtual

It removes the property from the composite.

Parameters

p	The property to be removed from the composite.

Postcondition: The property pointer will be invalidated.

◆ setCompositeName()

void te::dt::CompositeProperty::setCompositeName ( const std::string & cname )

inline

It sets the composite type name.

Parameters

name	The composite type name.

Definition at line 103 of file CompositeProperty.h.

◆ setDatasetName()

void te::dt::Property::setDatasetName ( const std::string & dsName )

inlineinherited

It sets the property name.

Parameters

name	The new property name.

Warning: Take care when calling this method for a DataSetType associated to a DataSourceCatalog. Prefer using the rename method on the DataSourceCatalog API instead of using this method.

Definition at line 154 of file Property.h.

◆ setId()

void te::dt::Property::setId ( unsigned int id )

inlineinherited

It sets the property identifier.

Parameters

id	A number used to identify the property.

Warning: The identifier value may be used by data source implementations. So, don't rely on its value!

Definition at line 118 of file Property.h.

◆ setName()

void te::dt::Property::setName ( const std::string & name )

inlineinherited

It sets the property name.

Parameters

name	The new property name.

Warning: Take care when calling this method for a DataSetType associated to a DataSourceCatalog. Prefer using the rename method on the DataSourceCatalog API instead of using this method.

Definition at line 137 of file Property.h.

◆ setParent()

void te::dt::Property::setParent ( Property * p )

inlineinherited

It associate this property to the informed parent.

Parameters

p	Teh parent property.

Warning: Don't use this method without knowing the internal details of its use.

Definition at line 177 of file Property.h.

◆ size()

std::size_t te::dt::CompositeProperty::size ( ) const

inline

It returns the number of properties of the CompositeProperty.

Returns: The number of properties of the CompositeProperty.

Definition at line 160 of file CompositeProperty.h.

Referenced by findFirstPropertyOfType().

Member Data Documentation

◆ m_cname

std::string te::dt::CompositeProperty::m_cname

protected

The composite type name.

Definition at line 283 of file CompositeProperty.h.

◆ m_datasetName

std::string te::dt::Property::m_datasetName

protectedinherited

The property's dataset name.

Definition at line 208 of file Property.h.

◆ m_id

unsigned int te::dt::Property::m_id

protectedinherited

An identification number that can be used internally.

Definition at line 205 of file Property.h.

◆ m_name

std::string te::dt::Property::m_name

protectedinherited

The property name.

Definition at line 207 of file Property.h.

◆ m_parent

Property* te::dt::Property::m_parent

protectedinherited

The parent property type: it must be a CompositeProperty.

Definition at line 204 of file Property.h.

◆ m_properties

std::vector<Property*> te::dt::CompositeProperty::m_properties

protected

The list of property types that make the CompositeProperty.

Definition at line 284 of file CompositeProperty.h.

Referenced by findFirstPropertyOfType().

◆ m_type

int te::dt::Property::m_type

protectedinherited

The property data type.

Definition at line 206 of file Property.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/datatype/CompositeProperty.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CompositeProperty() [1/3]

◆ CompositeProperty() [2/3]

◆ ~CompositeProperty()

◆ CompositeProperty() [3/3]

Member Function Documentation

◆ add() [1/3]

◆ add() [2/3]

◆ add() [3/3]

◆ clear()

◆ clone()

◆ copy()

◆ findFirstPropertyOfType()

◆ getCompositeName()

◆ getDatasetName()

◆ getId()

◆ getName()

◆ getParent()

◆ getProperties() [1/2]

◆ getProperties() [2/2]

◆ getProperty() [1/2]

◆ getProperty() [2/2]

◆ getPropertyById()

◆ getPropertyPosition() [1/2]

◆ getPropertyPosition() [2/2]

◆ getType()

◆ has()

◆ hasPropertyOfType()

◆ insert()

◆ operator=()

◆ remove()

◆ setCompositeName()

◆ setDatasetName()

◆ setId()

◆ setName()

◆ setParent()

◆ size()

Member Data Documentation

◆ m_cname

◆ m_datasetName

◆ m_id

◆ m_name

◆ m_parent

◆ m_properties

◆ m_type
