A class that defines the interface of a qt bar progress viewer. More...

#include <ProgressViewerBar.h>

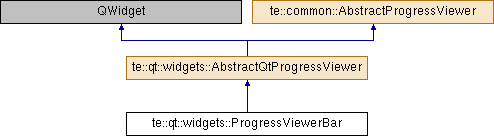

Inheritance diagram for te::qt::widgets::ProgressViewerBar:

Public Slots
virtual void	onResetProgress () override

virtual void	onSetProgressMessage (const std::string &message) override

virtual void	onSetProgressRange (int min, int max) override

virtual void	onSetProgressValue (int value) override

Signals
void	resetProgress ()

void	setProgressMessage (const std::string &message)

void	setProgressRange (int min, int max)

void	setProgressValue (int value)

Public Member Functions
void	addTask (te::common::TaskProgress *t, int id)
	Insert a new taks to progress viewer container. More...

void	cancelTask (int taskId)
	Cancel a task. More...

	ProgressViewerBar (QWidget *parent)
	Default constructor. More...

void	removeTask (int taskId)
	Removes a task from progress viewer container. More...

void	setTotalValues (int taskId)
	Set task total steps. More...

void	updateMessage (int taskId)
	Update the progress message. More...

void	updateValue (int taskId)
	Update the progress evaluation. More...

	~ProgressViewerBar ()
	Virtual destructor. More...

Protected Attributes
int	m_currentStep
	Attribute used to define the current steps of all task. More...

QGridLayout *	m_layout
	GUI Objects used to build the custom widget. More...

QProgressBar *	m_progressBar
	GUI Objects used to build the custom widget. More...

int	m_propStep
	Attribute used to define the proportional step (0-100). More...

bool	m_reset

std::map< int, te::common::TaskProgress * >	m_tasks
	Task container. More...

int	m_totalSteps
	Attribute used to define the total steps of all tasks. More...

int	m_viewerId

Detailed Description

A class that defines the interface of a qt bar progress viewer.

It can be use inside a status bar.

This viewer is made using QtProgressBar object. Feed back will be generated over a custom widget. Multiples tasks will be displayed using ONLY one progress.

The proportional value is calculated using TOTALSTEPS / CURRENTSTEPS.

TOTALSTEPS - Sum of all total steps of all tasks CURRENTSTEPS - Sum of all current steps of all tasks

This viwer does NOT have message information. A Qt Button objected has located at the right side of the bar. The button clicked can be accessed getting clicked() signal.

See also: AbstractProgressViewer, QtProgressBar

Note: In this viewer, tasks can NOT be deleted.

Definition at line 76 of file ProgressViewerBar.h.

Constructor & Destructor Documentation

◆ ProgressViewerBar()

te::qt::widgets::ProgressViewerBar::ProgressViewerBar ( QWidget * parent )

Default constructor.

◆ ~ProgressViewerBar()

te::qt::widgets::ProgressViewerBar::~ProgressViewerBar ( )

Virtual destructor.

Member Function Documentation

◆ addTask()

void te::qt::widgets::ProgressViewerBar::addTask	(	te::common::TaskProgress *	t,
		int	id
	)

virtual

Insert a new taks to progress viewer container.

Parameters

t	Task pointer
id	Task identifier

Implements te::qt::widgets::AbstractQtProgressViewer.

◆ cancelTask()

void te::qt::widgets::ProgressViewerBar::cancelTask ( int taskId )

virtual

Cancel a task.

Parameters

taskId Task identifier

Implements te::qt::widgets::AbstractQtProgressViewer.

◆ onResetProgress

virtual void te::qt::widgets::ProgressViewerBar::onResetProgress ( )

overridevirtualslot

◆ onSetProgressMessage

virtual void te::qt::widgets::ProgressViewerBar::onSetProgressMessage ( const std::string & message )

overridevirtualslot

◆ onSetProgressRange

virtual void te::qt::widgets::ProgressViewerBar::onSetProgressRange	(	int	min,
		int	max
	)

overridevirtualslot

◆ onSetProgressValue

virtual void te::qt::widgets::ProgressViewerBar::onSetProgressValue ( int value )

overridevirtualslot

◆ removeTask()

void te::qt::widgets::ProgressViewerBar::removeTask ( int taskId )

virtual

Removes a task from progress viewer container.

Parameters

taskId Task identifier

Implements te::qt::widgets::AbstractQtProgressViewer.

◆ resetProgress

void te::qt::widgets::AbstractQtProgressViewer::resetProgress ( )

signalinherited

◆ setProgressMessage

void te::qt::widgets::AbstractQtProgressViewer::setProgressMessage ( const std::string & message )

signalinherited

◆ setProgressRange

void te::qt::widgets::AbstractQtProgressViewer::setProgressRange	(	int	min,
		int	max
	)

signalinherited

◆ setProgressValue

void te::qt::widgets::AbstractQtProgressViewer::setProgressValue ( int value )

signalinherited

◆ setTotalValues()

void te::qt::widgets::ProgressViewerBar::setTotalValues ( int taskId )

virtual

Set task total steps.

Parameters

taskId Task identifier

Implements te::qt::widgets::AbstractQtProgressViewer.

◆ updateMessage()

void te::qt::widgets::ProgressViewerBar::updateMessage ( int taskId )

virtual

Update the progress message.

Parameters

taskId Task identifier

Implements te::qt::widgets::AbstractQtProgressViewer.

◆ updateValue()

void te::qt::widgets::ProgressViewerBar::updateValue ( int taskId )

virtual

Update the progress evaluation.

Parameters

taskId Task identifier

Implements te::qt::widgets::AbstractQtProgressViewer.

Member Data Documentation

◆ m_currentStep

int te::qt::widgets::ProgressViewerBar::m_currentStep

protected

Attribute used to define the current steps of all task.

Definition at line 144 of file ProgressViewerBar.h.

◆ m_layout

QGridLayout* te::qt::widgets::ProgressViewerBar::m_layout

protected

GUI Objects used to build the custom widget.

Definition at line 147 of file ProgressViewerBar.h.

◆ m_progressBar

QProgressBar* te::qt::widgets::ProgressViewerBar::m_progressBar

protected

GUI Objects used to build the custom widget.

Definition at line 148 of file ProgressViewerBar.h.

◆ m_propStep

int te::qt::widgets::ProgressViewerBar::m_propStep

protected

Attribute used to define the proportional step (0-100).

Definition at line 145 of file ProgressViewerBar.h.

◆ m_reset

bool te::qt::widgets::ProgressViewerBar::m_reset

protected

Definition at line 150 of file ProgressViewerBar.h.

◆ m_tasks

std::map<int, te::common::TaskProgress*> te::qt::widgets::ProgressViewerBar::m_tasks

protected

Task container.

Definition at line 146 of file ProgressViewerBar.h.

◆ m_totalSteps

int te::qt::widgets::ProgressViewerBar::m_totalSteps

protected

Attribute used to define the total steps of all tasks.

Definition at line 143 of file ProgressViewerBar.h.

◆ m_viewerId

int te::common::AbstractProgressViewer::m_viewerId

protectedinherited

Definition at line 105 of file AbstractProgressViewer.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/widgets/progress/ProgressViewerBar.h
