A factory to build widget objects. More...

#include <SimplePropertyWidgetFactory.h>

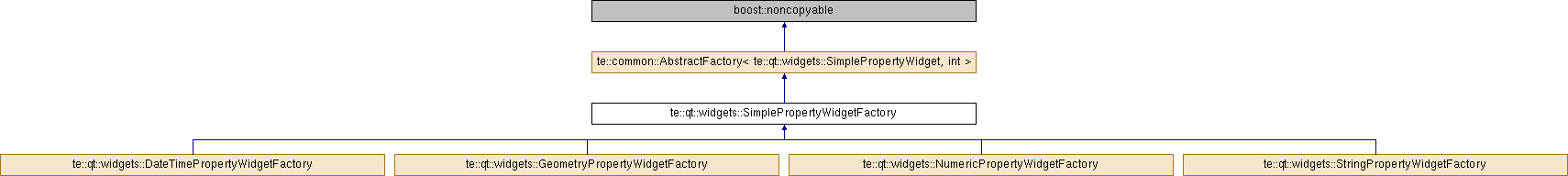

Inheritance diagram for te::qt::widgets::SimplePropertyWidgetFactory:

Public Types
typedef FactoryDictionary< AbstractFactory< te::qt::widgets::SimplePropertyWidget, int, std::less< int > >, int, std::less< int > >	dictionary_type

typedef AbstractFactory	factory_type

Public Member Functions
const int &	getKey () const
	It returns the factory key associated to the concreate factory. More...

virtual int	getType () const =0
	It returns the type of component widget that the factory knows how to create. More...

virtual	~SimplePropertyWidgetFactory ()
	Virtual destructor. More...

Static Public Member Functions
static const factory_type *	find (const int &factoryKey)

static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...

static te::qt::widgets::SimplePropertyWidget *	make (const int &factoryKey)
	It creates an object with the appropriated factory. More...

static te::qt::widgets::SimplePropertyWidget *	make (const int &type)

static te::qt::widgets::SimplePropertyWidget *	make (const int &type, QWidget *parent=0)

Protected Member Functions
virtual te::qt::widgets::SimplePropertyWidget *	build ()=0
	Concrete factories (derived from this one) must implement this method in order to create objects. More...

virtual te::qt::widgets::SimplePropertyWidget *	create (QWidget *Parent=0)=0

	SimplePropertyWidgetFactory (const int &factoryKey)
	It creates the factory. More...

Protected Attributes
int	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Detailed Description

A factory to build widget objects.

Definition at line 49 of file SimplePropertyWidgetFactory.h.

Member Typedef Documentation

◆ dictionary_type

typedef FactoryDictionary<AbstractFactory<te::qt::widgets::SimplePropertyWidget , int , std::less<int > >, int , std::less<int > > te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

◆ factory_type

typedef AbstractFactory te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

◆ ~SimplePropertyWidgetFactory()

virtual te::qt::widgets::SimplePropertyWidgetFactory::~SimplePropertyWidgetFactory ( )

virtual

Virtual destructor.

Note: It will automatically unregister the factory from the dictionary.

◆ SimplePropertyWidgetFactory()

te::qt::widgets::SimplePropertyWidgetFactory::SimplePropertyWidgetFactory ( const int & factoryKey )

protected

It creates the factory.

The key of a ComponentWidgetFactory is a string.

Parameters

factoryKey The key that identifies the factory.

Member Function Documentation

◆ build()

virtual te::qt::widgets::SimplePropertyWidget * te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::build ( )

protectedpure virtualinherited

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns: It returns an object created by the concrete factory.

Implemented in te::qt::widgets::StringPropertyWidgetFactory, te::qt::widgets::NumericPropertyWidgetFactory, te::qt::widgets::GeometryPropertyWidgetFactory, and te::qt::widgets::DateTimePropertyWidgetFactory.

◆ create()

virtual te::qt::widgets::SimplePropertyWidget* te::qt::widgets::SimplePropertyWidgetFactory::create ( QWidget * Parent = 0 )

protectedpure virtual

Implemented in te::qt::widgets::StringPropertyWidgetFactory, te::qt::widgets::NumericPropertyWidgetFactory, te::qt::widgets::GeometryPropertyWidgetFactory, and te::qt::widgets::DateTimePropertyWidgetFactory.

◆ find()

const AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::factory_type * te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::find ( const TFACTORYKEY & factoryKey )

inlinestaticinherited

Definition at line 108 of file AbstractFactory.h.

◆ getDictionary()

AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::dictionary_type & te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::getDictionary

inlinestaticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns: A reference to the internal dictionary.

Definition at line 106 of file AbstractFactory.h.

◆ getKey()

const int & te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::getKey

inlineinherited

It returns the factory key associated to the concreate factory.

Returns: The factory key associated to the concreate factory.

Definition at line 84 of file AbstractFactory.h.

◆ getType()

virtual int te::qt::widgets::SimplePropertyWidgetFactory::getType ( ) const

pure virtual

It returns the type of component widget that the factory knows how to create.

Returns: The type of component widget that the factory knows how to create.

Implemented in te::qt::widgets::StringPropertyWidgetFactory, te::qt::widgets::NumericPropertyWidgetFactory, te::qt::widgets::GeometryPropertyWidgetFactory, and te::qt::widgets::DateTimePropertyWidgetFactory.

◆ make() [1/3]

te::qt::widgets::SimplePropertyWidget * te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::make ( const TFACTORYKEY & factoryKey )

inlinestaticinherited

It creates an object with the appropriated factory.

Parameters

factoryKey A key that identifies the factory used to build the object.

Returns: It returns a new object created by the given factory.

Exceptions

Exception If the concrete factory is not specified or the object can not be built for any reason this methiod may throws an exception.

Note: The caller of this method will take the ownership of the returned object.

Definition at line 97 of file AbstractFactory.h.

◆ make() [2/3]

static te::qt::widgets::SimplePropertyWidget* te::qt::widgets::SimplePropertyWidgetFactory::make ( const int & type )

static

◆ make() [3/3]

static te::qt::widgets::SimplePropertyWidget* te::qt::widgets::SimplePropertyWidgetFactory::make	(	const int &	type,
		QWidget *	parent = `0`
	)

static

Member Data Documentation

◆ m_factoryKey

int te::common::AbstractFactory< te::qt::widgets::SimplePropertyWidget , int , std::less<int > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/widgets/property/SimplePropertyWidgetFactory.h
