te::qt::plugins::vp::AbstractAction Class Reference

This is an abstract class used to register actions into vp pluging. More...

#include <AbstractAction.h>

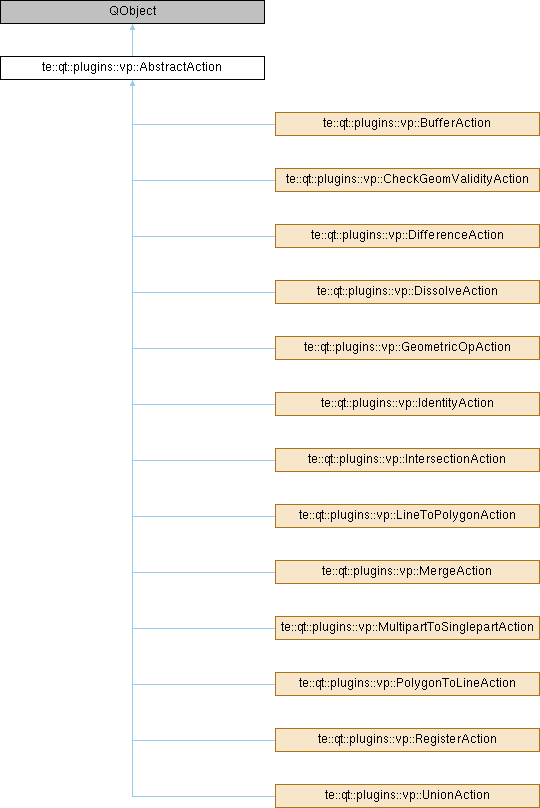

Inheritance diagram for te::qt::plugins::vp::AbstractAction:

Signals
void	triggered (te::qt::af::evt::Event *e)

Public Member Functions
	AbstractAction (QMenu *menu)
	Constructor. More...
	AbstractAction (QMenu *menu, const std::string &operationName)
	Constructor. More...
QAction *	getAction ()
virtual	~AbstractAction ()
	Destructor. More...

Static Public Member Functions
static te::qt::plugins::vp::AbstractAction *	createAction (QMenu *menu, const std::string &operationName)

Protected Slots
virtual void	onActionActivated (bool checked)
	Slot function used when a action was selected. More...

Protected Member Functions
void	addNewLayer (te::map::AbstractLayerPtr layer, bool confirmIndexCreation=true)
	Add a new layer into layer explorer widget. More...
void	configSettings ()
void	createAction (std::string name, std::string pixmap="")
	Create and set the actions parameters. More...
void	createActionByName (const std::string &operationName)
	Create and set the actions parameters. More...
void	createSpatialIndex (te::map::AbstractLayerPtr layer)
std::list< te::map::AbstractLayerPtr >	getLayers ()
	Get the list of layers from app. More...
bool	hasShapeFileSpatialIndex (const QString &path)
void	showDialog (const std::string &operationName)

Protected Attributes
QAction *	m_action
	Action used to call the process. More...
QMenu *	m_menu
	Parent Menu. More...
std::string	m_operationName
	The name of the operation to be used. More...

Detailed Description

This is an abstract class used to register actions into vp pluging.

Definition at line 62 of file AbstractAction.h.

Constructor & Destructor Documentation

AbstractAction() [1/2]

te::qt::plugins::vp::AbstractAction::AbstractAction

(

QMenu *

menu

)

Constructor.

Parameters

menu	The parent menu object.

AbstractAction() [2/2]

te::qt::plugins::vp::AbstractAction::AbstractAction	(	QMenu *	menu,
		const std::string &	operationName
	)

Constructor.

Parameters

menu	The parent menu object.

~AbstractAction()

virtual te::qt::plugins::vp::AbstractAction::~AbstractAction ( )

virtual

Destructor.

Member Function Documentation

addNewLayer()

void te::qt::plugins::vp::AbstractAction::addNewLayer ( te::map::AbstractLayerPtr  layer, bool  confirmIndexCreation = true  )

protected

Add a new layer into layer explorer widget.

Parameters

layer

The layer auto pointer

configSettings()

void te::qt::plugins::vp::AbstractAction::configSettings ( )

protected

createAction() [1/2]

static te::qt::plugins::vp::AbstractAction * te::qt::plugins::vp::AbstractAction::createAction ( QMenu *  menu, const std::string &  operationName  )

static

createAction() [2/2]

void te::qt::plugins::vp::AbstractAction::createAction ( std::string  name, std::string  pixmap = ""  )

protected

Create and set the actions parameters.

Parameters

name	The action name.
pixmap	The action pixmap name.

createActionByName()

void te::qt::plugins::vp::AbstractAction::createActionByName ( const std::string &  operationName )

protected

Create and set the actions parameters.

Parameters

name	The action name.

createSpatialIndex()

void te::qt::plugins::vp::AbstractAction::createSpatialIndex ( te::map::AbstractLayerPtr  layer )

protected

getAction()

QAction * te::qt::plugins::vp::AbstractAction::getAction ( )

inline

Definition at line 145 of file AbstractAction.h.

References m_action.

getLayers()

std::list< te::map::AbstractLayerPtr > te::qt::plugins::vp::AbstractAction::getLayers ( )

protected

Get the list of layers from app.

Returns

The list pf layer auto pointers

hasShapeFileSpatialIndex()

bool te::qt::plugins::vp::AbstractAction::hasShapeFileSpatialIndex ( const QString &  path )

protected

onActionActivated

virtual void te::qt::plugins::vp::AbstractAction::onActionActivated ( bool  checked )

protectedvirtualslot

Slot function used when a action was selected.

Parameters

checked

Flag used in case a toggle action.

showDialog()

void te::qt::plugins::vp::AbstractAction::showDialog ( const std::string &  operationName )

protected

triggered

void te::qt::plugins::vp::AbstractAction::triggered ( te::qt::af::evt::Event *  e )

signal

Member Data Documentation

m_action

QAction* te::qt::plugins::vp::AbstractAction::m_action

protected

Action used to call the process.

Definition at line 153 of file AbstractAction.h.

Referenced by getAction().

m_menu

QMenu* te::qt::plugins::vp::AbstractAction::m_menu

protected

Parent Menu.

Definition at line 152 of file AbstractAction.h.

m_operationName

std::string te::qt::plugins::vp::AbstractAction::m_operationName

protected

The name of the operation to be used.

Definition at line 154 of file AbstractAction.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/plugins/vp/AbstractAction.h
