This is the abstract factory for XML writers. More...

#include <AbstractWriterFactory.h>

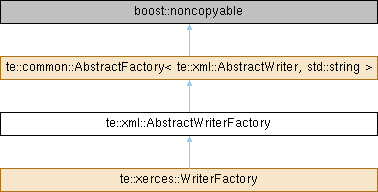

Inheritance diagram for te::xml::AbstractWriterFactory:

Public Types
typedef FactoryDictionary< AbstractFactory< te::xml::AbstractWriter, std::string, std::less< std::string > >, std::string, std::less< std::string > >	dictionary_type

typedef AbstractFactory	factory_type

Public Member Functions
const std::string &	getKey () const
	It returns the factory key associated to the concreate factory. More...

virtual	~AbstractWriterFactory ()
	Virtual destructor. More...

Static Public Member Functions
static const factory_type *	find (const std::string &factoryKey)

static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories. More...

static te::xml::AbstractWriter *	make ()
	It creates a new XML writer using the dafault implementation. More...

static te::xml::AbstractWriter *	make (const std::string &writerType)
	It creates a new XML writer. More...

static void	setDefaultWriter (const std::string &writerType)
	It sets the default driver used to create the XML writer objects. More...

Protected Member Functions
	AbstractWriterFactory (const std::string &factoryKey)
	It creates the factory. More...

virtual te::xml::AbstractWriter *	build ()=0
	Concrete factories (derived from this one) must implement this method in order to create objects. More...

Protected Attributes
std::string	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction. More...

Static Private Attributes
static std::string	sm_defaultWriterType
	The type of the writer to be created if no type is informed. More...

Detailed Description

This is the abstract factory for XML writers.

This is an abstract factory, so you will need to call the static method make as follow:

AbstractWriter* writer = AbstractWriterFactory::make("XERCES");

te::xml::AbstractWriterFactory::make

static te::xml::AbstractWriter * make()

It creates a new XML writer using the dafault implementation.

te::xml::AbstractWriter

This class models a XML writer object.

Definition: AbstractWriter.h:50

or

// for a default writer

AbstractWriter* writer = AbstractWriterFactory::make();

See also: Writer

Definition at line 64 of file AbstractWriterFactory.h.

Member Typedef Documentation

◆ dictionary_type

typedef FactoryDictionary<AbstractFactory<te::xml::AbstractWriter , std::string , std::less<std::string > >, std::string , std::less<std::string > > te::common::AbstractFactory< te::xml::AbstractWriter , std::string , std::less<std::string > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

◆ factory_type

typedef AbstractFactory te::common::AbstractFactory< te::xml::AbstractWriter , std::string , std::less<std::string > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

◆ ~AbstractWriterFactory()

virtual te::xml::AbstractWriterFactory::~AbstractWriterFactory ( )

inlinevirtual

Virtual destructor.

Note: It will automatically unregister the factory from the dictionary.

Definition at line 96 of file AbstractWriterFactory.h.

◆ AbstractWriterFactory()

te::xml::AbstractWriterFactory::AbstractWriterFactory ( const std::string & factoryKey )

protected

It creates the factory.

The key of a AbstractWriterFactory is a string.

Parameters

factoryKey The key that identifies the factory.

Member Function Documentation

◆ build()

virtual te::xml::AbstractWriter * te::common::AbstractFactory< te::xml::AbstractWriter , std::string , std::less<std::string > >::build ( )

protectedpure virtualinherited

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns: It returns an object created by the concrete factory.

Implemented in te::xerces::WriterFactory.

◆ find()

const AbstractFactory< te::xml::AbstractWriter , std::string , std::less<std::string > >::factory_type * te::common::AbstractFactory< te::xml::AbstractWriter , std::string , std::less<std::string > >::find ( const std::string & factoryKey )

inlinestaticinherited

Definition at line 108 of file AbstractFactory.h.

◆ getDictionary()

AbstractFactory< te::xml::AbstractWriter , std::string , std::less<std::string > >::dictionary_type & te::common::AbstractFactory< te::xml::AbstractWriter , std::string , std::less<std::string > >::getDictionary

inlinestaticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns: A reference to the internal dictionary.

Definition at line 106 of file AbstractFactory.h.

◆ getKey()

const std::string & te::common::AbstractFactory< te::xml::AbstractWriter , std::string , std::less<std::string > >::getKey

inlineinherited

It returns the factory key associated to the concreate factory.

Returns: The factory key associated to the concreate factory.

Definition at line 84 of file AbstractFactory.h.

◆ make() [1/2]

static te::xml::AbstractWriter * te::xml::AbstractWriterFactory::make ( )

static

It creates a new XML writer using the dafault implementation.

Returns: A new XML writer using the dafault implementation.

◆ make() [2/2]

static te::xml::AbstractWriter * te::xml::AbstractWriterFactory::make ( const std::string & writerType )

static

It creates a new XML writer.

Parameters

writerType The type of XML writer to be created.

Returns: A new XML writer.

◆ setDefaultWriter()

static void te::xml::AbstractWriterFactory::setDefaultWriter ( const std::string & writerType )

static

It sets the default driver used to create the XML writer objects.

Parameters

writerType The default driver name for creating XML writer objects.

Member Data Documentation

◆ m_factoryKey

std::string te::common::AbstractFactory< te::xml::AbstractWriter , std::string , std::less<std::string > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

◆ sm_defaultWriterType

std::string te::xml::AbstractWriterFactory::sm_defaultWriterType

staticprivate

The type of the writer to be created if no type is informed.

Definition at line 111 of file AbstractWriterFactory.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/xml/AbstractWriterFactory.h
