This class implements a concrete tool to geographic coordinate move a point on mouse click operation. More...

#include <PointMove.h>

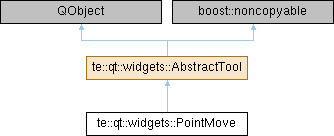

Inheritance diagram for te::qt::widgets::PointMove:

Public Member Functions
Initializer Methods
Methods related to instantiation and destruction.
	PointMove (MapDisplay display, std::map< unsigned int, QPointF > points, const QCursor &cursor, QObject *parent=0)
	It constructs a coordinate tracking tool associated with the given map display. More...

	~PointMove ()
	Destructor. More...

Initializer Methods
Methods related to instantiation and destruction.
virtual void	init ()

AbstractTool Methods
Methods related with tool behavior.
bool	m_moveStarted
	Flag that indicates if move operation was started. More...

QPointF	m_origin
	Origin point on mouse pressed. More...

QPointF	m_delta
	Difference between pressed point and destination point on mouse move. More...

std::map< unsigned int, QPointF > *	m_points

unsigned int	m_ptMoving

bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

te::gm::Envelope	buildEnvelope (const QPointF &pos)

void	draw ()

void	pointMoved (QPointF &coordinate_original, QPointF &coordinate_new)

void	pointMoveMoving (QPointF &coordinate)

AbstractTool Methods
Methods related with tool behavior.
MapDisplay *	m_display
	The map display associated with the tool. More...

QCursor	m_cursor
	The default tool cursor. More...

QCursor	m_curCursor
	The current mapdisplay cursor. More...

virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

Detailed Description

This class implements a concrete tool to geographic coordinate move a point on mouse click operation.

Definition at line 50 of file PointMove.h.

Constructor & Destructor Documentation

◆ PointMove()

te::qt::widgets::PointMove::PointMove	(	MapDisplay *	display,
		std::map< unsigned int, QPointF > *	points,
		const QCursor &	cursor,
		QObject *	parent = `0`
	)

It constructs a coordinate tracking tool associated with the given map display.

Parameters

display	The map display associated with the tool.
cursor	The default tool cursor.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

◆ ~PointMove()

te::qt::widgets::PointMove::~PointMove ( )

Destructor.

Member Function Documentation

◆ buildEnvelope()

te::gm::Envelope te::qt::widgets::PointMove::buildEnvelope ( const QPointF & pos )

private

◆ draw()

void te::qt::widgets::PointMove::draw ( )

private

◆ eventFilter()

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::edit::GeometriesUpdateTool, te::qt::widgets::Measure, te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

◆ init()

virtual void te::qt::widgets::AbstractTool::init ( )

virtualinherited

◆ keyPressEvent()

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::MoveGeometryTool, te::qt::widgets::CoordTracking, and te::qt::widgets::Measure.

◆ mouseDoubleClickEvent()

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::AggregateAreaTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::edit::CreatePolygonTool, te::edit::SplitPolygonTool, te::edit::SubtractAreaTool, te::edit::VertexTool, te::mnt::ProfileTools, te::qt::widgets::Measure, and te::qt::widgets::PolygonAcquire.

◆ mouseMoveEvent()

bool te::qt::widgets::PointMove::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mousePressEvent()

bool te::qt::widgets::PointMove::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mouseReleaseEvent()

bool te::qt::widgets::PointMove::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ pointMoved

void te::qt::widgets::PointMove::pointMoved	(	QPointF &	coordinate_original,
		QPointF &	coordinate_new
	)

signal

This signal is emitted when a coordinate was picked.

◆ pointMoveMoving

void te::qt::widgets::PointMove::pointMoveMoving ( QPointF & coordinate )

signal

This signal is emitted when a mouse moving.

◆ setCursor()

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

Member Data Documentation

◆ m_curCursor

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 175 of file AbstractTool.h.

◆ m_cursor

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 174 of file AbstractTool.h.

◆ m_delta

QPointF te::qt::widgets::PointMove::m_delta

protected

Difference between pressed point and destination point on mouse move.

Definition at line 107 of file PointMove.h.

◆ m_display

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 173 of file AbstractTool.h.

◆ m_moveStarted

bool te::qt::widgets::PointMove::m_moveStarted

protected

Flag that indicates if move operation was started.

Definition at line 105 of file PointMove.h.

◆ m_origin

QPointF te::qt::widgets::PointMove::m_origin

protected

Origin point on mouse pressed.

Definition at line 106 of file PointMove.h.

◆ m_points

std::map< unsigned int, QPointF >* te::qt::widgets::PointMove::m_points

protected

Definition at line 108 of file PointMove.h.

◆ m_ptMoving

unsigned int te::qt::widgets::PointMove::m_ptMoving

protected

Definition at line 109 of file PointMove.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/widgets/tools/PointMove.h
