te::se::CoverageStyle Class Reference

The CoverageStyle defines the styling that is to be applied to a subset of Coverage data. More...

#include <CoverageStyle.h>

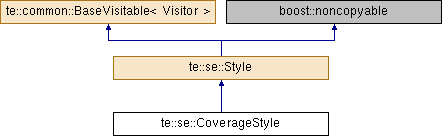

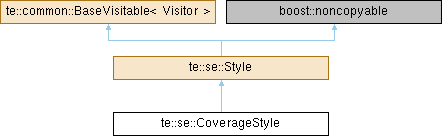

Inheritance diagram for te::se::CoverageStyle:

Public Types
typedef void	ReturnType
typedef Visitor	VisitorType

Public Member Functions
virtual ReturnType	accept (VisitorType &guest) const=0
	It call the visit method from the guest object. More...
Initializer Methods
Methods related to instantiation and destruction.
	CoverageStyle ()
	It initializes a new CoverageStyle. More...
	~CoverageStyle ()
	Destructor. More...

Accessor methods
Methods used to get or set properties.
std::string *	m_coverageName
	It identifies the specific coverage that the coverage style is for. (Optional) More...
static const std::string	sm_type
	A static data member used in the implementation of getType method. More...
void	setCoverageName (std::string *name)
const std::string *	getCoverageName () const
const std::string &	getType () const
	It returns the style type. More...
Style *	clone () const
	It creates a new copy of this object. More...

Accessor methods
Methods used to get or set properties.
void	setName (std::string *name)
const std::string *	getName () const
void	setDescription (Description *d)
const Description *	getDescription () const
void	push_back (const std::string &semanticTypeIdentifier)
void	push_back (Rule *rule)
void	push_back (te::xl::SimpleLink *onlineResource)
const std::string &	getSemanticTypeIdentifier (std::size_t i)
const std::vector< std::string > *	getSemanticTypeIdentifiers () const
const std::vector< Rule * > &	getRules () const
Rule *	getRule (std::size_t i) const
void	removeRule (std::size_t i)
void	removeRules ()
void	setRule (std::size_t i, Rule *rule)
const std::vector< te::xl::SimpleLink * > &	getOnlineResources () const
const te::xl::SimpleLink *	getOnlineResource (std::size_t i) const
void	setVersion (const std::string &v)
const std::string &	getVersion () const
std::string *	m_name
	It allows the style to be referenced. Names must be unique in the context in which they are defined. (Optional) More...
Description *	m_description
	It gives an informative description of the style. (Optional) More...
std::vector< std::string > *	m_semanticTypeIdentifiers
	The SemanticTypeIdentifier is experimental and is intended to be used to identify what the feature style is suitable to be used for using community-controlled name(s). (Optional) More...
std::vector< Rule * >	m_rules
	It allows conditional rendering. (Mandatory if m_onlineResource is empty, otherwise, it is optional) More...
std::vector< te::xl::SimpleLink * >	m_onlineResources
	It refers to an external document. (Mandatory if m_rules is empty, otherwise, it is optional) More...
std::string	m_version
	The version is an optional attribute on the FeatureTypeStyle that identifies the SE version number that the FeatureTypeStyle corresponds to. (Optional) More...

Detailed Description

The CoverageStyle defines the styling that is to be applied to a subset of Coverage data.

See also

Style, FeatureTypeStyle

Definition at line 45 of file CoverageStyle.h.

Member Typedef Documentation

ReturnType

typedef void te::common::BaseVisitable< Visitor , void >::ReturnType

inherited

Definition at line 58 of file BaseVisitable.h.

VisitorType

typedef Visitor te::common::BaseVisitable< Visitor , void >::VisitorType

inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

CoverageStyle()

te::se::CoverageStyle::CoverageStyle

(

)

It initializes a new CoverageStyle.

~CoverageStyle()

te::se::CoverageStyle::~CoverageStyle

(

)

Destructor.

Member Function Documentation

accept()

virtual ReturnType te::common::BaseVisitable< Visitor , void >::accept ( VisitorType &  guest ) const

pure virtualinherited

It call the visit method from the guest object.

Parameters

guest

The guest or visitor.

Returns

Any valid value define by the template type R.

clone()

Style * te::se::CoverageStyle::clone ( ) const

virtual

It creates a new copy of this object.

Implements te::se::Style.

getCoverageName()

const std::string * te::se::CoverageStyle::getCoverageName

(

)

const

getDescription()

const Description * te::se::Style::getDescription ( ) const

inherited

getName()

const std::string * te::se::Style::getName ( ) const

inherited

getOnlineResource()

const te::xl::SimpleLink * te::se::Style::getOnlineResource ( std::size_t  i ) const

inherited

getOnlineResources()

const std::vector< te::xl::SimpleLink * > & te::se::Style::getOnlineResources ( ) const

inherited

getRule()

Rule * te::se::Style::getRule ( std::size_t  i ) const

inherited

getRules()

const std::vector< Rule * > & te::se::Style::getRules ( ) const

inherited

getSemanticTypeIdentifier()

const std::string & te::se::Style::getSemanticTypeIdentifier ( std::size_t  i )

inherited

getSemanticTypeIdentifiers()

const std::vector< std::string > * te::se::Style::getSemanticTypeIdentifiers ( ) const

inherited

getType()

const std::string & te::se::CoverageStyle::getType ( ) const

virtual

It returns the style type.

Returns

The style type.

Implements te::se::Style.

getVersion()

const std::string & te::se::Style::getVersion ( ) const

inherited

push_back() [1/3]

void te::se::Style::push_back ( const std::string &  semanticTypeIdentifier )

inherited

push_back() [2/3]

void te::se::Style::push_back ( Rule *  rule )

inherited

push_back() [3/3]

void te::se::Style::push_back ( te::xl::SimpleLink *  onlineResource )

inherited

removeRule()

void te::se::Style::removeRule ( std::size_t  i )

inherited

removeRules()

void te::se::Style::removeRules ( )

inherited

setCoverageName()

void te::se::CoverageStyle::setCoverageName

(

std::string *

name

)

setDescription()

void te::se::Style::setDescription ( Description *  d )

inherited

setName()

void te::se::Style::setName ( std::string *  name )

inherited

setRule()

void te::se::Style::setRule ( std::size_t  i, Rule *  rule  )

inherited

setVersion()

void te::se::Style::setVersion ( const std::string &  v )

inherited

Member Data Documentation

m_coverageName

std::string* te::se::CoverageStyle::m_coverageName

private

It identifies the specific coverage that the coverage style is for. (Optional)

Definition at line 82 of file CoverageStyle.h.

m_description

Description* te::se::Style::m_description

protectedinherited

It gives an informative description of the style. (Optional)

Definition at line 140 of file Style.h.

m_name

std::string* te::se::Style::m_name

protectedinherited

It allows the style to be referenced. Names must be unique in the context in which they are defined. (Optional)

Definition at line 139 of file Style.h.

m_onlineResources

std::vector<te::xl::SimpleLink*> te::se::Style::m_onlineResources

protectedinherited

It refers to an external document. (Mandatory if m_rules is empty, otherwise, it is optional)

Definition at line 143 of file Style.h.

m_rules

std::vector<Rule*> te::se::Style::m_rules

protectedinherited

It allows conditional rendering. (Mandatory if m_onlineResource is empty, otherwise, it is optional)

Definition at line 142 of file Style.h.

m_semanticTypeIdentifiers

std::vector<std::string>* te::se::Style::m_semanticTypeIdentifiers

protectedinherited

The SemanticTypeIdentifier is experimental and is intended to be used to identify what the feature style is suitable to be used for using community-controlled name(s). (Optional)

Definition at line 141 of file Style.h.

m_version

std::string te::se::Style::m_version

protectedinherited

The version is an optional attribute on the FeatureTypeStyle that identifies the SE version number that the FeatureTypeStyle corresponds to. (Optional)

Definition at line 144 of file Style.h.

sm_type

const std::string te::se::CoverageStyle::sm_type

staticprivate

A static data member used in the implementation of getType method.

Definition at line 83 of file CoverageStyle.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/se/CoverageStyle.h
