A LineSymbolizer is used to style a stroke along a linear geometry type, such as a string of line segments. More...

#include <LineSymbolizer.h>

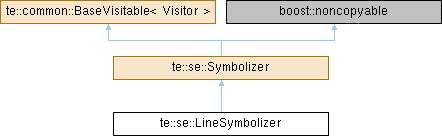

Inheritance diagram for te::se::LineSymbolizer:

Public Types
typedef void	ReturnType

typedef Visitor	VisitorType

Public Member Functions
virtual ReturnType	accept (VisitorType &guest) const=0
	It call the visit method from the guest object. More...

Initializer Methods
Methods related to instantiation and destruction.
	LineSymbolizer ()
	It initializes a new LineSymbolizer. More...

	LineSymbolizer (const LineSymbolizer &rhs)
	Copy constructor. More...

	~LineSymbolizer ()
	Destructor. More...

Accessor methods
Methods used to get or set properties.
te::fe::PropertyName *	m_geometry
	A Geometry gives reference to a (the) geometry property of a feature to be used for rendering. (Optional) More...

Stroke *	m_stroke
	A Stroke specifies the appearance of a linear geometry. (Optional) More...

ParameterValue *	m_perpendicularOffset
	A PerpendicularOffset gives the perpendicular distance away from a line to draw a label. (Optional) More...

static const std::string	sm_type
	A static data member used in the implementation of getType method. More...

void	setGeometry (te::fe::PropertyName *geometry)
	The Geometry element of a LineSymbolizer defines the linear geometry to be used for styling. The Geometry element is optional and if it is absent then the all geometry properties of the feature type that is used in the containing FeatureType are used. Most frequently, though, feature types will have only a single geometry property. See OGC te::fe::PropertyName class for more information on attribute names. More...

const te::fe::PropertyName *	getGeometry () const

void	setStroke (Stroke *stroke)
	A Stroke specifies the appearance of a linear geometry. The Stroke element is optional inside of LineSymbolizer (and other Symbolizers), and its absence means that no stroke is to be rendered. More...

const Stroke *	getStroke () const

void	setPerpendicularOffset (ParameterValue *perpendicularOffset)
	PerpendicularOffset allows to draw lines in parallel to the original geometry. For complex line strings these parallel lines have to be constructed so that the distance between original geometry and drawn line stays equal. This construction can result in drawn lines that are actually smaller or longer than the original geometry. The distance is in uoms and is positive to the left-hand side of the line string. Negative numbers mean right. The default offset is 0. More...

const ParameterValue *	getPerpendicularOffset () const

const std::string &	getType () const
	It returns the symbolizer type. More...

Symbolizer *	clone () const
	It creates a new copy of this object. More...

Accessor methods
Methods used to get or set properties.
std::string	m_name
	It allows the symbolizer to be referenced externally, which is needed in some methods of SE usage. (Optional) More...

Description *	m_description
	It gives the familiar short title for display lists and longer description for the symbolizer. (Optional) More...

te::xl::SimpleLink *	m_baseSymbolizer
	A BaseSymbolizer (an OnlineResource) defines the default properties of a Symbolizer to be those of an external Symbolizer, which will frequently be inside of an OGC Symbolizer repository. The Symbolizer properties given in-line override the base-Symbolizer properties. (Optional) More...

std::string	m_version
	The version is an optional attribute on the FeatureType Style element that identifies the SE version number that the FeatureTypeStyle corresponds to. For now, the only allowed value is 1.1.0. (Mandatory) More...

const te::common::BaseUnitOfMeasure *	m_uom
	Unit of measurement. If no uom is set inside of Symbolizer, all units are measured in pixel. (Mandatory) More...

void	setName (const std::string &name)

const std::string &	getName () const

void	setDescription (Description *d)

const Description *	getDescription () const

void	setBaseSymbolizer (te::xl::SimpleLink *baseSymbolizer)

const te::xl::SimpleLink *	getBaseSymbolizer () const

void	setVersion (const std::string &version)

const std::string &	getVersion () const

void	setUom (const te::common::BaseUnitOfMeasure *uom)
	It sets the unit-of-measure. More...

const te::common::BaseUnitOfMeasure *	getUom () const

Detailed Description

A LineSymbolizer is used to style a stroke along a linear geometry type, such as a string of line segments.

See also: Symbolizer, Stroke, ParameterValue, te::fe::PropertyName, ImageOutline

Definition at line 51 of file LineSymbolizer.h.

Member Typedef Documentation

◆ ReturnType

typedef void te::common::BaseVisitable< Visitor , void >::ReturnType

inherited

Definition at line 58 of file BaseVisitable.h.

◆ VisitorType

typedef Visitor te::common::BaseVisitable< Visitor , void >::VisitorType

inherited

Definition at line 57 of file BaseVisitable.h.

Constructor & Destructor Documentation

◆ LineSymbolizer() [1/2]

te::se::LineSymbolizer::LineSymbolizer ( )

It initializes a new LineSymbolizer.

◆ LineSymbolizer() [2/2]

te::se::LineSymbolizer::LineSymbolizer ( const LineSymbolizer & rhs )

Copy constructor.

Parameters

rhs	The other line symbolizer.

◆ ~LineSymbolizer()

te::se::LineSymbolizer::~LineSymbolizer ( )

Destructor.

Member Function Documentation

◆ accept()

virtual ReturnType te::common::BaseVisitable< Visitor , void >::accept ( VisitorType & guest ) const

pure virtualinherited

It call the visit method from the guest object.

Parameters

guest The guest or visitor.

Returns: Any valid value define by the template type R.

◆ clone()

Symbolizer * te::se::LineSymbolizer::clone ( ) const

virtual

It creates a new copy of this object.

Implements te::se::Symbolizer.

◆ getBaseSymbolizer()

const te::xl::SimpleLink * te::se::Symbolizer::getBaseSymbolizer ( ) const

inherited

◆ getDescription()

const Description * te::se::Symbolizer::getDescription ( ) const

inherited

◆ getGeometry()

const te::fe::PropertyName * te::se::LineSymbolizer::getGeometry ( ) const

◆ getName()

const std::string & te::se::Symbolizer::getName ( ) const

inherited

◆ getPerpendicularOffset()

const ParameterValue * te::se::LineSymbolizer::getPerpendicularOffset ( ) const

◆ getStroke()

const Stroke * te::se::LineSymbolizer::getStroke ( ) const

◆ getType()

const std::string & te::se::LineSymbolizer::getType ( ) const

virtual

It returns the symbolizer type.

Returns: The symbolizer type.

Implements te::se::Symbolizer.

◆ getUom()

const te::common::BaseUnitOfMeasure * te::se::Symbolizer::getUom ( ) const

inherited

◆ getVersion()

const std::string & te::se::Symbolizer::getVersion ( ) const

inherited

◆ setBaseSymbolizer()

void te::se::Symbolizer::setBaseSymbolizer ( te::xl::SimpleLink * baseSymbolizer )

inherited

◆ setDescription()

void te::se::Symbolizer::setDescription ( Description * d )

inherited

◆ setGeometry()

void te::se::LineSymbolizer::setGeometry ( te::fe::PropertyName * geometry )

The Geometry element of a LineSymbolizer defines the linear geometry to be used for styling. The Geometry element is optional and if it is absent then the all geometry properties of the feature type that is used in the containing FeatureType are used. Most frequently, though, feature types will have only a single geometry property. See OGC te::fe::PropertyName class for more information on attribute names.

Note: Geometry types other than inherently linear types can also be used. If a point geometry is used, it should be interpreted as a line of "epsilon" (arbitrarily small) length with a horizontal orientation centered on the point, and should be rendered with two end caps. If a polygon is used (or other "area" type), then its closed outline is used as the line string (with no end caps). If a raster geometry is used, its coverage-area outline is used for the line, rendered with no end caps.

◆ setName()

void te::se::Symbolizer::setName ( const std::string & name )

inherited

◆ setPerpendicularOffset()

void te::se::LineSymbolizer::setPerpendicularOffset ( ParameterValue * perpendicularOffset )

PerpendicularOffset allows to draw lines in parallel to the original geometry. For complex line strings these parallel lines have to be constructed so that the distance between original geometry and drawn line stays equal. This construction can result in drawn lines that are actually smaller or longer than the original geometry. The distance is in uoms and is positive to the left-hand side of the line string. Negative numbers mean right. The default offset is 0.

◆ setStroke()

void te::se::LineSymbolizer::setStroke ( Stroke * stroke )

A Stroke specifies the appearance of a linear geometry. The Stroke element is optional inside of LineSymbolizer (and other Symbolizers), and its absence means that no stroke is to be rendered.

◆ setUom()

void te::se::Symbolizer::setUom ( const te::common::BaseUnitOfMeasure * uom )

inherited

It sets the unit-of-measure.

All Symbolizers include an optional gml:uom-attribute as used by GML (this is set inside the abstract SymbolizerType and therefore inherited by all Symbolizers). This applies to all elements included inside a Symbolizer such as stroke-width, size, font-size, Gap, InitialGap, Displacement and PerpendicularOffset. If no uom is set inside of Symbolizer, all units are measured in pixel, the behaviour used by SLD 1.0.0. The following uom definitions are recommended to be used:

◆ setVersion()

void te::se::Symbolizer::setVersion ( const std::string & version )

inherited

Member Data Documentation

◆ m_baseSymbolizer

te::xl::SimpleLink* te::se::Symbolizer::m_baseSymbolizer

privateinherited

A BaseSymbolizer (an OnlineResource) defines the default properties of a Symbolizer to be those of an external Symbolizer, which will frequently be inside of an OGC Symbolizer repository. The Symbolizer properties given in-line override the base-Symbolizer properties. (Optional)

Definition at line 164 of file Symbolizer.h.

◆ m_description

Description* te::se::Symbolizer::m_description

privateinherited

It gives the familiar short title for display lists and longer description for the symbolizer. (Optional)

Definition at line 163 of file Symbolizer.h.

◆ m_geometry

te::fe::PropertyName* te::se::LineSymbolizer::m_geometry

private

A Geometry gives reference to a (the) geometry property of a feature to be used for rendering. (Optional)

Definition at line 144 of file LineSymbolizer.h.

◆ m_name

std::string te::se::Symbolizer::m_name

privateinherited

It allows the symbolizer to be referenced externally, which is needed in some methods of SE usage. (Optional)

Definition at line 162 of file Symbolizer.h.

◆ m_perpendicularOffset

ParameterValue* te::se::LineSymbolizer::m_perpendicularOffset

private

A PerpendicularOffset gives the perpendicular distance away from a line to draw a label. (Optional)

Definition at line 146 of file LineSymbolizer.h.

◆ m_stroke

Stroke* te::se::LineSymbolizer::m_stroke

private

A Stroke specifies the appearance of a linear geometry. (Optional)

Definition at line 145 of file LineSymbolizer.h.

◆ m_uom

const te::common::BaseUnitOfMeasure* te::se::Symbolizer::m_uom

privateinherited

Unit of measurement. If no uom is set inside of Symbolizer, all units are measured in pixel. (Mandatory)

Definition at line 166 of file Symbolizer.h.

◆ m_version

std::string te::se::Symbolizer::m_version

privateinherited

The version is an optional attribute on the FeatureType Style element that identifies the SE version number that the FeatureTypeStyle corresponds to. For now, the only allowed value is 1.1.0. (Mandatory)

Definition at line 165 of file Symbolizer.h.

◆ sm_type

const std::string te::se::LineSymbolizer::sm_type

staticprivate

A static data member used in the implementation of getType method.

Definition at line 148 of file LineSymbolizer.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/se/LineSymbolizer.h
