te::qt::widgets::TextSymbolizerProperty Class Reference

A widget used to define the text symbolizer properties, such as: More...

#include <TextSymbolizerProperty.h>

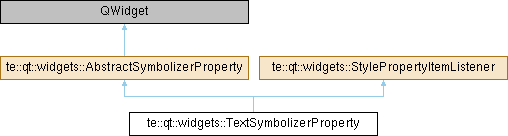

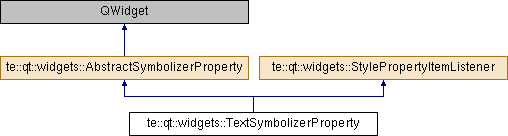

Inheritance diagram for te::qt::widgets::TextSymbolizerProperty:

Signals
Initializer Methods
Methods related to instantiation and destruction.
void	symbolizerChanged ()

Initializer Methods
Methods related to instantiation and destruction.
GroupPropertyItemHandler *	m_groupHandler
te::qt::widgets::TextPropertyItem *	m_text
te::qt::widgets::LinePlacementPropertyItem *	m_lp
te::qt::widgets::PointPlacementPropertyItem *	m_pp
te::qt::widgets::HaloPropertyItem *	m_halo
	TextSymbolizerProperty (QWidget *parent)
	Constructor. More...
	~TextSymbolizerProperty ()
	Destructor. More...
virtual void	setSymbolizer (const te::se::Symbolizer *symb) override
	Sets a text symbolizer element to this widget. More...
virtual te::se::Symbolizer *	getSymbolizer () const override
	Gets the configured polygon symbolizer element. More...
void	setLabels (const std::vector< std::string > &names)
	Used to set all properties names to use as label. More...
virtual void	handleValueChanged (QtProperty *qProperty, const QVariant &qVariant) override
	< This function will be called every time a value has changed More...

Detailed Description

A widget used to define the text symbolizer properties, such as:

• basic fill
• font
• halo

Definition at line 71 of file TextSymbolizerProperty.h.

Constructor & Destructor Documentation

TextSymbolizerProperty()

te::qt::widgets::TextSymbolizerProperty::TextSymbolizerProperty

(

QWidget *

parent

)

Constructor.

~TextSymbolizerProperty()

te::qt::widgets::TextSymbolizerProperty::~TextSymbolizerProperty

(

)

Destructor.

Member Function Documentation

getSymbolizer()

virtual te::se::Symbolizer * te::qt::widgets::TextSymbolizerProperty::getSymbolizer ( ) const

overridevirtual

Gets the configured polygon symbolizer element.

Returns

The configured polygon symbolizer element.

Note

The caller will take the ownership of the returned symbolizer.

Implements te::qt::widgets::AbstractSymbolizerProperty.

handleValueChanged()

virtual void te::qt::widgets::TextSymbolizerProperty::handleValueChanged ( QtProperty *  qProperty, const QVariant &  qVariant  )

overridevirtual

< This function will be called every time a value has changed

Implements te::qt::widgets::StylePropertyItemListener.

setLabels()

void te::qt::widgets::TextSymbolizerProperty::setLabels

(

const std::vector< std::string > &

names

)

Used to set all properties names to use as label.

setSymbolizer()

virtual void te::qt::widgets::TextSymbolizerProperty::setSymbolizer ( const te::se::Symbolizer *  symb )

overridevirtual

Sets a text symbolizer element to this widget.

Parameters

symb	A valid text symbolizer element.

Note

The widget will NOT take the ownership of the given symbolizer.

The widget form will be update based on given symbolizer parameters.

Implements te::qt::widgets::AbstractSymbolizerProperty.

symbolizerChanged

void te::qt::widgets::AbstractSymbolizerProperty::symbolizerChanged ( )

signalinherited

This signal is emitted when the internal polygon symbolizer element is changed.

Member Data Documentation

m_groupHandler

GroupPropertyItemHandler* te::qt::widgets::TextSymbolizerProperty::m_groupHandler

protected

Definition at line 118 of file TextSymbolizerProperty.h.

m_halo

te::qt::widgets::HaloPropertyItem* te::qt::widgets::TextSymbolizerProperty::m_halo

protected

Definition at line 122 of file TextSymbolizerProperty.h.

m_lp

te::qt::widgets::LinePlacementPropertyItem* te::qt::widgets::TextSymbolizerProperty::m_lp

protected

Definition at line 120 of file TextSymbolizerProperty.h.

m_pp

te::qt::widgets::PointPlacementPropertyItem* te::qt::widgets::TextSymbolizerProperty::m_pp

protected

Definition at line 121 of file TextSymbolizerProperty.h.

m_text

te::qt::widgets::TextPropertyItem* te::qt::widgets::TextSymbolizerProperty::m_text

protected

Definition at line 119 of file TextSymbolizerProperty.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/widgets/se/TextSymbolizerProperty.h
