This class implements an abstract iterator to "navigate" over a single band. More...

#include <BandIterator.h>

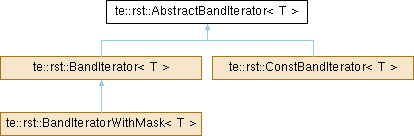

Inheritance diagram for te::rst::AbstractBandIterator< T >:

Public Member Functions
	AbstractBandIterator ()
	Constructor. More...

	AbstractBandIterator (const AbstractBandIterator &rhs)
	Copy constructor. More...

	AbstractBandIterator (const te::rst::Band *b)
	Constructor. More...

unsigned int	getColumn () const
	Returns the current column in iterator. More...

unsigned int	getRow () const
	Returns the current row in iterator. More...

bool	operator!= (const AbstractBandIterator &rhs) const
	Difference operator. More...

virtual const T	operator* () const =0
	Returns the value in current position (column, row) from iterator. More...

virtual void	operator++ ()
	Advances to the next position. More...

void	operator-- ()
	Returns to the previous position. More...

AbstractBandIterator &	operator= (const AbstractBandIterator &rhs)
	Assignment operator. More...

virtual void	replaceBlock ()=0
	Replaces the current bufferized block values. More...

virtual	~AbstractBandIterator ()
	Destructor. More...

Protected Member Functions
void	reset ()
	Reset this instance to a initial state. More...

Protected Attributes
T *	m_blk
	Internal block. More...

int	m_blkh
	The internal block height. More...

int	m_blksize
	The block size of the band. More...

int	m_blkw
	The internal block width. More...

int	m_blkx
	The position in X of the current block. More...

int	m_blky
	The position in Y of the current block. More...

te::rst::GetBufferValueFPtr	m_getBuff
	A pointer to a function that helps to extract a double or complex value from a specific buffer data type (char, int16, int32, float, ...). More...

te::rst::GetBufferValueFPtr	m_getBuffI
	A pointer to a function that helps to extract the imaginary part value from a specific buffer data type (cint16, cint32, cfloat, cdouble). More...

int	m_i
	The actual position inside the block. More...

int	m_lastblksize
	The number of pixels inside the last block. More...

int	m_nblocksx
	The number of blocks in X direction. More...

int	m_nblocksy
	The number of blocks in Y direction. More...

int	m_npxlsblk
	The maximum number of pixels inside the block. More...

te::rst::SetBufferValueFPtr	m_setBuff
	A pointer to a function that helps to insert a double or complex value into a specific buffer data type (char, int16, int32, float, ...). More...

te::rst::SetBufferValueFPtr	m_setBuffI
	A pointer to a function that helps to insert the imaginary part value into a specific buffer data type (cint16, cint32, cfloat, cdouble). More...

Detailed Description

template<class T>
class te::rst::AbstractBandIterator< T >

This class implements an abstract iterator to "navigate" over a single band.

We provide an efficient method to obtain all values in a raster, without regard to their locations. The implementation navigates through the blocks of the image.

See also: te::rst::Band

Definition at line 58 of file BandIterator.h.

Constructor & Destructor Documentation

◆ AbstractBandIterator() [1/3]

template<class T >

te::rst::AbstractBandIterator< T >::AbstractBandIterator

Constructor.

Definition at line 329 of file BandIterator.h.

◆ AbstractBandIterator() [2/3]

template<class T >

te::rst::AbstractBandIterator< T >::AbstractBandIterator ( const te::rst::Band * b )

Constructor.

Parameters

b	The band to iterate.

Definition at line 334 of file BandIterator.h.

References te::rst::Band::getBlockSize(), te::rst::Raster::getNumberOfColumns(), te::rst::Raster::getNumberOfRows(), te::rst::Band::getProperty(), te::rst::Band::getRaster(), te::rst::BandProperty::getType(), te::rst::BandProperty::m_blkh, te::rst::BandProperty::m_blkw, te::rst::BandProperty::m_nblocksx, te::rst::BandProperty::m_nblocksy, and te::rst::SetBlockFunctions().

◆ AbstractBandIterator() [3/3]

template<class T >

te::rst::AbstractBandIterator< T >::AbstractBandIterator ( const AbstractBandIterator< T > & rhs )

Copy constructor.

Parameters

rhs	The right-hand-side copy used to copy from.

Definition at line 363 of file BandIterator.h.

◆ ~AbstractBandIterator()

template<class T >

te::rst::AbstractBandIterator< T >::~AbstractBandIterator

virtual

Destructor.

Definition at line 370 of file BandIterator.h.

Member Function Documentation

◆ getColumn()

template<class T >

unsigned int te::rst::AbstractBandIterator< T >::getColumn

Returns the current column in iterator.

Definition at line 383 of file BandIterator.h.

◆ getRow()

template<class T >

unsigned int te::rst::AbstractBandIterator< T >::getRow

Returns the current row in iterator.

Definition at line 378 of file BandIterator.h.

◆ operator!=()

template<class T >

bool te::rst::AbstractBandIterator< T >::operator!= ( const AbstractBandIterator< T > & rhs ) const

Difference operator.

Parameters

rhs	The right-hand side to compare.

Returns: Returns true if the iterators are at different positions, or false otherwise.

Definition at line 483 of file BandIterator.h.

References te::rst::AbstractBandIterator< T >::m_blky.

◆ operator*()

template<class T >

virtual const T te::rst::AbstractBandIterator< T >::operator* ( ) const

pure virtual

Returns the value in current position (column, row) from iterator.

Implemented in te::rst::BandIterator< T >, and te::rst::ConstBandIterator< T >.

◆ operator++()

template<class T >

void te::rst::AbstractBandIterator< T >::operator++

virtual

Advances to the next position.

Reimplemented in te::rst::BandIteratorWithMask< T >.

Definition at line 388 of file BandIterator.h.

Referenced by te::rst::BandIteratorWithMask< T >::operator++().

◆ operator--()

template<class T >

void te::rst::AbstractBandIterator< T >::operator--

Returns to the previous position.

Definition at line 417 of file BandIterator.h.

Referenced by te::rst::BandIteratorWithMask< T >::operator--().

◆ operator=()

template<class T >

te::rst::AbstractBandIterator< T > & te::rst::AbstractBandIterator< T >::operator= ( const AbstractBandIterator< T > & rhs )

Assignment operator.

Parameters

rhs	The right-hand-side copy used to copy from.

Returns: A reference to this object.

Definition at line 445 of file BandIterator.h.

Referenced by te::rst::BandIterator< T >::operator=(), and te::rst::ConstBandIterator< T >::operator=().

◆ replaceBlock()

template<class T >

virtual void te::rst::AbstractBandIterator< T >::replaceBlock ( )

pure virtual

Replaces the current bufferized block values.

Implemented in te::rst::BandIterator< T >, and te::rst::ConstBandIterator< T >.

◆ reset()

template<class T >

void te::rst::AbstractBandIterator< T >::reset

protected

Reset this instance to a initial state.

Definition at line 489 of file BandIterator.h.

Member Data Documentation

◆ m_blk

template<class T >

T* te::rst::AbstractBandIterator< T >::m_blk

protected

Internal block.

Definition at line 130 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_blkh

template<class T >

int te::rst::AbstractBandIterator< T >::m_blkh

protected

The internal block height.

Definition at line 121 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_blksize

template<class T >

int te::rst::AbstractBandIterator< T >::m_blksize

protected

The block size of the band.

Definition at line 129 of file BandIterator.h.

Referenced by te::rst::ConstBandIterator< T >::ConstBandIterator(), and te::rst::AbstractBandIterator< T >::operator=().

◆ m_blkw

template<class T >

int te::rst::AbstractBandIterator< T >::m_blkw

protected

The internal block width.

Definition at line 120 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_blkx

template<class T >

int te::rst::AbstractBandIterator< T >::m_blkx

protected

The position in X of the current block.

Definition at line 126 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_blky

template<class T >

int te::rst::AbstractBandIterator< T >::m_blky

protected

The position in Y of the current block.

Definition at line 127 of file BandIterator.h.

Referenced by te::rst::BandIterator< T >::end(), te::rst::BandIteratorWithMask< T >::end(), te::rst::ConstBandIterator< T >::end(), te::rst::AbstractBandIterator< T >::operator!=(), and te::rst::AbstractBandIterator< T >::operator=().

◆ m_getBuff

template<class T >

te::rst::GetBufferValueFPtr te::rst::AbstractBandIterator< T >::m_getBuff

protected

A pointer to a function that helps to extract a double or complex value from a specific buffer data type (char, int16, int32, float, ...).

Definition at line 131 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_getBuffI

template<class T >

te::rst::GetBufferValueFPtr te::rst::AbstractBandIterator< T >::m_getBuffI

protected

A pointer to a function that helps to extract the imaginary part value from a specific buffer data type (cint16, cint32, cfloat, cdouble).

Definition at line 132 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_i

template<class T >

int te::rst::AbstractBandIterator< T >::m_i

protected

The actual position inside the block.

Definition at line 125 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_lastblksize

template<class T >

int te::rst::AbstractBandIterator< T >::m_lastblksize

protected

The number of pixels inside the last block.

Definition at line 128 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_nblocksx

template<class T >

int te::rst::AbstractBandIterator< T >::m_nblocksx

protected

The number of blocks in X direction.

Definition at line 123 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_nblocksy

template<class T >

int te::rst::AbstractBandIterator< T >::m_nblocksy

protected

The number of blocks in Y direction.

Definition at line 124 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_npxlsblk

template<class T >

int te::rst::AbstractBandIterator< T >::m_npxlsblk

protected

The maximum number of pixels inside the block.

Definition at line 122 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_setBuff

template<class T >

te::rst::SetBufferValueFPtr te::rst::AbstractBandIterator< T >::m_setBuff

protected

A pointer to a function that helps to insert a double or complex value into a specific buffer data type (char, int16, int32, float, ...).

Definition at line 133 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

◆ m_setBuffI

template<class T >

te::rst::SetBufferValueFPtr te::rst::AbstractBandIterator< T >::m_setBuffI

protected

A pointer to a function that helps to insert the imaginary part value into a specific buffer data type (cint16, cint32, cfloat, cdouble).

Definition at line 134 of file BandIterator.h.

Referenced by te::rst::AbstractBandIterator< T >::operator=().

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/raster/BandIterator.h
