This class implements a concrete tool to geographic coordinate picker on mouse click operation. More...

#include <PointPicker.h>

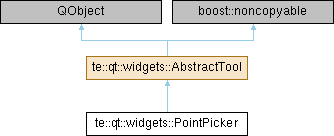

Inheritance diagram for te::qt::widgets::PointPicker:

Public Member Functions
Initializer Methods
Methods related to instantiation and destruction.
	PointPicker (MapDisplay display, const QCursor &cursor, QObject parent=0)
	It constructs a coordinate tracking tool associated with the given map display. More...

	~PointPicker ()
	Destructor. More...

void	setMouseButtons (int buttons)
	It constructs a coordinate tracking tool associated with the given map display. The mouse buttons to be listened can be set using this functions. For this, use the Qt enum MouseButton. The following sintax can be used: setMouseButtons(Qt::LeftButton \| Qt::RightButton) More...

Initializer Methods
Methods related to instantiation and destruction.
virtual void	init ()

AbstractTool Methods
Methods related with tool behavior.
int	m_mouseButtons

bool	mousePressEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object. More...

bool	mouseMoveEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object. More...

bool	mouseReleaseEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object. More...

void	pointPicked (QPointF &coordinate)

void	pointPickerMoving (QPointF &coordinate)

AbstractTool Methods
Methods related with tool behavior.
virtual bool	eventFilter (QObject watched, QEvent e)
	Filters events if this object has been installed as an event filter for the watched object. More...

virtual bool	mouseDoubleClickEvent (QMouseEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object. More...

virtual bool	keyPressEvent (QKeyEvent *e)
	This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object. More...

virtual void	setCursor (const QCursor &cursor)
	It sets the tool cursor. More...

MapDisplay *	m_display
	The map display associated with the tool. More...

QCursor	m_cursor
	The default tool cursor. More...

QCursor	m_curCursor
	The current mapdisplay cursor. More...

Detailed Description

This class implements a concrete tool to geographic coordinate picker on mouse click operation.

Definition at line 50 of file PointPicker.h.

Constructor & Destructor Documentation

◆ PointPicker()

te::qt::widgets::PointPicker::PointPicker	(	MapDisplay *	display,
		const QCursor &	cursor,
		QObject *	parent = `0`
	)

It constructs a coordinate tracking tool associated with the given map display.

Parameters

display	The map display associated with the tool.
cursor	The default tool cursor.
parent	The tool's parent.

Note: The tool will NOT take the ownership of the given pointers.

◆ ~PointPicker()

te::qt::widgets::PointPicker::~PointPicker ( )

Destructor.

Member Function Documentation

◆ eventFilter()

virtual bool te::qt::widgets::AbstractTool::eventFilter	(	QObject *	watched,
		QEvent *	e
	)

virtualinherited

Filters events if this object has been installed as an event filter for the watched object.

Parameters

watched	The watched object.
event	The last event sent to watched object.

Note: In your reimplementation of this function, if you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.; Here, the default implementation looks for QMouseEvents and call the pure virutal methods defined on AbstractTool class, e.g. mousePressEvent().

Reimplemented in te::edit::GeometriesUpdateTool, te::qt::widgets::Measure, te::qt::widgets::ZoomKeyboard, and te::qt::widgets::ZoomWheel.

◆ init()

virtual void te::qt::widgets::AbstractTool::init ( )

virtualinherited

◆ keyPressEvent()

virtual bool te::qt::widgets::AbstractTool::keyPressEvent ( QKeyEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive key press events for the watched object.

Parameters

e	The key event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented in te::edit::MoveGeometryTool, te::qt::widgets::CoordTracking, and te::qt::widgets::Measure.

◆ mouseDoubleClickEvent()

virtual bool te::qt::widgets::AbstractTool::mouseDoubleClickEvent ( QMouseEvent * e )

virtualinherited

This event handler can be reimplemented in a concrete tool class to receive mouse double click events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Note: The AbstractTool will also receive mouse press and mouse release events in addition to the double click event. It is up to the developer to ensure that the application interprets these events correctly.

Reimplemented in te::edit::AggregateAreaTool, te::edit::CreateLineTool, te::edit::CreatePointTool, te::edit::CreatePolygonTool, te::edit::SplitPolygonTool, te::edit::SubtractAreaTool, te::edit::VertexTool, te::mnt::ProfileTools, te::qt::widgets::Measure, and te::qt::widgets::PolygonAcquire.

◆ mouseMoveEvent()

bool te::qt::widgets::PointPicker::mouseMoveEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse move events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mousePressEvent()

bool te::qt::widgets::PointPicker::mousePressEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse press events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ mouseReleaseEvent()

bool te::qt::widgets::PointPicker::mouseReleaseEvent ( QMouseEvent * e )

virtual

This event handler can be reimplemented in a concrete tool class to receive mouse release events for the watched object.

Parameters

e	The mouse event.

Returns: If you want to filter the event out, i.e. stop it being handled further, return true; otherwise return false.

Reimplemented from te::qt::widgets::AbstractTool.

◆ pointPicked

void te::qt::widgets::PointPicker::pointPicked ( QPointF & coordinate )

signal

This signal is emitted when a coordinate was picked.

◆ pointPickerMoving

void te::qt::widgets::PointPicker::pointPickerMoving ( QPointF & coordinate )

signal

This signal is emitted when a mouse moving.

◆ setCursor()

virtual void te::qt::widgets::AbstractTool::setCursor ( const QCursor & cursor )

virtualinherited

It sets the tool cursor.

Parameters

cursor The cursor that will be used during the tool operation.

◆ setMouseButtons()

void te::qt::widgets::PointPicker::setMouseButtons ( int buttons )

It constructs a coordinate tracking tool associated with the given map display. The mouse buttons to be listened can be set using this functions. For this, use the Qt enum MouseButton. The following sintax can be used: setMouseButtons(Qt::LeftButton | Qt::RightButton)

Member Data Documentation

◆ m_curCursor

QCursor te::qt::widgets::AbstractTool::m_curCursor

protectedinherited

The current mapdisplay cursor.

Definition at line 175 of file AbstractTool.h.

◆ m_cursor

QCursor te::qt::widgets::AbstractTool::m_cursor

protectedinherited

The default tool cursor.

Definition at line 174 of file AbstractTool.h.

◆ m_display

MapDisplay* te::qt::widgets::AbstractTool::m_display

protectedinherited

The map display associated with the tool.

Definition at line 173 of file AbstractTool.h.

◆ m_mouseButtons

int te::qt::widgets::PointPicker::m_mouseButtons

private

Definition at line 106 of file PointPicker.h.

The documentation for this class was generated from the following file:

/home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/widgets/tools/PointPicker.h
