te::vp::AbstractOperation Class Reference

Abstract class used to define an operation. More...

#include <AbstractOperation.h>

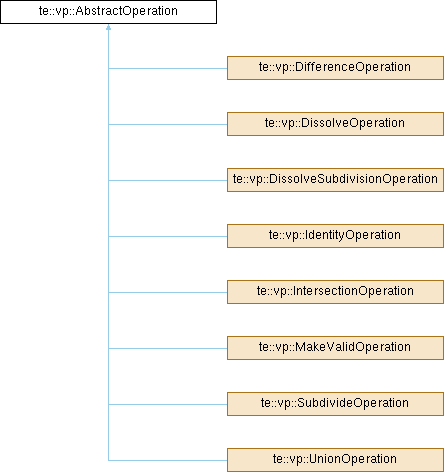

Inheritance diagram for te::vp::AbstractOperation:

Public Member Functions
void	abort ()
	Aborts the execution of the operation.
	AbstractOperation (const std::string &operationName)
	Default constructor.
virtual te::vp::Feature *	createOutputFeature (std::size_t outputIndex)
	It creates the output feature based on the given output dataaccess index.
virtual std::vector< te::vp::FeatureSet >	execute (const std::vector< te::vp::FeatureSet > &vecInput)
	It executes the operation.
virtual std::unique_ptr< te::vp::AbstractOperationCapabilities >	getCapabilities () const
	Makes all the necessaries adaptations to the input dataAccess to avoid duplicate column names.
virtual const te::da::DataSetType *	getDataSetType (std::size_t outputIndex)
	Gets the dataSetType of the 'outputIndex-th' output.
const std::string &	getName () const
	Gets the output geometry type.
te::gm::GeomType	getOutputGeometryType () const
AbstractParameters *	getParameters () const
	Gets the operation report.
OperationReport *	getReport () const
	Gets the operation name.
bool	handleOutputPropertyNamesChanges (const te::da::DataSetType *baseOutputDataSetType, const te::da::DataSetType *actualOutputDataSetType)
virtual void	initialize ()
bool	isAborted () const
	Returns TRUE if the operation has been aborted. FALSE otherwise.
bool	prepareInputData ()
bool	prepareOutputData ()
void	setOutputGeometryType (const te::gm::GeomType newType)
	Set the output geometry type.
void	setParameters (AbstractParameters *params)
	Gets the operation current parameters.
virtual	~AbstractOperation ()
	Virtual destructor.

Protected Member Functions
virtual void	addOutputColumns (te::da::DataSetType *outputDataSetType)
	Initializes the operation input.
virtual te::da::DataSetType *	createBasicOutputDataSetType (const std::string &dataSetName, int srid, te::gm::GeomType geometryType, const std::string &geometryColumnName) const
	< Creates the basic dataSetType for the output containing all the columns that are required
virtual std::vector< te::vp::FeatureSet >	executeImpl (const std::vector< te::vp::FeatureSet > &vecInput)=0
virtual bool	initializeInput ()
	Initializes the operation output.
virtual bool	initializeOutput ()
	Function that effectivelly executes the operation. It must be implemented by the concrete classes.

Private Attributes
bool	m_aborted
	Becames true if the abort function is called. Concrete classes must check for this value from time to time.
AbstractOperationImpl *	m_impl
	Holds all the attributes of the class.
std::recursive_mutex	m_mutex

Detailed Description

Abstract class used to define an operation.

Definition at line 204 of file AbstractOperation.h.

Constructor & Destructor Documentation

AbstractOperation()

te::vp::AbstractOperation::AbstractOperation

(

const std::string &

operationName

)

Default constructor.

Note

This class will take the ownership of AbstractParameters pointer

~AbstractOperation()

virtual te::vp::AbstractOperation::~AbstractOperation ( )

virtual

Virtual destructor.

Initializes the operation input and output

Member Function Documentation

abort()

void te::vp::AbstractOperation::abort

(

)

Aborts the execution of the operation.

Note

Thread-safe method (using internal mutex).

addOutputColumns()

virtual void te::vp::AbstractOperation::addOutputColumns ( te::da::DataSetType *  outputDataSetType )

protectedvirtual

Initializes the operation input.

createBasicOutputDataSetType()

virtual te::da::DataSetType * te::vp::AbstractOperation::createBasicOutputDataSetType ( const std::string &  dataSetName, int  srid, te::gm::GeomType  geometryType, const std::string &  geometryColumnName  ) const

protectedvirtual

< Creates the basic dataSetType for the output containing all the columns that are required

Reimplemented in te::vp::SubdivideOperation.

createOutputFeature()

virtual te::vp::Feature * te::vp::AbstractOperation::createOutputFeature ( std::size_t  outputIndex )

virtual

It creates the output feature based on the given output dataaccess index.

Parameters

outputIndex

The index of the output dataAccess.

execute()

virtual std::vector< te::vp::FeatureSet > te::vp::AbstractOperation::execute ( const std::vector< te::vp::FeatureSet > &  vecInput )

virtual

It executes the operation.

Parameters

input

Input vector data to be processed.

Precondition

The parameters must be valid (internal check)

Exceptions

Exception

It throws an exception if something goes wrong during the execution.

\Return The output memory data processed.

executeImpl()

virtual std::vector< te::vp::FeatureSet > te::vp::AbstractOperation::executeImpl ( const std::vector< te::vp::FeatureSet > &  vecInput )

protectedpure virtual

Implemented in te::vp::DifferenceOperation, te::vp::DissolveOperation, te::vp::DissolveSubdivisionOperation, te::vp::IntersectionOperation, te::vp::UnionOperation, te::vp::IdentityOperation, te::vp::MakeValidOperation, and te::vp::SubdivideOperation.

getCapabilities()

virtual std::unique_ptr< te::vp::AbstractOperationCapabilities > te::vp::AbstractOperation::getCapabilities ( ) const

virtual

Makes all the necessaries adaptations to the input dataAccess to avoid duplicate column names.

Reimplemented in te::vp::DissolveOperation, te::vp::DissolveSubdivisionOperation, te::vp::MakeValidOperation, and te::vp::SubdivideOperation.

getDataSetType()

virtual const te::da::DataSetType * te::vp::AbstractOperation::getDataSetType ( std::size_t  outputIndex )

virtual

Gets the dataSetType of the 'outputIndex-th' output.

Parameters

outputIndex

The index of the output dataAccess. Sets the parameters to be used by the operation

getName()

const std::string & te::vp::AbstractOperation::getName

(

)

const

Gets the output geometry type.

getOutputGeometryType()

te::gm::GeomType te::vp::AbstractOperation::getOutputGeometryType

(

)

const

getParameters()

AbstractParameters * te::vp::AbstractOperation::getParameters

(

)

const

Gets the operation report.

getReport()

OperationReport * te::vp::AbstractOperation::getReport

(

)

const

Gets the operation name.

handleOutputPropertyNamesChanges()

bool te::vp::AbstractOperation::handleOutputPropertyNamesChanges	(	const te::da::DataSetType *	baseOutputDataSetType,
		const te::da::DataSetType *	actualOutputDataSetType
	)

initialize()

virtual void te::vp::AbstractOperation::initialize ( )

virtual

Reimplemented in te::vp::IdentityOperation, and te::vp::UnionOperation.

initializeInput()

virtual bool te::vp::AbstractOperation::initializeInput ( )

protectedvirtual

Initializes the operation output.

initializeOutput()

virtual bool te::vp::AbstractOperation::initializeOutput ( )

protectedvirtual

Function that effectivelly executes the operation. It must be implemented by the concrete classes.

isAborted()

bool te::vp::AbstractOperation::isAborted

(

)

const

Returns TRUE if the operation has been aborted. FALSE otherwise.

Note

Thread-safe method (using internal mutex). Get the capabilities of the operation. Basically, operation will have 2 inputs, 1 output, and support subdivision. If it is not the case of the concrete class, this function should be overriden

prepareInputData()

bool te::vp::AbstractOperation::prepareInputData

(

)

prepareOutputData()

bool te::vp::AbstractOperation::prepareOutputData

(

)

setOutputGeometryType()

void te::vp::AbstractOperation::setOutputGeometryType

(

const te::gm::GeomType

newType

)

Set the output geometry type.

Note

Default value: te::gm::UnknownGeometryType

setParameters()

void te::vp::AbstractOperation::setParameters

(

AbstractParameters *

params

)

Gets the operation current parameters.

Member Data Documentation

m_aborted

bool te::vp::AbstractOperation::m_aborted

private

Becames true if the abort function is called. Concrete classes must check for this value from time to time.

Definition at line 310 of file AbstractOperation.h.

m_impl

AbstractOperationImpl* te::vp::AbstractOperation::m_impl

private

Holds all the attributes of the class.

Definition at line 309 of file AbstractOperation.h.

m_mutex

std::recursive_mutex te::vp::AbstractOperation::m_mutex

mutableprivate

Definition at line 311 of file AbstractOperation.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/vp/AbstractOperation.h
