te::qt::plugins::photolayer::Plugin Class Reference

#include <Plugin.h>

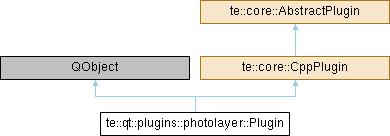

Inheritance diagram for te::qt::plugins::photolayer::Plugin:

Signals
void	triggered (te::qt::af::evt::Event *e)

Public Member Functions
const PluginInfo &	info () const
	It returns the PluginInfo of the CppPlugin.
bool	initialized () const
	It returns true or false if the CppPlugin was initialized.
	Plugin (const te::core::PluginInfo &pluginInfo)
void	shutdown ()
	This method will be called by applicatons to shutdown plugin's functionality.
void	startup ()
	This method will be called by applications to startup some plugin's functionality.
	~Plugin ()

Protected Slots
void	onActionActivated (bool)
	Slot function used when a action was selected.
void	onGetPointCoordinate (QPointF &point)
void	onToolActionActivated (bool state)
	Slot function used when a tool action was selected.
void	onToolVisibleActionActivated (bool state)
	Slot function used to set the toolbar visibility.

Protected Attributes
QAction *	m_action
	Action used to call the process.
bool	m_initialized
QMenu *	m_menu
	Photo Layer plugin menu.
PluginInfo	m_pinfo
te::qt::widgets::PointPicker *	m_pointPickerTool
QAction *	m_toolAction
	Action used to start tool.
QToolBar *	m_toolBar
	Tool Bar.
QAction *	m_toolVisibleAction
	Action used to start tool.

Detailed Description

Definition at line 54 of file Plugin.h.

Constructor & Destructor Documentation

Plugin()

te::qt::plugins::photolayer::Plugin::Plugin

(

const te::core::PluginInfo &

pluginInfo

)

~Plugin()

te::qt::plugins::photolayer::Plugin::~Plugin

(

)

Member Function Documentation

info()

const PluginInfo & te::core::CppPlugin::info ( ) const

virtualinherited

It returns the PluginInfo of the CppPlugin.

Returns

The CppPlugin information

Implements te::core::AbstractPlugin.

initialized()

bool te::core::CppPlugin::initialized ( ) const

virtualinherited

It returns true or false if the CppPlugin was initialized.

Returns

The current state of the CppPlugin

Implements te::core::AbstractPlugin.

onActionActivated

void te::qt::plugins::photolayer::Plugin::onActionActivated ( bool  )

protectedslot

Slot function used when a action was selected.

Parameters

checked

Flag used in case a toggle action.

onGetPointCoordinate

void te::qt::plugins::photolayer::Plugin::onGetPointCoordinate ( QPointF &  point )

protectedslot

onToolActionActivated

void te::qt::plugins::photolayer::Plugin::onToolActionActivated ( bool  state )

protectedslot

Slot function used when a tool action was selected.

Parameters

checked

Flag used in case a toggle action.

onToolVisibleActionActivated

void te::qt::plugins::photolayer::Plugin::onToolVisibleActionActivated ( bool  state )

protectedslot

Slot function used to set the toolbar visibility.

Parameters

checked

Flag used in case a toggle action.

shutdown()

void te::qt::plugins::photolayer::Plugin::shutdown ( )

virtual

This method will be called by applicatons to shutdown plugin's functionality.

Exceptions

PluginShutdownException

It may throws an exception.

Implements te::core::AbstractPlugin.

startup()

void te::qt::plugins::photolayer::Plugin::startup ( )

virtual

This method will be called by applications to startup some plugin's functionality.

Exceptions

PluginStartupException

It may throws an exception.

Implements te::core::AbstractPlugin.

triggered

void te::qt::plugins::photolayer::Plugin::triggered ( te::qt::af::evt::Event *  e )

signal

Member Data Documentation

m_action

QAction* te::qt::plugins::photolayer::Plugin::m_action

protected

Action used to call the process.

Definition at line 100 of file Plugin.h.

m_initialized

bool te::core::CppPlugin::m_initialized

protectedinherited

Definition at line 73 of file CppPlugin.h.

m_menu

QMenu* te::qt::plugins::photolayer::Plugin::m_menu

protected

Photo Layer plugin menu.

Definition at line 99 of file Plugin.h.

m_pinfo

PluginInfo te::core::CppPlugin::m_pinfo

protectedinherited

Definition at line 72 of file CppPlugin.h.

m_pointPickerTool

te::qt::widgets::PointPicker* te::qt::plugins::photolayer::Plugin::m_pointPickerTool

protected

Definition at line 106 of file Plugin.h.

m_toolAction

QAction* te::qt::plugins::photolayer::Plugin::m_toolAction

protected

Action used to start tool.

Definition at line 102 of file Plugin.h.

m_toolBar

QToolBar* te::qt::plugins::photolayer::Plugin::m_toolBar

protected

Tool Bar.

Definition at line 104 of file Plugin.h.

m_toolVisibleAction

QAction* te::qt::plugins::photolayer::Plugin::m_toolVisibleAction

protected

Action used to start tool.

Definition at line 101 of file Plugin.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/plugins/photolayer/Plugin.h
