te::xerces::ReaderFactory Class Reference

This is the concrete factory for XML reader built on top of Xerces-C++ parser. More...

#include <ReaderFactory.h>

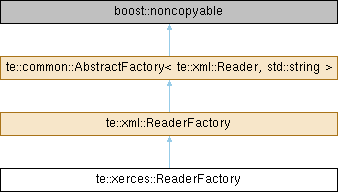

Inheritance diagram for te::xerces::ReaderFactory:

Public Types
typedef FactoryDictionary< AbstractFactory< te::xml::Reader, std::string, std::less< std::string > >, std::string, std::less< std::string > >	dictionary_type
typedef AbstractFactory	factory_type

Public Member Functions
const std::string &	getKey () const
	It returns the factory key associated to the concreate factory.
	~ReaderFactory ()
	Virtual destructor.

Static Public Member Functions
static void	finalize ()
	It finalizes the factory: it will be destroyed and will be unregistered from the abstract factory ReaderFactory.
static const factory_type *	find (const std::string &factoryKey)
static dictionary_type &	getDictionary ()
	It returns a reference to the internal dictionary of concrete factories.
static void	initialize ()
	It initializes the factory: it will be registered in the abstract factory ReaderFactory.
static te::xml::Reader *	make ()
	It creates a new XML reader using the dafault implementation.
static te::xml::Reader *	make (const std::string &readerType)
	It creates a new XML reader.
static void	setDefaultReader (const std::string &readerType)
	It sets the default driver used to create the XML reader objects.

Protected Member Functions
te::xml::Reader *	build ()
	Concrete factories (derived from this one) must implement this method in order to create objects.
	ReaderFactory ()

Protected Attributes
std::string	m_factoryKey
	The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Static Private Attributes
static std::string	sm_defaultReaderType
	The type of the reader to be created if no type is informed.
static ReaderFactory *	sm_factory
	A pointer to the global Xerces XML Reader factory.

Friends
class	Module

Detailed Description

This is the concrete factory for XML reader built on top of Xerces-C++ parser.

See also

te::xml::ReaderFactory

Definition at line 47 of file ReaderFactory.h.

Member Typedef Documentation

dictionary_type

typedef FactoryDictionary<AbstractFactory<te::xml::Reader , std::string , std::less<std::string > >, std::string , std::less<std::string > > te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::dictionary_type

inherited

Definition at line 73 of file AbstractFactory.h.

factory_type

typedef AbstractFactory te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::factory_type

inherited

Definition at line 77 of file AbstractFactory.h.

Constructor & Destructor Documentation

~ReaderFactory()

te::xerces::ReaderFactory::~ReaderFactory ( )

virtual

Virtual destructor.

Note

It will automatically unregister the factory from the dictionary.

Reimplemented from te::xml::ReaderFactory.

ReaderFactory()

te::xerces::ReaderFactory::ReaderFactory ( )

protected

Member Function Documentation

build()

te::xml::Reader * te::xerces::ReaderFactory::build ( )

protectedvirtual

Concrete factories (derived from this one) must implement this method in order to create objects.

Returns

It returns an object created by the concrete factory.

Implements te::common::AbstractFactory< te::xml::Reader, std::string >.

finalize()

static void te::xerces::ReaderFactory::finalize ( )

static

It finalizes the factory: it will be destroyed and will be unregistered from the abstract factory ReaderFactory.

find()

const AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::factory_type * te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::find ( const std::string &  factoryKey )

inlinestaticinherited

Definition at line 108 of file AbstractFactory.h.

getDictionary()

AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::dictionary_type & te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::getDictionary

inlinestaticinherited

It returns a reference to the internal dictionary of concrete factories.

The dictionary is a singleton.

Returns

A reference to the internal dictionary.

Definition at line 106 of file AbstractFactory.h.

getKey()

const std::string & te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::getKey

inlineinherited

It returns the factory key associated to the concreate factory.

Returns

The factory key associated to the concreate factory.

Definition at line 84 of file AbstractFactory.h.

initialize()

static void te::xerces::ReaderFactory::initialize ( )

static

It initializes the factory: it will be registered in the abstract factory ReaderFactory.

make() [1/2]

static te::xml::Reader * te::xml::ReaderFactory::make ( )

staticinherited

It creates a new XML reader using the dafault implementation.

Returns

A new XML reader using the dafault implementation.

make() [2/2]

static te::xml::Reader * te::xml::ReaderFactory::make ( const std::string &  readerType )

staticinherited

It creates a new XML reader.

Parameters

readerType

The type of XML reader to be created.

Returns

A new XML reader.

setDefaultReader()

static void te::xml::ReaderFactory::setDefaultReader ( const std::string &  readerType )

staticinherited

It sets the default driver used to create the XML reader objects.

Parameters

readerType

The default driver name for creating XML reader objects.

Friends And Related Symbol Documentation

Module

friend class Module

friend

Definition at line 69 of file ReaderFactory.h.

Member Data Documentation

m_factoryKey

std::string te::common::AbstractFactory< te::xml::Reader , std::string , std::less<std::string > >::m_factoryKey

protectedinherited

The key that identifies the concrete factory: it will be used for unregistering the factory during destruction.

Definition at line 136 of file AbstractFactory.h.

sm_defaultReaderType

std::string te::xml::ReaderFactory::sm_defaultReaderType

staticprivateinherited

The type of the reader to be created if no type is informed.

Definition at line 108 of file ReaderFactory.h.

sm_factory

ReaderFactory* te::xerces::ReaderFactory::sm_factory

staticprivate

A pointer to the global Xerces XML Reader factory.

Definition at line 67 of file ReaderFactory.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/xerces/ReaderFactory.h
