te::qt::plugins::attributefill::Plugin Class Reference

#include <Plugin.h>

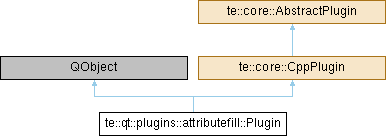

Inheritance diagram for te::qt::plugins::attributefill::Plugin:

Signals
void	triggered (te::qt::af::evt::Event *e)

Public Member Functions
const PluginInfo &	info () const
	It returns the PluginInfo of the CppPlugin.
bool	initialized () const
	It returns true or false if the CppPlugin was initialized.
	Plugin (const te::core::PluginInfo &pluginInfo)
void	shutdown ()
	This method will be called by applicatons to shutdown plugin's functionality.
void	startup ()
	This method will be called by applications to startup some plugin's functionality.
	~Plugin ()

Protected Member Functions
void	registerActions ()
	Function used to register all attributefill actions.
void	unRegisterActions ()
	Function used to unregister all attributefill actions.

Protected Attributes
QMenu *	m_attributefillMenu
	Attribute Fill Sub Menu registered.
bool	m_initialized
PluginInfo	m_pinfo
QAction *	m_popupAction
	Attribute Fill pop up action registered.
RasterToVectorAction *	m_rasterToVector
	RasterToVector Attribute Fill Action.
VectorToRasterAction *	m_vectorToRaster
	VectorToRaster Attribute Fill Action.
VectorToVectorAction *	m_vectorToVector
	VectorToVector Attribute Fill Action.

Detailed Description

Definition at line 56 of file Plugin.h.

Constructor & Destructor Documentation

Plugin()

te::qt::plugins::attributefill::Plugin::Plugin

(

const te::core::PluginInfo &

pluginInfo

)

~Plugin()

te::qt::plugins::attributefill::Plugin::~Plugin

(

)

Member Function Documentation

info()

const PluginInfo & te::core::CppPlugin::info ( ) const

virtualinherited

It returns the PluginInfo of the CppPlugin.

Returns

The CppPlugin information

Implements te::core::AbstractPlugin.

initialized()

bool te::core::CppPlugin::initialized ( ) const

virtualinherited

It returns true or false if the CppPlugin was initialized.

Returns

The current state of the CppPlugin

Implements te::core::AbstractPlugin.

registerActions()

void te::qt::plugins::attributefill::Plugin::registerActions ( )

protected

Function used to register all attributefill actions.

shutdown()

void te::qt::plugins::attributefill::Plugin::shutdown ( )

virtual

This method will be called by applicatons to shutdown plugin's functionality.

Exceptions

PluginShutdownException

It may throws an exception.

Implements te::core::AbstractPlugin.

startup()

void te::qt::plugins::attributefill::Plugin::startup ( )

virtual

This method will be called by applications to startup some plugin's functionality.

Exceptions

PluginStartupException

It may throws an exception.

Implements te::core::AbstractPlugin.

triggered

void te::qt::plugins::attributefill::Plugin::triggered ( te::qt::af::evt::Event *  e )

signal

unRegisterActions()

void te::qt::plugins::attributefill::Plugin::unRegisterActions ( )

protected

Function used to unregister all attributefill actions.

Member Data Documentation

m_attributefillMenu

QMenu* te::qt::plugins::attributefill::Plugin::m_attributefillMenu

protected

Attribute Fill Sub Menu registered.

Definition at line 90 of file Plugin.h.

m_initialized

bool te::core::CppPlugin::m_initialized

protectedinherited

Definition at line 73 of file CppPlugin.h.

m_pinfo

PluginInfo te::core::CppPlugin::m_pinfo

protectedinherited

Definition at line 72 of file CppPlugin.h.

m_popupAction

QAction* te::qt::plugins::attributefill::Plugin::m_popupAction

protected

Attribute Fill pop up action registered.

Definition at line 91 of file Plugin.h.

m_rasterToVector

RasterToVectorAction* te::qt::plugins::attributefill::Plugin::m_rasterToVector

protected

RasterToVector Attribute Fill Action.

Definition at line 93 of file Plugin.h.

m_vectorToRaster

VectorToRasterAction* te::qt::plugins::attributefill::Plugin::m_vectorToRaster

protected

VectorToRaster Attribute Fill Action.

Definition at line 94 of file Plugin.h.

m_vectorToVector

VectorToVectorAction* te::qt::plugins::attributefill::Plugin::m_vectorToVector

protected

VectorToVector Attribute Fill Action.

Definition at line 95 of file Plugin.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/plugins/attributefill/Plugin.h
