te::qt::plugins::addressgeocoding::Plugin Class Reference

#include <Plugin.h>

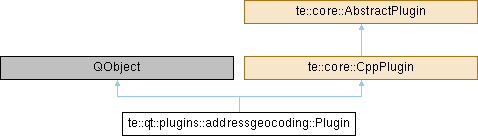

Inheritance diagram for te::qt::plugins::addressgeocoding::Plugin:

Signals
void	triggered (te::qt::af::evt::Event *e)

Public Member Functions
const PluginInfo &	info () const
	It returns the PluginInfo of the CppPlugin.
bool	initialized () const
	It returns true or false if the CppPlugin was initialized.
	Plugin (const te::core::PluginInfo &pluginInfo)
void	shutdown ()
	This method will be called by applicatons to shutdown plugin's functionality.
void	startup ()
	This method will be called by applications to startup some plugin's functionality.
	~Plugin ()

Protected Slots
void	onActionActivated (bool checked)
	Slot function used when a action was selected.

Protected Member Functions
std::list< te::map::AbstractLayerPtr >	getLayers ()
	Get the list of layers from app.
void	unRegisterActions ()
	Function used to unregister all addressgeocoding actions.

Protected Attributes
QAction *	m_action
	Address Geocoding Action.
bool	m_initialized
PluginInfo	m_pinfo

Detailed Description

Definition at line 55 of file Plugin.h.

Constructor & Destructor Documentation

Plugin()

te::qt::plugins::addressgeocoding::Plugin::Plugin

(

const te::core::PluginInfo &

pluginInfo

)

~Plugin()

te::qt::plugins::addressgeocoding::Plugin::~Plugin

(

)

Member Function Documentation

getLayers()

std::list< te::map::AbstractLayerPtr > te::qt::plugins::addressgeocoding::Plugin::getLayers ( )

protected

Get the list of layers from app.

Returns

The list pf layer auto pointers

info()

const PluginInfo & te::core::CppPlugin::info ( ) const

virtualinherited

It returns the PluginInfo of the CppPlugin.

Returns

The CppPlugin information

Implements te::core::AbstractPlugin.

initialized()

bool te::core::CppPlugin::initialized ( ) const

virtualinherited

It returns true or false if the CppPlugin was initialized.

Returns

The current state of the CppPlugin

Implements te::core::AbstractPlugin.

onActionActivated

void te::qt::plugins::addressgeocoding::Plugin::onActionActivated ( bool  checked )

protectedslot

Slot function used when a action was selected.

Parameters

checked

Flag used in case a toggle action.

shutdown()

void te::qt::plugins::addressgeocoding::Plugin::shutdown ( )

virtual

This method will be called by applicatons to shutdown plugin's functionality.

Exceptions

PluginShutdownException

It may throws an exception.

Implements te::core::AbstractPlugin.

startup()

void te::qt::plugins::addressgeocoding::Plugin::startup ( )

virtual

This method will be called by applications to startup some plugin's functionality.

Exceptions

PluginStartupException

It may throws an exception.

Implements te::core::AbstractPlugin.

triggered

void te::qt::plugins::addressgeocoding::Plugin::triggered ( te::qt::af::evt::Event *  e )

signal

unRegisterActions()

void te::qt::plugins::addressgeocoding::Plugin::unRegisterActions ( )

protected

Function used to unregister all addressgeocoding actions.

Member Data Documentation

m_action

QAction* te::qt::plugins::addressgeocoding::Plugin::m_action

protected

Address Geocoding Action.

Definition at line 99 of file Plugin.h.

m_initialized

bool te::core::CppPlugin::m_initialized

protectedinherited

Definition at line 73 of file CppPlugin.h.

m_pinfo

PluginInfo te::core::CppPlugin::m_pinfo

protectedinherited

Definition at line 72 of file CppPlugin.h.

---

The documentation for this class was generated from the following file:

• /home/castejon/castejon_files/develop/terralib5/git_release/src/terralib/qt/plugins/addressgeocoding/Plugin.h
